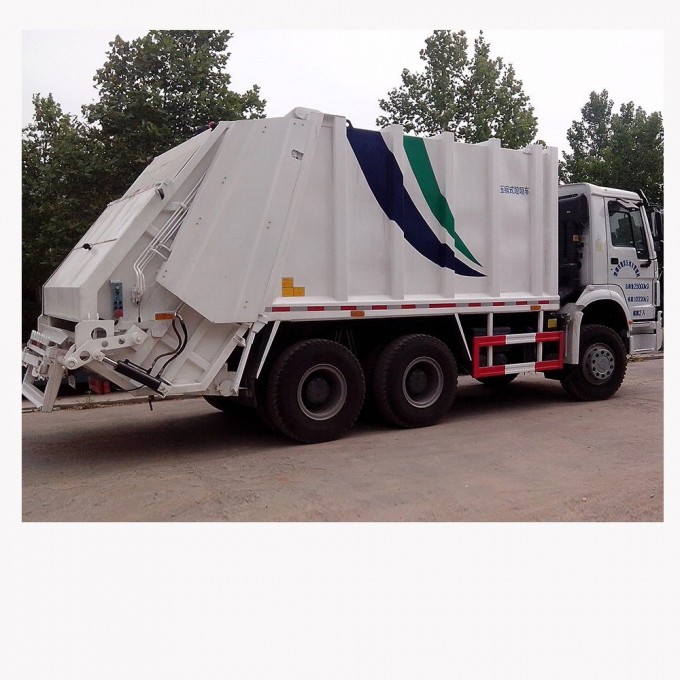

HOWO 6*4 16cbm - 18cbm Rear Load Garbage Truck

HOWO 6*4 16CBM - 18CBM rear load garbage truck

Garbage Compactor is the machinery of choice for door to door collection of waste. The collected waste is simultaneously compacted and eventually transported to the dumping site.

Compactors have multiple benefits over conventional waste trolleys namely:
Waste is covered and there is no chance of "spillage" of waste during transportation.
Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving.
Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate.
Two men are required to perform the entire functionality of the compactor namely, driver and operator.
Hubei Weiyumanufactures compactors with various capacities depending on the type of truck chassis and user requirement.
Chassic
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , ISUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks



Technical date :

Model			WU487	WU287	WU244	WU487	WU148	WNI184	WU148	WNI68
Body capacity (m3)			4.3	5.2	6.0	8.6	10.2	12.0	15.3	20.0
Hopper capacity (m3)			0.6		0.7	1.1		1.0 (1.1)	2.2
Plate thickness (mm)	Body	Roof*1	2.1						2.3
		Side*2	2.7					2.3	2.7
		Floor*1	2.7						3.2
	Discharge plate*1		2.1						2.1
	Hopper	Bottom*3	6.0						8.0
		Side(upper)*3	4.5						4.5
		Side(lower)*3	4.5						4.5
	Press plate*3		4.5						4.5
Loading time [one cycle] (sec)			10-11			13-20			26-28
Gate width (mm)			1,430		1,680	1,700		1,600	2,000
Sewage Scatter Prevention Rubber			Equipped
Hopper Alarm (rising/descending)			Equipped
Discharge time (sec)			10-20		10-25	15-25			45	55
Sewage Tank (L)			80		95	120		80	140
Anti-rust paint			Electro-Deposition paint					Anti-rust paint
Emergency Stop Button			Hopper Both Sides

The above mentioned figures are approximate.

Optional equipments are included in these photographs

Specifications and dimensions are subject to change without notice.

Material : Anti-corrosion Steel

Material : Anti-corrosion Steel or High-tensile Steel

Material : High-tensile SteelDifferent loading type :
