| General data | Overall length (mm) | 7245 | Engine | Model | YC4D130-30 | YC4D130-20 |
| Overall width (mm) | 2350 | Maker | YUCHAI |
| Overall height (mm) | 2880(3030) | Engine location / fuel | At rear / diesel oil |
| Inside height (mm) | 1880 | Engine type | 4-cylinder in-line with water cooling, turbo-charging and intercooling |
| Axle diatance (mm) | 4050 | Maximum output (kw) | 95 |
| Front overhang / Rear overhang (mm) | 960/2235 | Maximum torque (N.m) | 470 |
| Angle of approach / departure (º) | 20/11 | Displacement (ml) | 4212 |
| First step (mm) | 380 | Emission | Euro III | Euro II |
| G.V.W (kg) | 7500 |
|
|

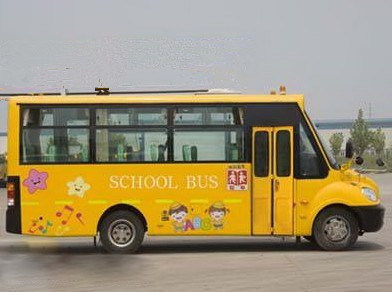

| Rated person / seats (including driver) | Bus for primary school students | 25+1(2+2) | 36+1(2+3) |
| Bus for primary and middle school students | 25+1(2+2) | 36+1(2+3) |
| Maximum driving speed (km/h) | 90(Nylon Tyre); 100(Radial Tyre) |
|
| Item | Standard Configuration | Option |
| Chassis | Maker | SINOTRUK |
|
| Gearbox | 5-speed manual operated mechanical gearbox |
|
| Clutch | Ø300mm clutch |
|
| Front axle | 2.2Tintegral front axle |
|
| Rear axle | 3.5T rear axle, single reduction |
|
| Suspension | Muotileaved spring 8/11, Chinese shock absorber |
|
| Steering | Integral power steering gear |
|
| Braking | Air controlled dual-cycle service brakes, energy storage spring parking brakes |
|
| Fuel tank | 90L |
|
| Tire | 7.50-16(Speed limitation 90) | 7.50R16 |
| Battery/generator | 120A.H/55A | 120A.H/90A |
| Other | Clutch Booster, snuff brake, dryer | Automatic slack adjuster |
| Body | frame | Rectangular hollow sections welding |
|
| Interior | Ordinary interior | Moulded interior |
| Door and pump | Pneumatic folding door,driver door | Emergency door(side or rear) |
| Window / windscreen | Sliding window, full view doubling front windscreen, rear toughened glass | Closed side windows |
| Rear view system | Manual operated rear-view mirror,inner mirror | Blind spot mirror, Reversing/getting off monitoring system |
| Air conditioner | Driver fan | Engine-drivenA/C 14000Kcal/h |
| Heating system | Water heating defrost | Independent heating |
| Audio visual system | Radio with MP3 | Monitoring system for reversing and getting off |
| Wiper | Bidirectional opposite shaving wiper (with washers) |
|
| Seats | Nonadjustable passenger seats(without handrail) 25+1 seats,2+2 | Seat belts |
| Paint | Plain coloured paint | metallic paint |
| Other | One scuttles without ventilator, half sun visor,non-slip flooring, STOP sign | Automatic fire extinguisher for engine cabin, electronic clock, curtains, one scuttle with ventilator, tire cover, sun visor, aluminium decorative pattern floor |
