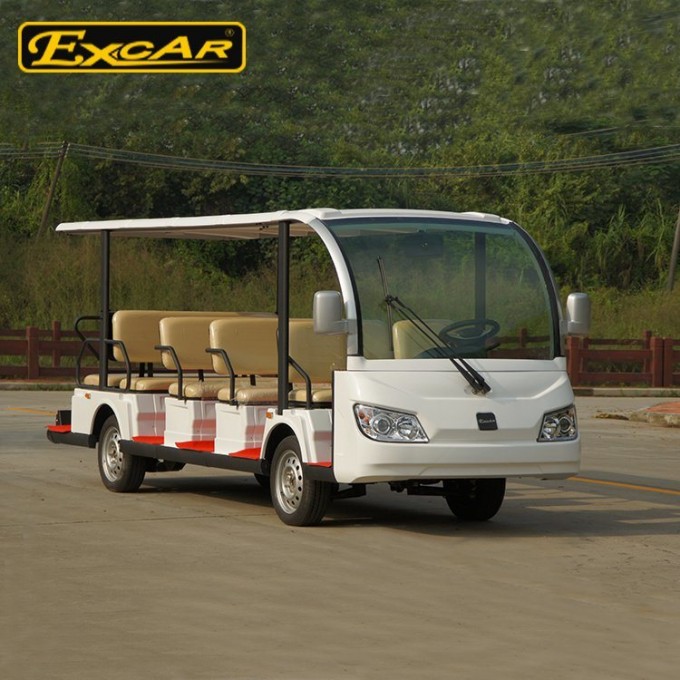

14 Seats 72V Trojan Electric Sightseeing Car/bus
Product Des
cription
| Item | Description |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited
DC motor 48V 3.7kw | ADC brand Separately excited
AC motor 48V 3kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle
with gear ration 1:12 | Italian GRAZIANO axle
with gear ration 1:16 |
| Charger | High Frequency onboard charger
48V/17A regulator | High Frequency onboard charger
48V/17A regulator |
Performance
| Item | Description |
| system | DC system | AC system |
| Passenger Capacity | 14 | 14 |
| Climbing capacity(full load) | 30% | 35% |
| Max. forward speed | 23km/h | 45km/h |
| Endurance mileage | 70-90km | 80-90km |
| Charging time | 8-10 hours | 8-10 hours |
| Max. loading weight | 360kgs | 360kgs |
| Min. turning radius | 2.9m | 2.9m |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m |
* 1) ba
sed on the test conditions: 20km/h speed, flat and straight co
ncrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
* 2) Range will vary depending on temperature, grade, payload and driving style.
Dimensions
| Item | Description |
| Overall dimensions (L x W x H) | 5300x1500x2000mm |
| Ground clearance | 150mm |
| Wheelbase | 2850mm |
| Front wheel tread (mm) | 1210mm |
| Rear wheel tread (mm) | 1200mm |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Body and f
rame
| Item | Description |
| frame & Chassis | Aluminum alloy beam, bended |
| Body | PP engineering plastic front and rear body cover, injected |
| Roof | Glass fiber reinforced plastic |
| Windshield | Organic glass (PMMA), one-piece or two pieces |
| Roof supports | Imbedding black coating steel tube in the plastic support |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic |
| Floor mat | Anti-skidding rubber |
| Rear basket | Plastic |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic material, battery power indicator, ignition key on it |
| Beverage holders | 4 pcs cups holders, 2 pcs for each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
Option Accessories
To increase the sales value of our golf cart, we also provide many optio
nal accessories.
| Item | Option description | Item | Option description |
| 1 | E-key | 11 | 2-point seatbelt |
| 2 | Hinged windshield | 12 | Battery water refill system |
| 3 | Laminated windshield with wiper | 13 | Digital meter |
| 4 | Steel brush guard | 14 | EM brake |
| 5 | Front steel basket | 15 | Four wheel disc brake |
| 6 | Inner rear view mirror | 16 | Carlisle 205/50-10tyre with10inch wheel |
| 7 | Side rear view mirror | 17 | Ice box |
| 8 | Enclosure | 18 | Sand bottle |
| 9 | Sunshine cover | 19 | Sand rake |
| 10 | Golf bag cover | 20 | Ball washer |
Packing & Shipping
Excar golf cart will be packed in steel crate
| Model | Dimension(mm) | 20" container | 40" container |
| A1H2/CC | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| 3400*1200*1900 | 3400*1200*1200 | 2 units | 4units | 6units | 12units |
a
bout US
Do
ngguan Excellence Golf &Sightseeing Car Co., Ltd. (Excar) is ahigh technological company with our own research and development department. Our factory is located in the Liuwuxiang Industry Zone, at the east of So
ngshang Lake Road and the north of Guanshen Highway. It enjoys superior location and co
nvenient transportation.
Excar focuses on researching, developing and manufacturing electric cars in the field of four-wheel electric cars. For golf cars and sightseeing cars, we have great co
nfidence that we could make it better and better to meet the needs of our clients.
Refer to the specification standards of im
ported electric cars, we designed and created anew series of golf cars named Discovery for Chinese golf course especially.
Excar is devoted to before and after sale services and setting up service centers to support our customers. One of our duties is to supply exchangeable parts and technical support for golf cars of E-Z-GO and club cars. We are always ready to serve every golf course sincerely.
