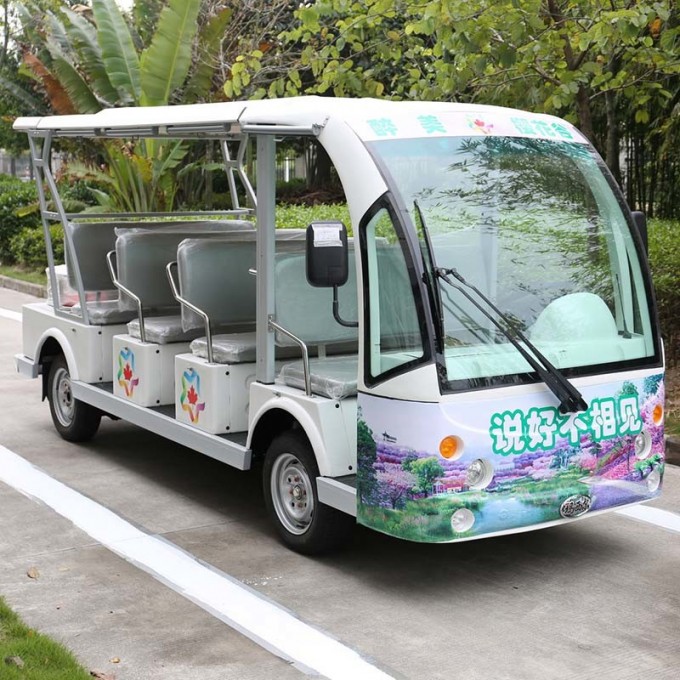

China Factory 11 Seats Mini Electrical Tourist Bus (DN-11)

China factory price offer 11 seats mini electrical tourist bus (DN-11)

China factory price offer 11 seats mini electrical tourist bus (DN-11) features:
1. Standard color: White;arractive design and powerful in appearance , with strong carrying capacity and lower noise;
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure;
3. Small turning radius; and smart steering system; Whole style steel rear axle;
4. Can be easy modified to transportation vechicles;
5. CE certificate for whole carts;
6. import main parts:US batteries( From USA) and Curtis controller(From USA).Delta-Q chargers(From Canada);
7. Four wheels hydraulic braking system and independent parking brake.

China factory price offer 11 seats mini electrical tourist bus (DN-11)specifications:

Model	DN-8F/8F+3	DN-11
Passenger Capacity	8/11	11
Power supply
Battery	6V battery*8pcs	6V216AH*12
Motor	48V4KW DC	DC72V/5kw,DC
Controller	48V500A DC Series	72V400A(curtis 1205)
Charger	48V25A full automatic high frequency charger	48V25A full automatic high frequency charger
Performance
Max. Speed	28km/h	28km/h
Max.travelling range	60-80km	60-80km
Climbing capactity	25%	25%
Brake Range	6.5m	6.5m
Minmum turning radius	5.5m	6.5m
Gross Weight	950kg	1250kg
Carrying capacity	700kg	1000kg
Chassis
Steering	"Rack&Pinion"Steering	"Rack&Pinion"Steering
brakes	Four wheels hydraulic braking system and independent parking brake	Four wheels hydraulic braking system and independent parking brake
tire	165/70R13	165/70R13
Ground clearance	130mm	130mm
Overall dimension(L*w*h)	4200*1520*2025mm	4650*1520*2700mm
Qty per container	2pcs/20FT 4pcs/40FT 4pcs/40HQ	2pcs/20FT 4pcs/40FT 4pcs/40HQ
Standard parts	Front and rear lights, Rear view mirrors, Speed meter, Wiper, DC system	Front and rear lights, Rear view mirrors, Speed meter, Wiper, DC system
Optional parts	AC system, Loud speaker, CD player, Weather enclosure, Side sunshade curtain, 3 points seat belt for driver, Alloy wheels, Front disc brake, Power assisted steering system, Trojan Battery	AC system, Loud speaker, CD player, Weather enclosure, Side sunshade curtain, 3 points seat belt for driver, Alloy wheels, Front disc brake, Power assisted steering system, Trojan Battery

China factory price offer 11 seats mini electrical tourist bus (DN-11)
