Detailed Description
Good quality
anticorrosion paint
durable spare parts
| Specifications |
| Model | JNQ6601 |
| DIMENSION & WEIGHT |
| Overall dime | Length (mm) | 5990 |
| Width (mm) | 2040 |
| Height (mm) | 2600 |
| Wheel base (mm) | 3308 |
| Overhang (mm) (Front / rear) | 1150/1535 |
| Tread (mm) (Front / rear) | 1580/1830 |
| Ground clearance (mm) | 185 |
| Approach& departure angle (°) | 12/21 |
| Curb vehicle weight (kg) | 3200 |
| Gross vehicle weight (kg) | 4710 |
| Seating capacity (person) | 22 |
| Fuel tank (L) | 80 |
| Fuel consumption (L/100km) | 18 |
| Max. gradeability (%) | 30 |
| Min. turning radius (m) | 8 |
| Tires | Quantity | 6+1 |
| Model | 6.50-16 |
| Air conditioning capacity | 10000kcal/h |
| ENGINE |
| Model | CY4102BZLQ |
| Type | 4-cylinder, in line, water-cooled, direct injection, diesel, turbocharged, inter-cooling |
| Bore & stroke (mm) | 102×118 |
| Displacement (cc) | 3856 |
| Max. power (Hp/rpm) | 120 Hp/2800rpm |
| Max. torque (Nm/rpm) | 343/1400 |
| DRIVE TRAIN |
| Clutch | Hydraulic, Single plate, dry type diaphragm spring |
| Clutch disc diameter (mm) | φ330 |
| Gearbox | Model | DF5S300 |
| Type | 5 speed manual |
| Gear ratio | 4.766/2.534/1.509/1/0.764/ R4.575 |
| Final reduction ratio | 5.375 |
| Steering system | Integrated, power steering |
| CHASSIS |
| frame | Integrated |
| Front axle | Type | I beam section |
| Loading capacity | 1710 |
| Rear axle | Type | Final reduction, double curve gear |
| Loading capacity | 3000 |
| Suspension, front/rear | Leaf springs |
| Shock absorber, front/rear | 11/10 |
| Brake system | Service brake | Dual circuits air brake |
| Parking brake | Energy-storage spring type |
| Assistant brake | Exhaust brake (Optional) |
| Electrical system |
| Battery | 12V 20AH×2 |
| Alternator | 24V 100A |
| Body and interior |
Door |
One driver door, one folding passenger door |
| Window and glasses | Slide window, the front windshield is laminated glass, others are toughened glass, safety top window is optional |
| Seats type | Cloth seats |
| Body construction | metal semi-integral type |
|
|
| |
|
Introductions
This coaster model bus is our hot seller,which is in great demand in Africa,South America and South Asia.It is practical and With good quality.
Expect your inquiry!

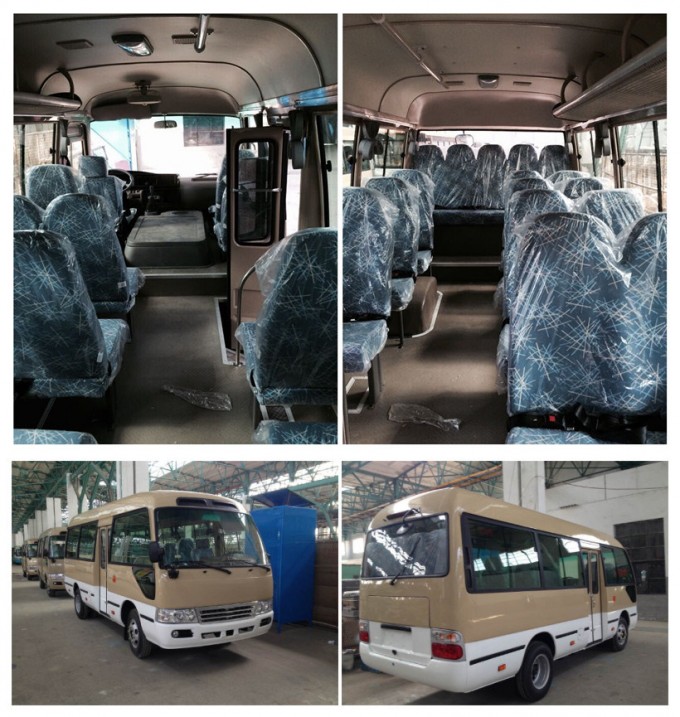

Product Image
