Detailed Description
China 8.4 meters van bus with 35-39 seats
Detailed information:
| Item | SLG6840C3E |
| Dimension | LXWXH (Mm) | 8400x2450x3350 |
| Tread F (MM) | 1950 |
| Tread R (MM) | 1800 |
| Wheelbase (Mm) | 4000 |
| Weight | Total Mass (Kg) | 6900 |
| Performance | Min. Vehicle Turning Circle (M) | 16512 |
| Max. Speed (Km/H) | 90 |
| Angle (App/Dep) | 13/10 |
| Seat Capacity | 35 seats (including driver) |
| framework | Straight Beam |
| Engine | Model | Front YC4E150-20 |
| Type | 4 Cylinder In-Line |
| Rated-Power (kw/r/min) | 110 KW (150HP) |
| Max. Torque (N.M) | 300 |
| Emission Standard | Diesel; Euro 2 |
| Clutch | Type | Single Plate Dry Clutch |
| Clutch Boost | With Pump |
| Transmission | Model | DF6S650 |
| Max. Torque | 650 |
| Shifts | 6 speed manual |
| Control Systems | flexible shaft |
| Front Axle | 3.9T |
| Rear Axle | 6.5T |
| Braking System | Steering | Power Steering |
| Service Brake | Dual-Circuit Air Braking System |
| Parking Brake | Diaphragm Spring Brake |
| F/R Braking Dia. | Ф400 |
| F/R Braking Shoe Width | 130/155 |
| Suspension Style | Steel leaf spring |
| Tyre | 8.25-20 (one spare tyres) |
| Oil Tank Capacity | 135L |
Standard configuration
| Items | Name | Specification |
| 1 | Front windscreen | Fixed, laminated glass, |
| 2 | Rear windscreen | Fixed, toughened glass |
| 3 | Instrument board | Whole sealed |
| 4 | Inner decoration | Plastics |
| 5 | Rearview mirror | Pole type |
| 6 | Inside mirror | Standard |
| 7 | Passenger door | Pneumatic out swing door |
| 8 | Side window | Whole sliding |
| 9 | Driver seat | Vinyl front/ rear adjustable driving seat |
| 10 | Passenger seat | Vinyl passenger seat with armrest |
| 11 | Clearstory | 1unit |
| 12 | Handrail | Door handrail |
| 13 | Floor board | Bamboo and rubber flower |
| 14 | Rain wiper | Opposite |
| 16 | Radio | Am/fm radio |
| 17 | Froth | Front, rear, top and side (10 mm thick) |
| 18 | Antisepsis grade | Superfine |
| 20 | Safety exit | Yes |
| 22 | Driver door | Yes |
| 23 | Engine cover | Yes |
| 24 | Rear luggage box | Yes |
| 25 | Front defrost | Yes |
| 26 | Air conditioner | Optional (+ USD 3100) |
| 27 | TV | Optional (+ USD 500) |
| 28 | CUMMINS EQB160-20 | Optional (+ USD 400) |
| 29 | 8.25R20 radial tyres | Optional (+ USD 600) |

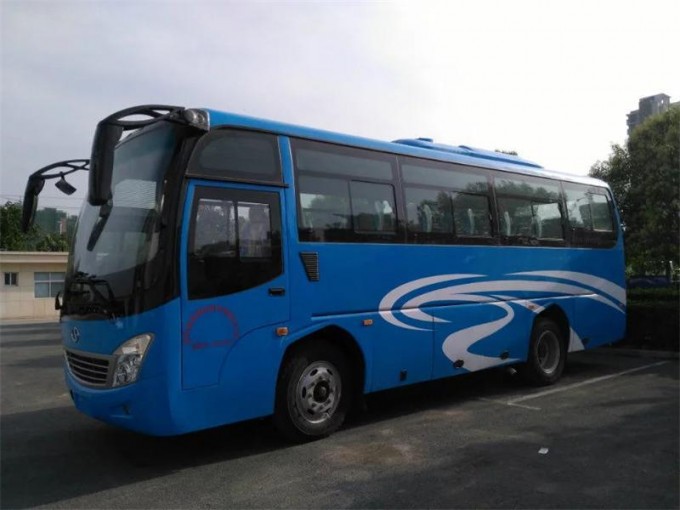

Pictures for reference
