Detailed Description

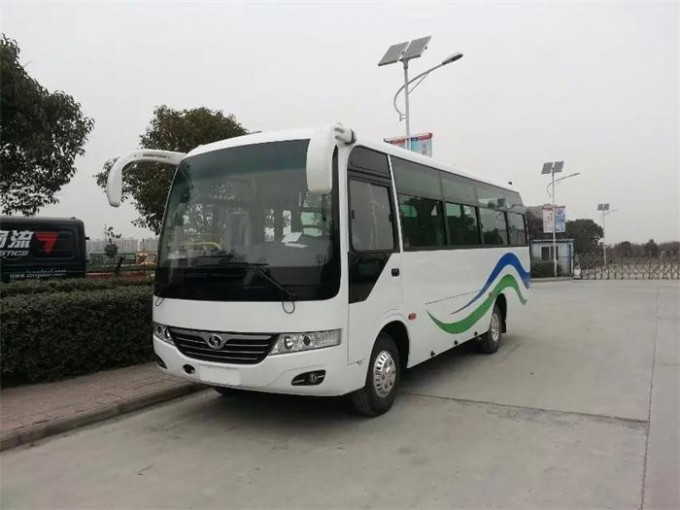

Left Hand Drive Diesel Engine 30 Seats Bus with Euro3
| Item | SLG6720C3E, LHD |
| Dimension | LXWXH (Mm) | 7220x2240x2840 |
| Tread F (MM) | 1750 |
| Tread R (MM) | 1602 |
| Wheelbase (Mm) | 3650 |
| Weight | Total Mass (Kg) | 7300 |
| Performance | Min. Vehicle Turning Circle (M) | 11 |
| Max. Speed (Km/H) | 100 |
| Angle (App/Dep) | 13/10 |
| Seat Capacity | 30 seats (including driver) |
| framework | Straight Beam |
| Engine | Model | YC4D130-30 |
| Type | 4 Cylinder In-Line |
| Rated-Power (kw/r/min) | 96KW |
| Max. Torque (N.M) | 340 |
| Emission Standard | Euro 2 |
| Fuel Type | Diesel |
| Clutch | Type | Single Plate Dry Clutch |
| Clutch Boost | With Pump |
| Transmission | Model | DF5S550 |
| Max. Torque | 420 |
| Shifts | 5 speed manual |
| Control Systems | flexible shaft |
| Front Axle | 2.7T |
| Rear Axle | 5T |
| Braking System | Steering | Power Steering |
| Service Brake | Dual-Circuit Air Braking System |
| Parking Brake | Diaphragm Spring Brake |
| F/R Braking Dia. | Ф310 |
| F/R Braking Shoe Width | 130/160 |
| Suspension Style | multiple-leaf spring |
| Tyre | 7.50-16 |
| Oil Tank Capacity | 90L |
Standard and optio
nal configuration
| Items | Name | Specification |
| 1 | Front windscreen | Fixed, laminated glass, |
| 2 | Rear windscreen | Fixed, toughened glass |
| 3 | Battery | Two piece of 6-qa-105 (15) battery |
| 4 | Inner decoration | Plastics |
| 5 | Rearview mirror | Rabbit ear rear view mirror |
| 6 | Inside mirror | Standard |
| 7 | Passenger door | Manual folding passenger door |
| 8 | Side window | Up the adhesive, the push and pull side window |
| 9 | Passenger seat | Single seat width 420,800 ordinary seat |
| 10 | Clearstory | Escape hatch |
| 11 | Steering wheel | Adjustable steering wheel |
| 12 | Floor board | Flat floor |
| 13 | Air conditioner | with |
| 14 | Seats armrest and safety belts | + USD 300.00 |
| 15 | 7.50R16 radial tyres | + USD 200.00 |
| 16 | LCD TV | + USD 400.00 |
| 17 | Outside luggage rack | + USD 150.00 |
| 18 | Automatic passenger door | + USD 160.00 |
Pictures
Product Image
