Detailed Description
Specifications of City Bus Aluminum Body (SLK6111)
11m Aluminum Body City Bus, VCA homologation.
Dimension(L*W*H)&co
lon; 11490mm*2500mm*3170mm
Wheel ba
se&co
lon; 6200mm
G. V. W&co
lon; 15, 000kg
Port&co
lon; Shanghai
Delivery Time&co
lon; Within 30 days
Supply Ability&co
lon; 1000 Piece/Pieces per Day
Payment Terms&co
lon; T/T, L/C at sight
Any further information a
bout City Bus, PLS feel free to co
ntact Ms Julia.
TEL&co
lon; +86-27-87585969FAX&co
lon; +86-27-87737198
Mobile&co
lon; +86-15927026165
| MODEL | 2 Axle TransitAluminum Body City Bus |
| TYPE | 4×2rear engineright hand |
| DIMENSIONS |
| Overall length | 11,490mm |
|
| Overall width | 2,500 mm |
|
| Overall height | 3,170mm |
|
| Wheelbase | 6,200mm |
|
| Over hangfront/rear | 2,560mm/2,730mm |
|
| Treadfront/rear | 2,100mm/1,857mm |
|
| Front approach angle | 8° |
|
| Rear departure angle | 9° |
|
| Min. ground clearance | 180mm |
|
| WEIGHTS |
| Vehicle weight(tare) | 9600 kg |
|
| Max. G.V.W. | 15000 kg |
|
| PERFORMANCE |
| Max. speed | ≥110 km/h |
|
| Max. grade ability | ≥25% |
|
| Min. turning radius | ≤24m max 25 |
|
| Cruse Control | NO |
|
| CHASSIS |
| MODEL | FZ6111M14A |
| TYPE | 4×2rear engine, right hand with frame |
| ENGINE |
| Model | ISBE4+250B |
| Type | 6 inline, 4stroke, water cooling, direct injection, turbocharged,inter-cooling, diesel engine. |
| Bore and stroke | 107mm×124mm |
| Displacement | 6.7 L |
| Compssion ratio | 17.3:1 |
| Max. power | 184kW(250 hp)/2500 rpm |
| Max. torque | 1020N@m/1500 rpm |
| Emission | EURO IV |
| Generator | Prestolite 140A to engine. |
| Battery | 12V 180Ah×2 |
| TRANSMISSION | ZF6HP504C |
| RETARDER | Inner retarder |
| FRONT AXLE | Komman 5.5T, independent suspension |
| REAR AXLE | Merito, 9.5T, integral drive axle |
|
| Final reduction ratio | 5.13 must match 110k per hour |
|
| SUSPENSIONSfront/rear | Komman air suspension,F2/R4 |
| TIRES |
|
|
| 275/70R22.5tubeless type |
| Rim | 22.5×7.50 | Subaru aluminum rim |
| STEERING | ZF8098, right hand, power steering, adjustable steering column ZF, Transparent oil pot |
| ESC | WABCO |
| BRAKEING SYSTEM |
| Service Braking system | Dual circuit, Disk brake (22.5') |
| Parking Braking system | Manual control, energy storage spring brake chamber acting on the rear axle |
| Auxiliary brake | Energy storage spring parking brake |
| Auto-adjustment arm | N/A |
| ABS | WABCO, 4s/4m |
| EBS | WABCO |
| ASR | N/A |
| Fuel tank capacity | 200 L |
|
| Air exhaust system | Silencer installs on the left, the exhaust tube facing the vehicle vertical central line down |
| Inspiration system | The air inlet set on the rear left roof, the air filter is on the left and the filter core can be moved out from the left compartment door |
| Cooling system | water tank and intercooler on the right side which adopt LINNING angle transmission mechanism |
| Centralize lubrication | YES |
| Chassis frame | Integral truss type |

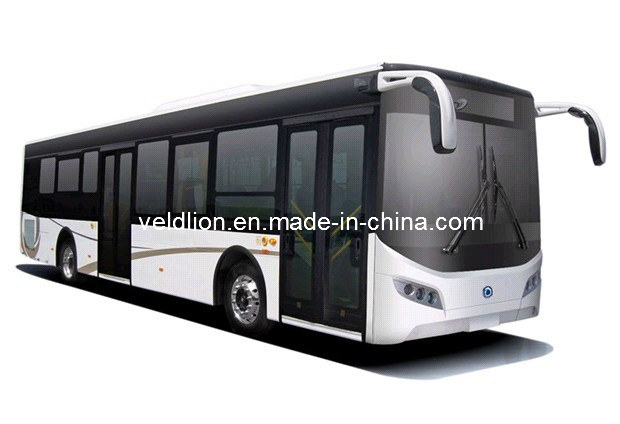

Product Image
