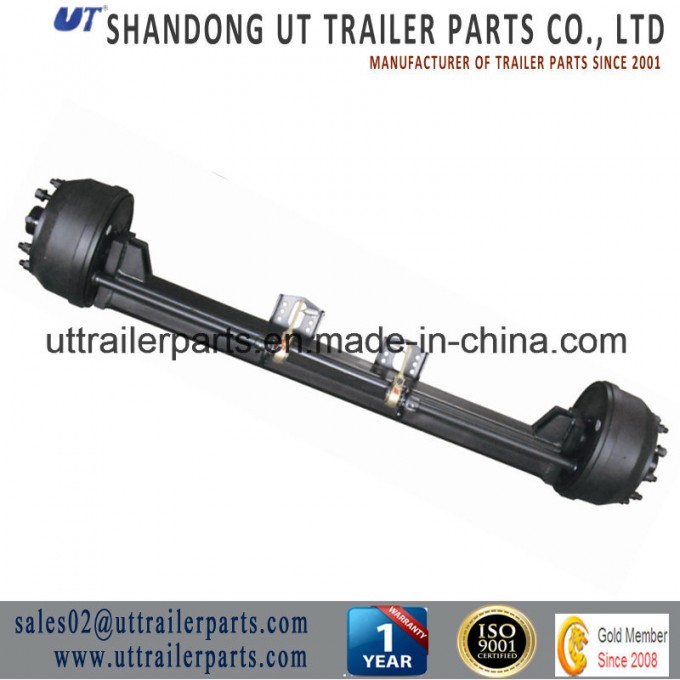

Semi Trailer Parts/Concave Type Axle/10 T/12t/Low Bed Axle

Model	Capacity	Brake size	PCD	CBD	BEARING	Beam size	Track	Wheel size	Type Size
UT10	10T	420x152	335	281	33213/218248	150x12	2385	7.5V-20	8.00-20
UT12	12T	420x180	335	281	33213/218248	150x14	2385	7.5V-20	8.00-20

Axle Type	Capacity	Brake	Bearing	Axle Beam	Track L1	Distance of Spring L2	Distance of Brake Chamber L3	Wheel Fixing			Total Length L4	Weight	Recommend Wheel
								Stud	P.C.D	φA Pilot Hole Diameter
	t			mm	mm	mm	mm		mm	mm	mm	kg
UTS08U11T1	8	S420×150	518445/10	○140	1939	671	1259	10-M22×1.5 ISO	335	281	≈2237	≈385	7.50V-20, ET=165
			33213
UTS10U11	10	S420×150	518445/10	○140	2335	1695	511	10-M22×1.5 ISO	335	281	≈2733	≈400	7.50V-20, ET=165
			33213
UTD11Y10	11	S311×190	518445/10	○127	1850	1000	450	10-M22×1.5 ISO	225	176	2154	292	6.5-15, 17.5×6.75
			33213
UTD11Y10T1	11	S311×190	518445/10	○127	1950	1110	550	10-M22×1.5 ISO	225	176	2254	296	6.5-15, 17.5×6.75
			33213
UTD12F21TA	12	S410×180	683/672	○150	1840	940	-	10-M22×1.5 ISO	335	281			7.50V-20
			32217
UTD12F21AL	12	S410×180	683/672	○150	1840	940	-	10-M22×1.5 ISO	335	281			7.50V-20
			580/572
UTD08Y11	8	S420×150	33215	○127	1850	1080	428	10-M22×1.5 ISO	335	281	≈2145	≈323	7.50V-20
			33213
UTD08Y11T1	8	S420×150	33215	○127	2050	1280	628	10-M22×1.5 ISO	335	281	≈2345	≈333	7.50V-20
			33213
UTD12Y11	12	S420×180	33215	○127	1820	950	365	10-M22×1.5 ISO	335	281	≈2170	≈365	7.50V-20
			33213
UTD12Y21	12	S420×180	518445/10	○127	1820	950	365	10-M22×1.5 ISO	335	176	≈2170	≈365	7.50V-20
UTD12Y21T3	12	S420×180	518445/10	○127	1850	1010	395	10-M22×1.5 ISO	335	176	≈2200	≈382	7.50V-20
UTD12Y21T4	12	S420×180	518445/10	○127	2050	1210	595	10-M22×1.5 ISO	335	281	≈2400	≈391	7.50V-20
UTD12K11	12	S420×180	518445/10	○127	1820	950	364	10-M22×1.5 ISO	335	281	≈2170	≈365	7.50V-20
UTD12K20	12	S420×180	518445/10	○127	1820	950	374	10-M22×1.5 ISO	285.75	221	≈2170	≈359	7.50V-20
UTD13F11(A)	13	S420×180	518445/10	○150	1840	940	385	10-M22×1.5 ISO	335	281	≈2170	≈382	7.50V-20
UTD13F28(A)	13	S420×180	518445/10	○150	1840	940	385	8-M20×1.5 JIS	285	221	≈2170	≈373	7.50V-20
UTD13F21(A)	13	S420×180	518445/10	○150	1840	940	385	10-M22×1.5 ISO	335	281	≈2170	≈390	7.50V-20
UTD14F11T	14	S420×220	518445/10	○150	1840	940	348	10-M22×1.5 ISO	335	281	≈2192	≈408	8.00V-20
UTD15F11(A)	15	S420×180	220149/10	○150	1840	940	381	10-M22×1.5 ISO	335	281	≈2200	≈411	8.00V-20
			518445/10
UTD16F11(A)	16	S420×220	220149/10	○150	1850	940	353	10-M22×1.5 ISO	335	281	≈2210	≈438	8.50V-20
			518445/10
UTD20F13	20	S420×220	32222	○150	1850	940	353	10-M24×1.5 ISO	335	281	≈2256	≈466	8.50V-20
			518445/10

.Optional track length available.


Shandong UT Trailer Parts Co., Ltd is a professional manufacturer of semi trailer's spare parts. It possesses production buildings of more than 12000 meter square, and senior and intermediate staffs more than 60 technicians' team. Our products are strictly been produced and examed by ISO9001: 2000 International Quality Management System. And we provide perfect quality trailer parts like axle, suspension, landing gear, king pin, fifth wheel, drawbar, trailer coupling etc.
We producing and managing effectively with modernized management philosophy and pattern. We have excellent design, advanced technology, reliable equipment and senior staffs, therefore our products have been praising for good quality and gained high credit standing in the society.
We've been exploited overseas market continuously, and established sale and after service net spot in nation scope. It is our eternal pursuit that "the first class products, reasonable price, the perfect after service".
We seek exist by perfect quality, seek develop by excellent credit standing, seek benefit by scientific management, we'll do our best to develop toward modernization, larger scope, professional and perfect quality products. We have a conviction: we'll create resplendence future under your supports and our staffs. Now we make:
A. Mechanical suspension: Casting or welded type. American style or Germany style. Design can be same as BPW, SAF, FUWA, YTE, ROR, MERITOR
B. Cantilever suspension (bogie), 24, 28, 32 ,36tons capacity. Design can be same as BPW, YORK
C. Axle: Stud hub or spider axle,12 to 20 tons payload, can be same design as BPW
D. Axle Tube: One piece type, axle if fabricated from one steel tube without welding
E. Air suspension system, most parts imported from Germany.
F. Landing gear: Single side operation or twin side operation landing gears for semi-trailers. Can be same design as JOST, HOLLAND, KIC
G. King pin:2",2.5" or 3.5", welded or bolted in type.
H. Fifth wheel.2" or 3.5", forged or casting type. Can be same design as JOST, HOLLAND
I. Leaf spring: width 75mm, 90mm, 100mm or 120mm.
J. Turntable for semi-trailers and fully trailers, capacity from 2 to 100 tons. Design can be same as JOST.

K. Draw bar eye for dolly connection or full trailer
L. Towing hitch for dolly connection or full trailer
M. Full series of Wheel & rim:
Tube disc wheel 5.5-15, 5.5-16,6.5-20,7.0-20,7.5-20,8.0-20,8.5-20, 8.5-24
Tubeless disc wheel 6.0-17.5, 6.75-17.5, 7.5-19.5, 7.5-22.5,8.25-22.5,9.0-22.5,11.75-22.5, 13.00-22.5, 14.00-22.5, 8.25-24.5
Demountable rim 7.5-15, 7.5-20, 8.0-20, 6.75 x 17.5, 7.5-22.5, 8.25-22.5,9.0-22.5
N. Brake Chamber for semi-trailer, full series. T12, T16, T20, T24, T30 single brake chamber. T24/30, T30/30 double brake chamber.
O. Twist lock, lifting type or JOST screw type

With the wide range, we can supply One-Station service to you!
