CLW Group

JMC 4x2 5tons fresh food trucks

FOB Price:$ 18,900

Horsepower: 150 - 250hp Maximum Torque(Nm): ≤500Nm Capacity (Load): 1-10T Dimensions: 5995*1950*2900mm Box Dimensions: 4150*1750*1750mm Temperature Range: -18°C

󦌡Contact Now

Product Detail

The FRP Sandwich PU Panel now is the best Refrigerator Truck Body Material ( Price of JMC HuBei cooling van truck ) and this material is become more and more popular in the Refrigerator Truck ( Price of JMC HuBei cooling van truck ) Body market. All close panel, adhesive structure with the type of building block, Freon free polyurethane vesicant material is our innovation, which are very different from traditional open sandwich panel with connecting by metals, injected polyurethane at site with Freon.

The Thickness of Refrigerator Truck is according to customer's requirements, range from 30mm to 150mm.With the dimensions, the truck body can be the best Refrigeration Effect.

Insulated truck body Main Characters:

Light in weight: 40% lighter than metal body.

Better insulation: K value less than 0.3w/m2k.

High in strength and long life: 5 times longer than metal body.

Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

Easy to assembly and repair at site.

Main parameters	Product model	CLW5042XLCJ3
	Gross weight (kg)	4500
	Rated load (kg)	1595
	Curb weight (kg)	2770
	Cab seats	3
	Approach/departure angle	27/14
	Number of axles	2
	Axle load (kg)	1860/2635
	Overall dimension(mm)	5995×1950×2900
	Front/rear suspension (mm)	1065/1570
	Wheel base(mm)	3360
	Max speed (km/h)	100
	Steering	Left hand drive and right hand drive
Chassis parameters	Chassis model	JX1041TG24
	Brand	JMC
	Fuel	diesel
	Number of wheels (mm)	6
	Tire specification	7.00R16LT
	Rear track base (mm)	1425
	Engine type	JX493ZLQ4
	Engine displacement (ml)	2771
	Engine power (kw)	80
	Emission standard	Euro III
Refrigerator box	Box dimension(mm)	4150×1750×1750
	Thickness(mm)	80
	Unit	Carrier or according to you
	Temperature	can reach -18°C
	Side door	According to you

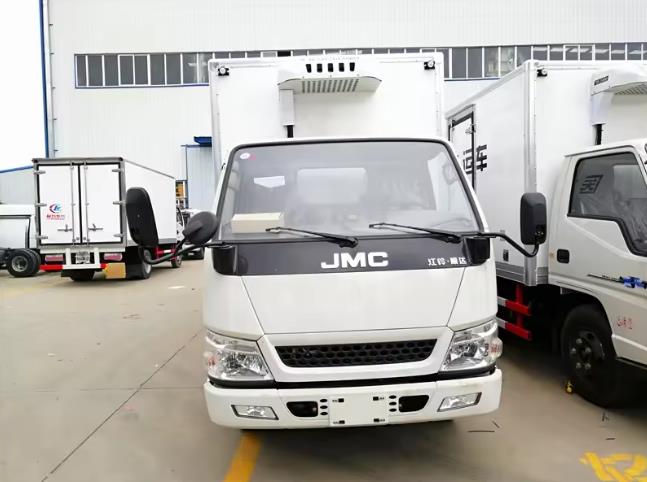

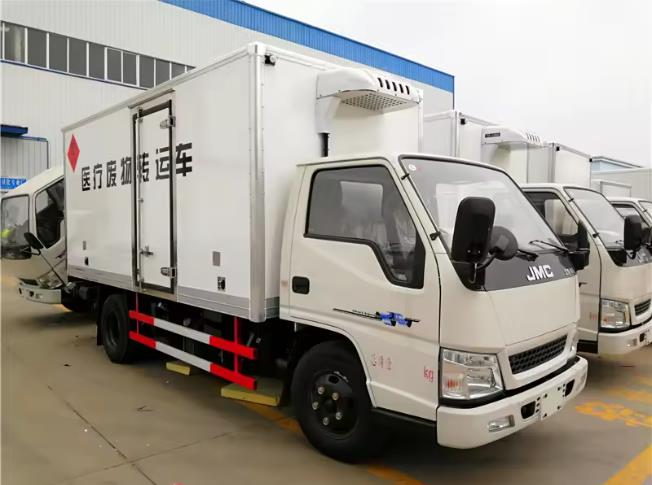

Photo Show

JMC 4x2 5tons fresh food trucks

 Refrigerated Trucks 4x2 Refrigerated Trucks 5 Ton Refrigerated Trucks
