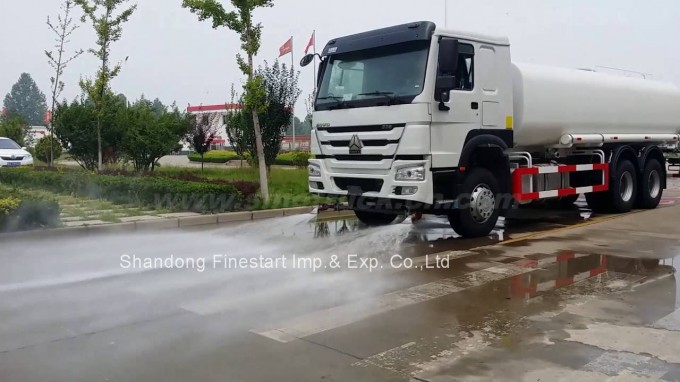

HOWO Truck 6X4 15m3-20m3 Water Tank Truck or Water Spray Vehicle with 266HP/290HP/336HP/371HP

SINOTRUK HOWO 20m3 Water Tank Truck

The water tank truck is equipped with:
1.front nozzle, wash road surface dust
2.Water cannon, 360 rotation and sprayer nozzle can be adjusted to the columnar and the vaporific
3.Fire coupling, cooperate with fire hose, achieve function of emergency fire.
4.Water absorption system, equipped with special water pump and filter system
5.Rear and side sprayer nozzle,equipped with rear working system

SINOTRUK HOWO 20m3 Water Tank Truck
Chassis Model	SINOTRUK HOWO ZZ1257M5841
Engine	WD615.69, 336hp
Drive Model	6x4
Fuel Type/Emission	Diesel, Euro II
Transmission	HW19710/HW19712,10 /12 forward&2 rear
Steering	ZF hydraulic steering with power assistance
Front axle	HF7/HF9,7tons/ 9tons load capacity
Rear axle	ST16/HC16 ,16×2 tons load capacity
Cab	HW76 cab, one berth, With air conditioner, With ABS
Rim/Tires	12.00R20 Radial Tire,11 pieces including 1spare tyre
Fuel Tank	400L
Carriage dimension	20m3
Truck dimension	9950x2500x3000mm

Detailsdeterminesuccessorfailure!

Watertank production	Automatic production process is divided into: under the material, the fight board automatic welding, head spin forming, the body of arolling forming and other domestic advanced production processes. Special use cases can also be based on the needs of customers using 304 stainless steel. Tank volume is 4cubic meters, 5cubic meters, 6cubic meters, 8cubic meters, 10 cubic meters, 13 cubic meters, 15 cubic meters, etc..
Piping system	water tank truck pipe system made by"pipes, valves, filter device, awater outlet (after spray, side spray; high side of the shower; work platform with green sprinkler gun)
Operating system	Mainly by the engine drive gearbox, gear box on the installation of power driven pump, sprinkler pump, the power of the tank, the liquid inside the tank through the pipe network. Scope of work: from the ceiling height: less than or equal to 7m, sprinkler width: greater than or equal to 14m, maximum range: greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m; also can be adjusted into amist, with arange of more than or equal to 5M.
Sprinkler pump	Equipped with Fukuda sprinkler, green sprinkler high power dedicated sprinkler (water pump), with afire joint, with self flow valve, with self suction function. Can be optional configuration: can be installed onto the medicine wheel, drug pumps, tank corrosion and rust, multi-faceted import and joint water, electromagnetic valve, gas dynamic valve and other advanced facilities, to meet the needs of different users
Water jet	watersprinkler with duckbill shaped nozzle or round blunt mouth, cylindrical sprinkler nozzle or shower nozzle mounted behind, at the back of the work platform, equipped with water cannons. 8nozzles can be installed at the rear.

Shippment by Bulk cargo ship,RORO ship or frame.
