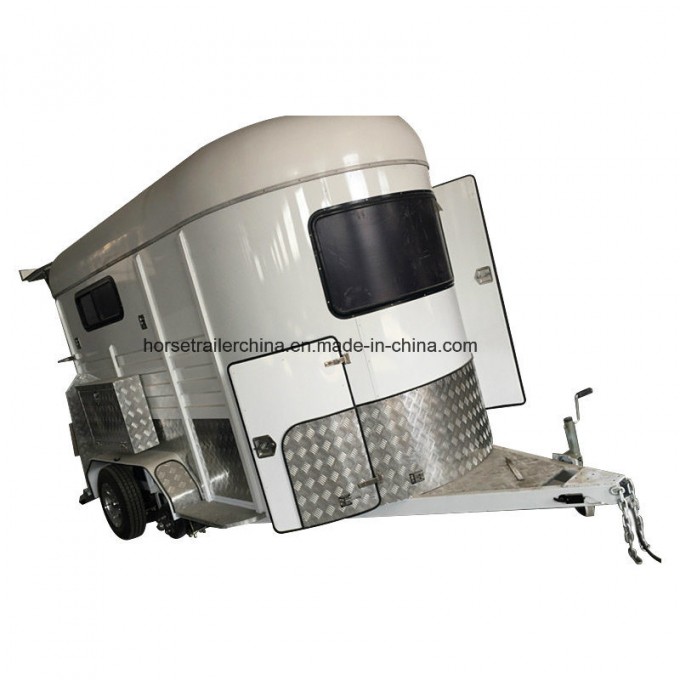

2 Horse Trailer Straight Load Standard Australian StandardTransport your horse safe and secure with a quality horse float made by Hete Trailers
All of our horse floats are manufactured here in China , and are built to the highest safety standards.
STANDARD HORSE TRAILER WITH FEATURES AS LISTED BELOW:
| Model Number | 2HSL-S |
| Overall Dimension | 3925*2270*2590mm |
| Dimension of Body | 3075*1750*2230mm |
| Maximum Internal Dimension of Body | 3050*1700*2155mm |
| Chassis | hot galvanized RHS (3.5mm-4.0mm) |
| frame | hot galvanized RHS(2.5mm) |
| Body | Galvanized iron sheet(1.0mm-1.5mm) |
| Roof | glass fibre reinforced plastic 3075*1750mm |
| Wheel/Tyre | alloy wheels 185R14C |
| Spare Wheel | 1,mounted outside |
| Suspension | 5 leaf plate spring suspension(400KG/leaf),Independent |
| Axles | trailer axles |
| Brake System | Dual axle electric brake |
| Front Window | 1220*610 polycarbonate wind shield |
| Side Window | two rectangle(diamond) sliding windows,one each side |
| Turn Light | two each side(except tail lights) |
| Tail Lights | one set |
| Horse Divider | soft cushion |
| Decorative Front panel | aluminium checkered plate 1.2mm |
| Mudguard | partialy decorate with aluminium checkered plate |
| Pedal Plate | decorate with aluminium checkered plate |
| External Tie Hooks | four,two each side |
| Jockey Wheel | swing-up jockey wheel |
| Cupboard | none |
| Roof Vents | two vents |
| Saddle Stents | none |
| Toolbox | one |
| Hay Rack | yes,horse bay |
| Tailgate(upper) | 2020*1065mm, pneumatic spring-loaded |
| Tailgate/Ramp Door | 2020*1210mm, pneumatic spring-loaded,10mm rubber cushion |
| Horse Area | 10mm rubber floor |
| Side Area inner | 6mm rubber cushion |
| Taillight Mounting Plate | aluminium checkered plate |
Packing&Shipping
1.To be load in 40'HC.3pcs for one set of 40'HC.
2.Delivery time:Within 30working days after receive deposit.
FAQ
Q1: How can iget the price and co
nsult for product details?
A1: Send enquiry through Made-in-China or email directly.
Q2: How you co
ntrol the product quality?
A2: Our products are manufactured directly by factory,products were strictly tested before shipping.
Q3: What is the delivery time?
A3: Normally within 20days after received your payment.
Q4: Do your company accept cuatomers special design request?
A4: Yes.we accept it.
Q5: Can iorder one set for testing?
A6: Yes.If you are in Australia.welcome to co
ntact with our distributor to checkdesign and quality.
Note:We have price list for normal size products only, but most sign products are customized that we have no price list. You need to send products' photo or design drawing with size and order quantity for us to calculate the last cost for you.
Feel free to co
ntact us with your requirements and we will do our best to assist you.
