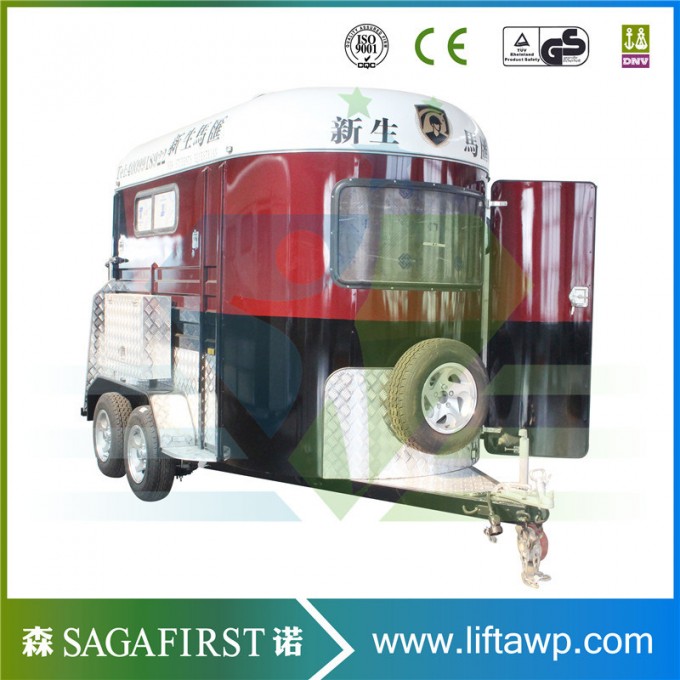

OEM China Horse Living Quarter Camper Trailer with CEHorse Trailer is mainly used to transport horse from one place to another. In fact, it belongs to one kind of trailer. It is towed by car ,truck or tractors. Horse trailers are widely used in each pasture. We have seven kinds of common horse trailers including 2 Horse Straight Load Float-Economic, 2 Horse Straight Load Float- Standard, 2 Horse Straight Load Float-Deluxe, 2 Horse Angle Straight Load Float-Standard, 2 Horse Angle Straight Load Float-Deluxe, 3 Horse Angle Load Float-Standard and 3 Horse Angle Load Float-Deluxe.

Allthemodeloftheproductscanbecustomized,thecolorandthesizecanbechangedasthebuyers'requirements

3horsefloat angle loadhorsetrailerWeareaprofessionalmanufacturerofhorsetrailerwith10years'experienceinChina.
OurtrailersareproducedaccordingtoAustralianindustrystandards.

Wecanproducetrailersaccordingtocustoemrs'designandrequirement.

Withadvancedtechnologyandequipment,weareproducingtopstandardproducts.
OurproductsarewidelyusedinAustraila,NewZealand,MiddleEast,SoutheastAsiaandSouthAmerica.



Horse Float 2 Horse angle load

Over Dimension	(LxWxH:mm):4795x2290x2662
External Dimension	(LxWxH:mm):3400x1830x2190
Inner Dimension	(LxWxH:mm):3320x1780x2120
Horse bay	(LxW:mm):2050x700
Trailer Weight	1240KGS
Max Payload	1000 KGS
Body frame	Galvanised body frame and hot dipped galvanised chassis, galvanised sheet panels
Roof	3-4mm thickness fiberglass
Side wall	6mm thickness rubber matting
Floor	18mm thickness rubber matting,rear ramp door with moulded one pc new rubber matting
Chain	Safety chain D-ring, welded chain
Coupler	Φ=50mm load 3500kg
Brake	Electric drum brake in one axle with hand brake system
	Break away switch with 12v battery
Suspension	6 leaf spring
Axle	2pcs, 840mm length
Axle distance	840mm
Light	LED light, rear lights 2pcs, internal Roof light 1pc
	Outer view width lights 2pcs, licence board light 1pc
Plug	7 pin plug round or flat
Wheels & Tires	5pcs 195/70R 15C, 14X5J, including a spare tire
Spare wheelBracket	1pc
Alu decoration	1.5mm Alu decoration on front and on wheel
Button bar	Galvanised and powder coated button bar with soft pads, its tube 40x40x2mm
Hook	Galvanised hook for tighting the horse (inside 2pcs,outside 2pcs)
Vent	Roof vent with five opening ways
Front window	Mould alu alloy front window (950x500mm)
Side window	Mould alu alloy side window 4pcs (300x600mm)
Rear ramp door	Rear ramp door with spring support:1600x1220mm
Side door	1650x600mm
Option	Pop up door
	Barn door
	Break away switch with 12v battery
	Luggage shelf
	Front tack box
	Swing out tool box
	Alloy wheel
	Folded Awning
	Gas strut for rear door
	Extension size available

Horse Float 3 Horse angle load

Over Dimension	(LxWxH:mm):5825x2290x2662
External Dimension	(LxWxH:mm):4430x1830x2190
Inner Dimension	(LxWxH:mm):4380x1780x2120
horse bay	(LxW:mm):2050x700
Trailer Weight	1430KGs
Max Payload	1440KGs
Body frame	Hot dipped Galvanised chassis,galvanised sheet panelsand body frames
Roof	3-4mm thickness fiberglass
Side wall	6mm thickness rubber matting
Floor	18mm thickness heavy duty hardplywood plus 9mm rubber matting
Chain	Safety chain D-ring,welded chain or adjustable chain hooks
Coupler	Φ= 50mm load 3500kg
Brake	Electric drum cable brake in two axle with hand brake system
	Break away switch with 12v battery
Suspension	7 leaf spring
Axle	2pcs
Axle distance	840mm
Light	LED light, rear lights 2pcs, internal roof light 1pc
	Outer view width light 2pcs, licence board light 1pc
Plug	7 pin plug round or flat
Wheels & Tires	5pcs 195/70R 15C, 15x6J,including a spare tire
Spare wheelBracket	1pc
Alu decoration	1.5mm checker plate Alu decoration on front and on wheel
Button bar	Galvanised and powder coated button bar with soft PVC pads, its tube 40x40x2mm
Tie ring	Galvanised hook for tighting the horse(inside 3pcs, outside 3pcs)
Vent	Roof vent with five opening ways
Front window	Mould alu alloy front window (950x500mm)
Side window	Mould alu alloy side window 6pcs (300x600mm)
Rear ramp door	Rear ramp door with spring support: 1600x1220mm
Side door	1650x600mm
Option	Pop up door
	Barn door with hinge
	Brake away switch with battery
	Luggage shelf(overhead rug racK)
	Front tack box
	Swing out tool box
	Alloy wheel
	Folded Alu Awning
	Gas strut for rear door
	Extension size available
