Detailed Description

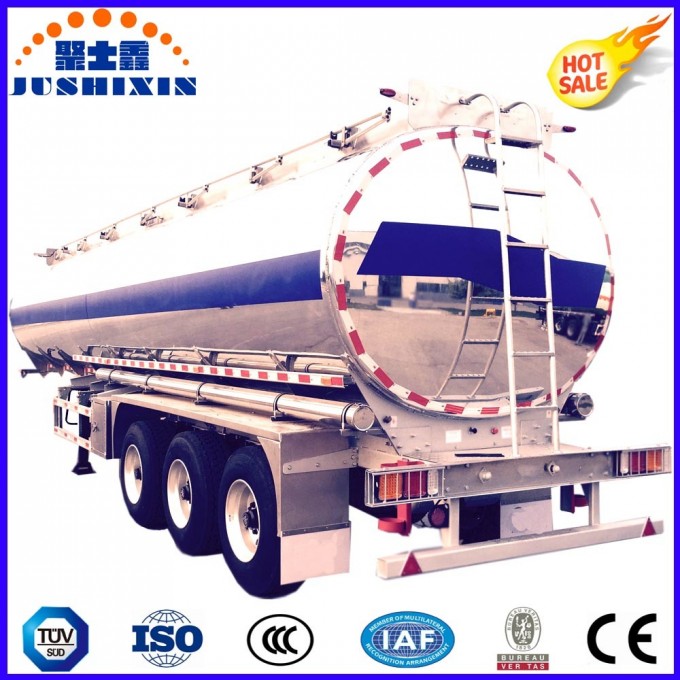

40 Cbm Alloy me
tal Tank Semi Truck Aluminum Tanker Trailer
1.The related Specification for this 36CBM Crude oil tanker semi trailer:
| 3Axles45000LitersAluminumAlloyFuelTankerTrailer |
| Model | JSX9601TT |
| Wheelbase | 1310(mm) |
| TyreSpecifications | 12R22.5 |
| No.OftheTyres | 12pcsISOCertificated |
| Axle | 13Tonnage |
| No.OftheAxles | 3pcs |
| LandingGear | 28toncapacityFuwawithstaticcapacityof80T |
| Suspension | Heavydutymechanicsuspensionwith10pcsleafspring |
| KingPin | 2'and3.5'inter-changeabletractionpin |
| DepartureAngle | 15 |
| Front/RearOverhang | 1900mm |
| MaterialoftheMainBeam | Automaticsubmergedarcwelded |
| MainbeamsQ345B/ST52-3,throughcrossbeamsQ235 |
| BodymaterialQ235Bmanganeseplates,automaticsubmergedarcwelded |
| BrakeSystem | Automaticairbrakes |
| Doublepipelineairbrake,fronttwoaxleis30airchamber,rearaxleis |
| 30/30airchamber. |
| Colour | Asthebuyers'request |
| Accessory | Onetoolingboxes,Twosparetirecarrier,Twofireextinguisher |
| Dimension | 11000x2500x3800mm |
| NetWeight | 6Tons |
| SideWallThickness | 3mm-5mm |
| Sparetirecarrier | 1set |
| ElectricalSystem | 24V,7coresocket,lightsaccordingtoEuropeanstandards. |
| ToolBox | 1boxofstandardtools |
2.Optio
nal parts for the Aluminum Alloy Tanker:
***The tank volume is normally30-60CBM,and70-90CBMis also optional;
***Tank body can be
mirror polishingoptional;
***The tank body material is modelAL5083,AL5182,AL5454optional;
***The tank body isfull compartment or iso-lated compartmentoptional;
***The suspension isair,mechanic and bogie suspensiontype optional;
3.Advantage&Features of Aluminum fuel tank:
***Polished Surfacethe temperature of inside medium will be5ºC lowerthan unpolished Aluminum tank. The thermal conductivity of Aluminum is 3times of Carton steel ,When it is high temperature, the Aluminum material tank body can reduce the temperature of medium.
***Curb Weightof aluminum material ismuch lighterthan Carton Steel, saving energy and good for environment.
***Re-Use value.Aluminum can be recycled many times,recovery value is more than85%.
***Longer cycle life.Aluminum alloy life time is15-20years(Carton Steel is 7-10year).Is beautiful, easy wash and lower repairing cost.
***Safety factors,good electrical conductivity and energy absorption. There is little static gathered on the trailer, not easy spark. Lighter Curb weight and low center of gravity, reduce the side over possibility.
***Good corrosion resistance, Anodizing handling, Oxide surface film.
4.More styles for the Aluminum Alloy Tanker Trailers:
5.OurAdvantage
>>>Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
>>>Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective,because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years'experience in the trailer field.
>>>Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarketetc..
>>>Two YearsGuaranteeforallthethebeamoftrailers,timelyshipment;
>>>Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
>>>Your order could be a priority in our company whenever your order is small/medium size order or your low price.
>>>We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company".
6.The photos of the Production process for the Aluminium fuel tanker truck semi trailer:
7.Detailed photos for the Aluminum tanker truck semi trailer:
8.Guarantee for our Aluminum Alloy Tanker Trailer:| ITEMNAME | WARRANTY | ITEMNAME | WARRANTY |
| MAINframe | frame | 1YEAR | RUNNINGGEAR | AXLE | 6MONTHS |
| SUSPENSION | 6MONTHS | AXLEBEARING | 3MONTHS |
| KINGPIN | 1YEAR | WHEELHUB | 3MONTHS |
| BALANCEARM | 3MONTHS | TIRE | 6MONTHS |
| ITEMNAME | WARRANTY | ITEMNAME | WARRANTY |
| BRAKINGDEVICE | BRAKEDRUM | 3MONTHS | SUPPORTDEVICE | LANDINGGEAR | 6MONTHS |
| BRKECHAMBER | 3MONTHS | SPAREWHEELCARRIER | 6MONTHS |
| AIRRESERVOIR | 6MONTHS |
| ITEMNAME | WARRANTY |
| OTHERS | LEAFSPRING | 3MONTHS |
| BRAKECHAMBERDIAPHRAGM | 3MONTHS |
| EMERGENCYRELAYVALVE | 3MONTHS |
| BRAKESHOE | 3MONTHS |
| RELAYVALVE | 3MONTHS |
9.Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.10.Some photos of our customers' Visiting:
