3 Axle 40FT /20FT Skeleton Container Transportation Truck Skeleton Trailer

3 Axle 40FT /20FT Skeleton Container Transportation Truck Skeleton Trailer

1.Product Specification:

vehiclename	3axle40ft Skeleton containersemitrailer
overalldimension(LxWxH)	12450×2480×1410mm
BasicSpecifications
TareWeight	5520kg
Payload	50T
Wheelbase	1310mm
RunningGear
AxleSpecs	3pieces;13TFUWAbrand,BPWoptional
Tirespecs	12pieces;10.00R20/16pr
Rims	12pieces;8.0-20
Suspension	mechanicalsuspensions
LeafSpring	10pcsforeach
Brake	Duallinepneumaticbrakesystem,
	T30/30+T30airchamber;parkingbrake
Underframe	MainBeamisheight500mmQ345B
frameBeam	Upperplateis14mm,lowerplateis16mm
	middleis8mm
CrossBeam	MildAlloyQ235
frameFloor	TheThicknessis3mmflatbed
KingPin	90#(3.5'),50#(2')interchangeable
	Type:boltedonkingpinplate
LandingGear	28toncapacity;Doublesidesoperation
ElectricalSystem	1.Voltage:24v2.Receptacle:7ways(7wireharness)
Lamp	LED
Painting	Anycolorwillbeavailable
Accessory
ContainerTwistLocks	8/12
ToolBox	Twotoolboxwithasetofstandardtrailertools
Sparetyrecarrier	Onepiece
Fender	Plasticfenders

2.More types of the skeleton container semi trailer:

Model	Type	Payload/kgs	G.W.	TareWeight/kgs	OverallSize/L*W*H(mm)	Axlespace/mm	Tyre	Remark
JSX9340TJZDY	2axles20FTSkeletonsemitrailer	30480	34480	4000	7000*2400*1550	6830+1300	11.00-2011.00R2012R22.511R22.5
JSX9341TJZDY	2axles40FTSkeletonsemitrailer	30480	35000	4520	12400/12460*2480*1560	7900+1300	11.00R2012R22.5
JSX9402TJZG	3axles40FTSkeletonsemitrailer	34000	40000	6000	12500*2480*1560	7160+1310+1310	11.00-2011.00R2012R22.5
JSX9385TJZG	3axles45/45FTGooseneckSkeletonsemitrailer	30480	37980	7500	14950/14030*2500*1850	9310+1310+13108390+1310+1310	11.00-2011.00R2012R22.5

3.Application:
1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of containers,this series container semi trailer divides the flatbed&skeleton container type.
2. The capacity is for 50tons, we can manufacture it according to your needs.
3. The axles can be Fuwa /Bpw with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .

4.Advantages for this Skeletal Container trailer
High strength steel Large carrying capacity
Research and development means:using the most advanced techniques and tools: FEA (finite element) analysis, PRO-E design, effective guarantee of product quality and overall reliability.
The main structure:main steel structure adopts 16Mn high-strength structural steel,the strength is 1.6 times that of the ordinary steel frame,and the main beams adopts uniform cross-section design to achieve the best supporting effect.
Walking mechanism: National patent product, wear resistant suspension system.
Braking system:adopting the international famous brands'full set of brake systems,equipped with ABS systems.
Electrical system: Using the domestic famous brand, original complete set, sealed wire harness ,with ISO standard of seven-pin socket.
Surface Coating: processed materials,vehicle shot blasting,undercoat processing,topcoat spraying four fine processes,adopting international famous brands of paint, surface treatment achieve the level of Sweden Sa2.5 ocean anti-corrosive standards.
Comply with the regulations: full compliance with GB1589, GB7258, GB / T6420 etc. standards.


5.OPTIONS:
1-20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks
2-flatbed or skeleton chassis type
3-Main beam:500mm height,140mm Q345 or T70 hight strong steel
4-Suspension; Rigid, single point or air suspension
5-material of the main beam: Q345
6-Axles number: 2 3 4 axles.
7-Design type; Straight beam
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional

6.OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective,because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years'experience in the trailer field.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarketetc..
4-Two YearsGuaranteeforallthethebeamoftrailers,timelyshipment;
5-Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
6-Your order could be a priority in our company whenever your order is small/medium size order or your low price.
7-We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company".

7.The related drawings of this Skeletal trailer as below just for your reference:

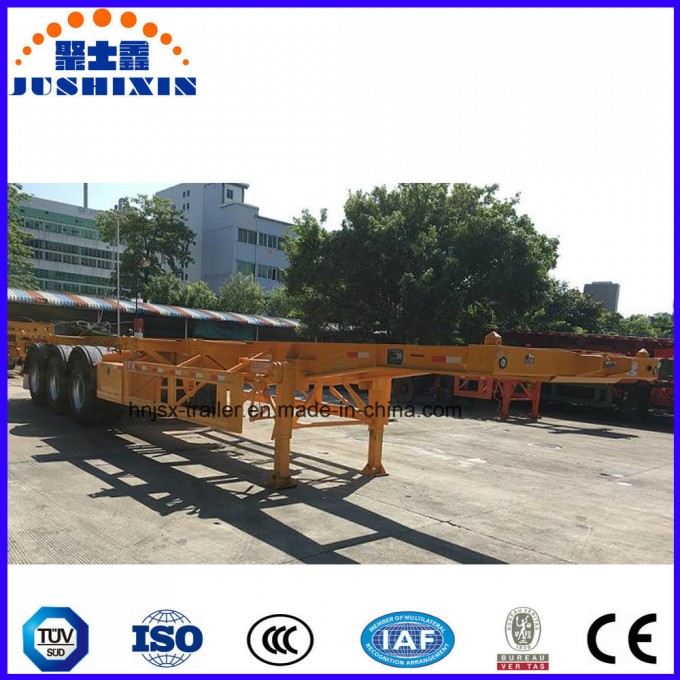

Skeletal/Skeleton container semitrailer in our ware house:


8.Guarrantee for the parts of the Flatbed trailer:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

9.QualityControl
1-ForEachtrailer,wemustdothetestingandinspectthequality;and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.
2-You wilget theinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- You will get theout-standing quality assurance

10.Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
