2/3 Axle 40FT Flatbed Semi Trailer Container Truck Semi Trailer

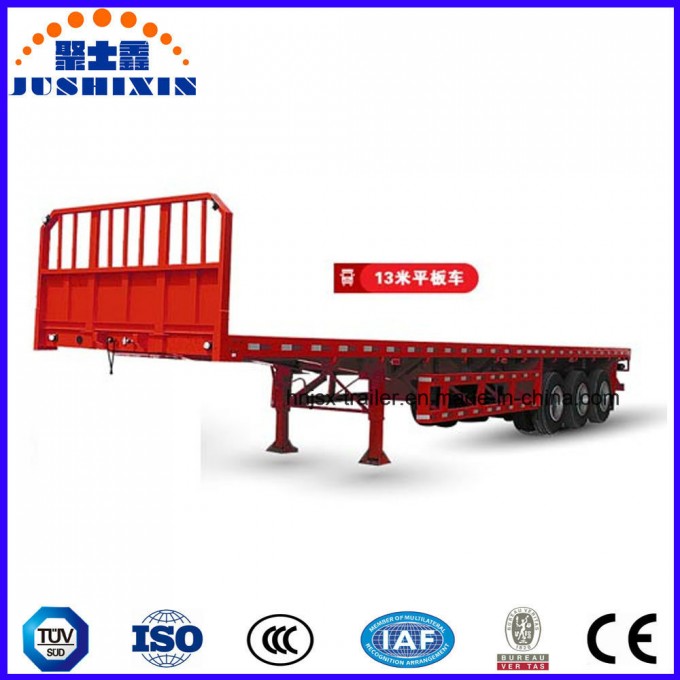

2/3 Axle 40FT Flatbed Semi Trailer Container Truck Semi Trailer1.about the flatbed semi trailer shown in the diagram
==================================================

(1)Main Product Specification:

Dimensionofthe 2/3axles 40FTFlatBedContainerSemitrailer
Length:			12,500mm
Width:			2,500mm
Height:			1,580mm
(Theabovedimensionwillbeadjustedaccordingtothetractorspecification.)
Weight:
Payload:			34,000kg
Tareweight:			Approx.6,500kg
G.V.W.R.:			Approx.40,500kg
frame&Structure:
Mainbeam:			MaterialQ345B.Fabricated"H"beamheight500mm,Topflangethickness14mm,Middle webthickness8mm,Bottomflangethickness14mm
Sidebeam:			16#Usteel(BendingParts)
Platform:			4mmthickchequerplatewithsupportingchannel
Crossbeam:			16#Usteel(BendingParts)
Kingpin:			50#,Bolttype
Weldingstandard:			Allweldingaretobedonebyqualifiedwelderperapplicablenationalstandard
Painting:			ShotblastatStandardSA2.5priortoapplicationofprimer,polyurethanetopcoat. TotalDFT notlessthan100um
Runninggear:
Suspension:			Airsuspension(3axle)
Axle:			BPW3pcs*13toncapacity,China
Brakesystem:			Duallinepneumaticbrake,SAEhoseandconnector
Brakechamber:			6doublespringbrakechamber,ABS(4S/2M)
Airtank:			45L,China
Emergencyrelayvalve:			WEBCOrelayvalve
Tire:			Triangletirebrand,385/65R22.5,6pcs.China
Rim:			11.75,6pcs.China
Floor			3mmCarbonSteel(Q235)Checkeredplate
ContainerTwistLockers			4sets,canloadone40FTcontainer.
Landinggear:			JOSTC200twospeed
ElectricalSystem:
Voltage:			24Volt
Receptacle:			7ways(7wireharness)andquickchangetype
Frontmarkerlamp:			White
Sidemarkerlamp:			White&Red
Rearlamp:			Red
Turnsignallamp:			Amber
Reflector:			Percustomerrequirement
Accessories:
Mudguard:			Steelmudguard
Sparewheelcarriers:			2pcs
Watersprayingdevice:			1pc
Toolbox:			Onepiece,1000x500x500mm
Toolsfortrailer			Headwrech;sparewheelcrank;onefireextinguisher;OperationManual

(2)Application and theTechnical Highlights for the flatbed trailer:
---This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard
containers or ISO tank container,this series container semi trailer is devided into the flatbed and skeleton type etc.

---Carrying for dry cargos, 1*40FT,2*20FT,1*20FT containers

--- High Quality Body

--- BPW, FUWA or Certificated Chinese Axles

---ABS brake system

---JOST or Chinese brand parking leg and king pin

---Air and Mechanical Suspension

---Strengthen the Chassis Instructure
(3)Detailed photos for the flatbed container Semi trailer just for your reference:

2..Frequent questions you would like to know:
==================================================
(1)company or factory?
we are the leading transportation equipment corporation in Henan province,China with
our own factory,specializing in this line for many years we have already established long-term
and stable relationships with customers from all the world.

(2)customized?
Absolutely!We can produce different flatbed semitraler and our professional R&D team
will make the production plan for youbased on your special requirements

(3)minimum quantity?
Min.1 set.

(4)paymet term?
We accept both T/T and L/C.
T/T:30% deposit by T/T,70% balance should be paid before shipment.
L/C:100% irrevocable Credit of Letter
3.Purchase processand consultation informations:
==================================================
(1)Buying guides:

1-You please send us your enquiry;

2-We should reply you with the quotation within 12 hours;

3-We negotiate on the configuration that you need;

4-Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;

5-Manufacturing process updated news → completing production;

6-Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
