3 Axles 60 Tons 40FT Flatbed Container Truck Trailers

3 Axles 60 Tons 40ft Flatbed Container Truck Trailers

1.Main Product Specification:
======================================================================

Brand	JSXT
type	40ft flatbed trailer
axle	3 axles
loading capacity	60T
Dimension-overall	12500*2500*1530
main beam material	Q345
Tire	12R22.5 12pieces
twist lock	12 unit
suspension	machenical spring suspension
landing gear	28T heavy capacity

2.Advantages:
======================================================================
Research and development means:
using the most advanced techniques and tools: FEA (finite element) analysis, PRO-E design, effective guarantee
of product quality and overall reliability.
The main structure:
main steel structure adopts 16Mn high-strength structural steel,the strength is 1.6 times that of the ordinary steel
frame,and the main beams adopts uniform cross-section design to achieve the best supporting effect.
Walking mechanism:
national patent product, wear resistant suspension system.
Braking system:
adopting the international famous brands'full set of brake systems,equipped with ABS systems.
Electrical system:
using the domestic famous brand, original complete set, sealed wire harness ,with ISO standard of seven-pin socket.
Surface Coating:
processed materials,vehicle shot blasting,undercoat processing,topcoat spraying four fine processes,adopting
international famous brands of paint, surface treatment achieve the level of Sweden Sa2.5 ocean anti-corrosive standards.
Comply with the regulations:
full compliance with GB1589, GB7258 etc. standards.

3.Options:
======================================================================
1-20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks
2-flatbed or skeleton chassis type
3-Main beam:500mm height,140mm Q345 or T70 hight strong steel
4-Suspension; Rigid, single point or air suspension
5-material of the main beam: Q345
6-Axles number: 2 3 4 axles.
7-Design type; Straight beam
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional

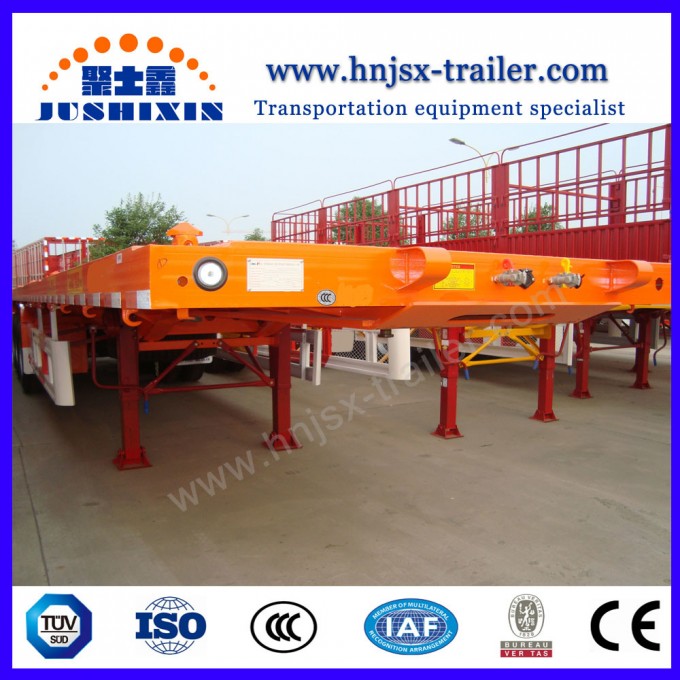

4.Detailed photos for the flatbed container Semi trailer just for your reference:
======================================================================



5.Packed ready for shipping the container flatbed trailer by Cnotainer or Bulk Cargo Vessel:
=======================================================================
