Jsxt 3 Axle Flatbed Container Semi Truck Trailer

1.Article name:JSXT 3 Axle Flatbed Container Semi Truck Trailer

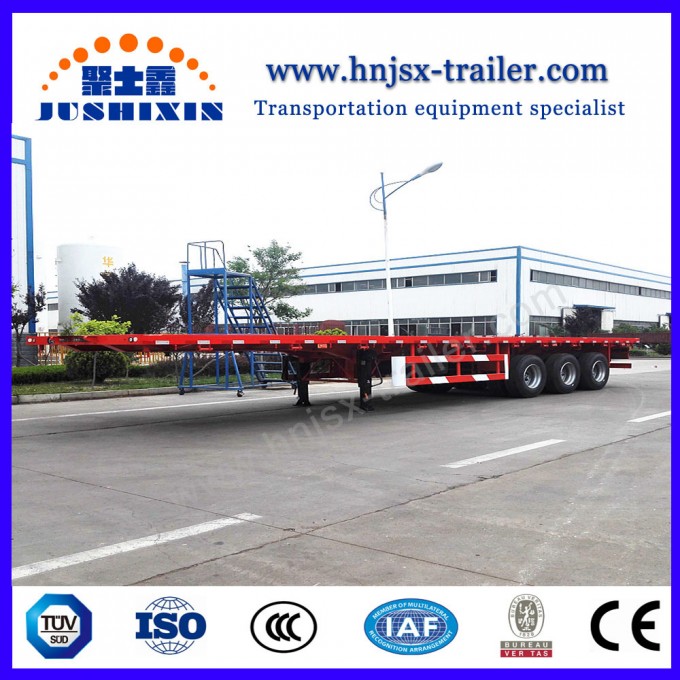

2.Display and details:

3.Application and theTechnical Highlights for the flatbed trailer:
(1)This series container semi trailers are mainly suitable for the MID/Long distance transportation of
Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton
type etc.
(2)Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers
(3)High Quality Body
(4)BPW, FUWA or Certificated Chinese Axles
(5)ABS brake system
(6)JOST or Chinese brand parking leg and king pin
(7)Air and Mechanical Suspension
(8)Strengthen the Chassis Instructure
4.Main Product Specification:

Dimensionofthe3axles34ton40FTFlatBedContainerSemitrailer
Length:			12,500mm
Width:			2,500mm
Height:			1,580mm
(Theabovedimensionwillbeadjustedaccordingtothetractorspecification.)
frame&Structure:
Mainbeam:			MaterialQ345B.Fabricated"H"beamheight500mm,Topflangethickness 14mm,Middlewebthickness8mm,Bottomflangethickness14mm
Sidebeam:			16#Usteel(BendingParts)
Platform:			4mmthickchequerplatewithsupportingchannel
Crossbeam:			16#Usteel(BendingParts)
Kingpin:			50#,Bolttype
Weldingstandard:			Allweldingaretobedonebyqualifiedwelderperapplicable nationalstandard
Painting:			ShotblastatStandardSA2.5priortoapplicationofprimer,polyurethanetop coat.TotalDFTnotlessthan100um
Runninggear:
Suspension:			Airsuspension(3axle)
Axle:			BPW3pcs*13toncapacity,China
Brakesystem:			Duallinepneumaticbrake,SAEhoseandconnector
Brakechamber:			6doublespringbrakechamber,ABS(4S/2M)
Airtank:			45L,China
Emergencyrelayvalve:			WEBCOrelayvalve
Tire:			Triangletirebrand,385/65R22.5,6pcs.China
Rim:			11.75,6pcs.China
Floor			3mmCarbonSteel(Q235)Checkeredplate
ContainerTwistLockers			4sets,canloadone40FTcontainer.
Landinggear:			JOSTC200twospeed

5.Packed ready for shipping the container flatbed trailer by Cnotainer or BulkCargo Vessel:

6.OurAdvantage:
(1)Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemi
trailertoourworldwidevaluablecustomers.
(2) Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapability
tocustomizedcosteffective,because we have more than 60 Designer and engineers as our solid backing.
Among them,our technical adviser has more than 40years'experience in the trailer field.
(3) Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,
Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarketetc..
(4) Two YearsGuaranteeforallthethebeamoftrailers,timelyshipment;
(5)Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;
Thereforewe will be at your service at any time even the midnight in our time.
(6)Your order could be a priority in our company whenever your order is small/medium size order or your low
price.
(7)We would be always grateful whatever you would be a"big fish for a small company or a small potato for
a big company".
