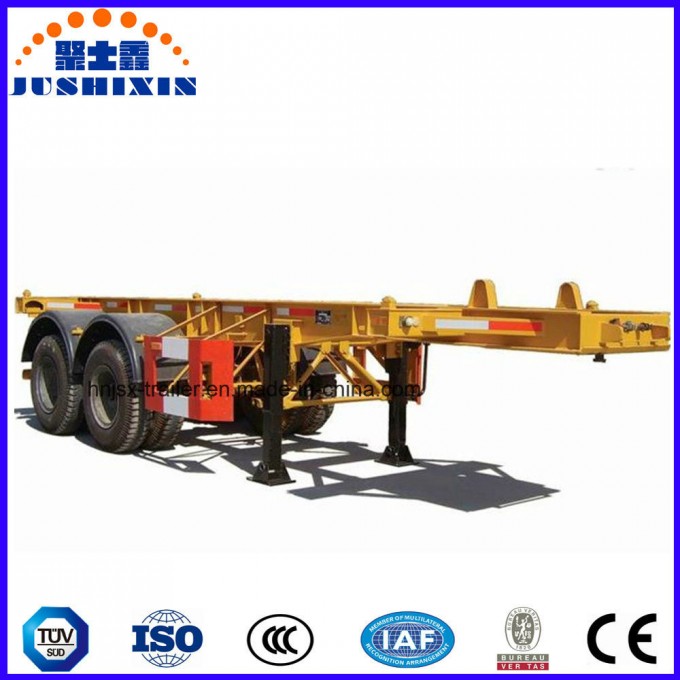

20FT 2axle Strengthened-Beam Skeleton Semi Truck Trailer

20FT 2axle Strengthened-Beam Skeleton Semi Truck Trailer
1.Product detailspecification:

2AXLESKELETONSEMITRAILER
DIMENSIONS
Tareweight	4000kg		Payload		30480 kg
Overalllength	7000mm		Overallwidth	2400mm	Overallheight	1550mm
SPECIFICATION
		Heavydutyandextradurabilitydesigned;optingforhightensilesteelQ345B,
Mainframe		weldedbyautomaticsubmerged-Arcprocesses.
		500mmHeightIbeam,TopFlange14mm,width140mm,
		MiddleFlange6mm;BottomFlange16mm,width140mm
Frontboard		No
Axle		2unitsofFUWA(brand)13Tonaxles.
Suspension		AcoupleofMechanical2axlesuspension
Leafspring		4setsofreliablelocalbrand,10pieceleafspring,
Floor		3mmcheckeredplate.
Tire		8unitsof12R22.5doublestarbrand
Wheelrim		8unitsof9.0-22.5betterbrand
Kingpin		2bolt-inkingpin
Landinggear		JOSTbrandtwo-speed,manualoperating,heavydutylandinggear28t
Twistlock		Twelveno.ofISOtwistlockfor2×20ft1×40ftcontainer
Sparewheelcarrier		Twosetofsparewheelcarrier.
SparedieselTank		No
		WABCORE6relayvalve;fourunitsofT30/30springbrakechamber;
Pneumaticbreakingsystem		twounitsofT30brakechamber
		twounitsofreliablelocalbrand40Lairtank;

2.Applications and customizations:
(1).This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard
containers or ISO tank container.

(2).Skeletal trailers are usually intended to bear the weight of shipping containers, allowing them to be quickly
loaded straight off the ship and then transported to their final destinationSkeletal container semi-trailer,
3axles, is specially designedand widely used for container delivery.

(3).Furnished with 12 twist locks, they could load 2x 20ft, 1x20ft, 1x40ft containers.However,you can also
find skeletal trailers that have been altered to cope with the transport of other more specialised loads, such
as steel coils, canisters and other items with irregular shapes.
--------------
(1). The capacity is for 50tons, we can manufacture it according to your needs.

(2). The axles can be Fuwa /Bpw with different tonnages by your need with price differences.

(3). The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.

(4). The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.

(5). The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring
ladders and hydraulic loading ramps by different needs .
3.Some details you concerned:

4.The related trailer parts of this Skeletal trailer as below just for your reference:

Guarrantee for the parts of the Flatbed trailer:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

Quality control:
1-For eachtrailer,wemustdothetestingandinspectthequality;and we have more than 30 QC&QA people
on the production process and the testing process and warehouse to gurantee the quality of the every details.

2-You wilget theinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyan
independentthirdpartycertificationcompany.

3- You will get theout-standing quality assurance.
