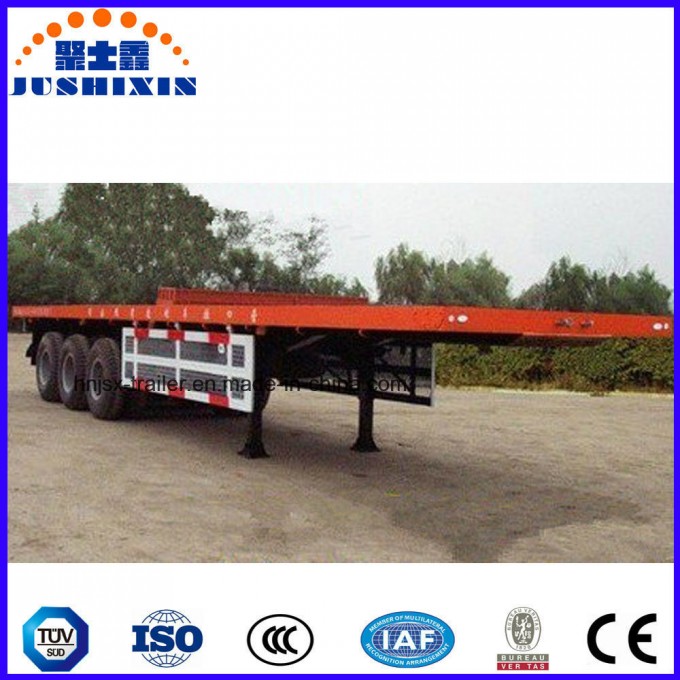

3 Axle Container Chassis or Container Flatbed Truck Semi Trailer

3 Axle Container Chassis or Container Flatbed Truck Semi Trailer


1.Application and theTechnical Highlights for the flatbed trailer:
---This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
---Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers
--- High Quality Body
--- BPW, FUWA or Certificated Chinese Axles
---ABS brake system
---JOST or Chinese brand parking leg and king pin
---Air and Mechanical Suspension
---Strengthen the Chassis Instructure

2.Product Specification:

item	unit	quantity	notice
size			12380length*2500width*1600height, detailaccordingtothedrawing
axle	piece	3	13TonFWB
tyre	piece	12	11.00R20-16PR,withoutsparetire
rim	piece	12	8.0-20
leafspring	piece	6	90width*10pieces*13mmthickness
brakingsystem	set		2lineairbrakingsystemwithairtank,emergencyrelayvalve,brakingchambersandmechanicalslackadjusters.
electricalsystem	set	1	24voltelectricalsystem.7pinelectricalconnector.parking.stop,reverse,numberplateandindicatorlights. rearlightsconformtoEuropeanstandard,rearfrontandsidereflectors
suspension	set	3	CIMCtype,thehighqualityQ345steel
relayvalve	wholevehicle	1	WABCO
landinggear	pair	1	JOSTC200,leftsideoperation,
kingpin2"	piece	1	BAOHUA50#Welded
tie-in	piece	2	haldex
chamber	piece	2	storedchamber2unitsT30/30
Sidewall			14/16mm,width146mm,usingthehighlyqualityQ345steel,
upperandlowerwingplates		12	canload1*40',2*20'or1*20'containers
mainbeam			height:500mmwebplate:6mm;usingthehighlyqualityQ345steel
sidebeam			16#channelsteel
floor			3mmcheckeredplate
crossbeam			80*40squaretube,
reflectors			Redtrianglereflectorsattherearofthetrailerandonside
Shotblastingandpaint			ChassisiscomletelyshorblastedtoSA2.5grade,andpaintedwithfirstlayerofinternationalZinc Epoxyprimer(30MicronsDEF),secondlayerinternationalhighbuiltpolyurethaneundercoat(40micronsDFT), THIRDANDFORTHLAYERSINTERNATIONALalkydFINISHTOPcoat.total80-100microns.Waxed
sparetyrecarrier		2	standard
color			accordingtorequiredRALcolorcode
paymentterms			30%TTinadvance,thebalanceshouldbepaid10dayspriortothedeliverytime
deliverydate			15workingdaysafterthedepositandthe/confirm/iationofthedrawing.

3.Advantage
Fine process!!! Advanced technology!!!
Research and development means:using the most advanced techniques and tools: FEA (finite element) analysis, PRO-E design, effective guarantee of product quality and overall reliability.
The main structure:main steel structure adopts 16Mn high-strength structural steel,the strength is 1.6 times that of the ordinary steel frame,and the main beams adopts uniform cross-section design to achieve the best supporting effect.
Walking mechanism: National patent product, wear resistant suspension system.
Braking system:adopting the international famous brands'full set of brake systems,equipped with ABS systems.
Electrical system: Using the domestic famous brand, original complete set, sealed wire harness ,with ISO standard of seven-pin socket.
Surface Coating: processed materials,vehicle shot blasting,undercoat processing,topcoat spraying four fine processes,adopting international famous brands of paint, surface treatment achieve the level of Sweden Sa2.5 ocean anti-corrosive standards.
Comply with the regulations: full compliance with GB1589, GB7258 etc. standards.
4.OPTIONS:
1-20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks
2-flatbed or skeleton chassis type
3-Main beam:500mm height,140mm Q345 or T70 hight strong steel
4-Suspension; Rigid, single point or air suspension
5-material of the main beam: Q345
6-Axles number: 2 3 4 axles.
7-Design type; Straight beam
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
5.Detailed photos for the flatbed container Semi trailer just for your reference.

6.OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective,because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years'experience in the trailer field.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarketetc..
4-Two YearsGuaranteeforallthethebeamoftrailers,timelyshipment;
5-Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
6-Your order could be a priority in our company whenever your order is small/medium size order or your low price.
7-We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company".

7.Packed ready for shipping the container flatbed trailer by Cnotainer or Bulk Cargo Vessel:

8.More types of the flatbed container semi trailer for your options:

20ft-52ft/30-65TonSCONTAINERLOADSEMITRAILER(FLATBED)
Dimension	Model	Axles/Tires		RatedCapacity
20ft	JSX9200GYY	2axles/8tires	3axles/12tires	30T-45T
30ft	JSX9201GYY	2axles/8tires	3axles/12tires	30T-45T
40ft	JSX9202GYY	2axles/8tires	3axles/12tires	45T-60T
45ft	JSX9303GYY	2axles/8tires	3axles/12tires	40T-65T
48ft	JSX9304GYY	2axles/8tires	3axles/12tires	40T-65T
52ft	JSX9305GYY	2axles/8tires	3axles/12tires	40T-65T

9.Guarrantee for the parts of the Flatbed trailer:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

10.QualityControl
1-ForEachtrailer,wemustdothetestingandinspectthequality.
2-You wilget theinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- You will get theout-standing quality assurance
11.Some Photos of our customers' Visiting

12.Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
