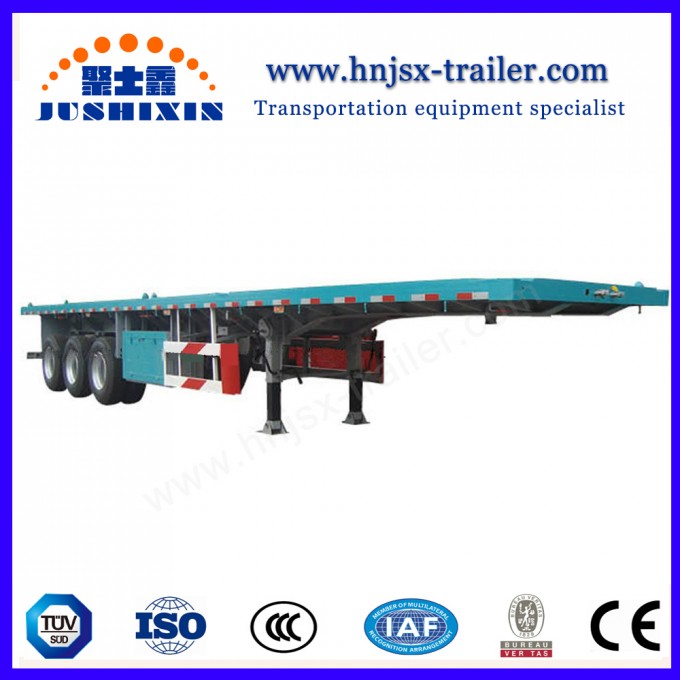

2/3 Axle 40FT Flatbed Container Truck Semi Trailer

2/3 Axle 40FT Flatbed Semi Trailer Container Semi Trailer



1.Application and theTechnical Highlights for the flatbed trailer:
(1)--This series container semi trailers are mainly suitable for the MID/Long distance transportation of
Standard containers or ISO tank container,this series container semi trailer is divided into flatbed,
skeleton type,etc.
--Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers
(2)--- High Quality Body
--- BPW, FUWA or Certificated Chinese Axles
---ABS brake system
---JOST or Chinese brand parking leg and king pin
---Air and Mechanical Suspension
---Strengthen the Chassis Instructure
2.Main Product Specification:

Maintechnicalparameter	JSX9351JP
Detailedinstructions	3axles40FTFlatbedsemitrailer
G.W./kgs	35,490
TareWeight/kgs	7,490
Ratedload/kgs	28000
OverallSize(L*W*H/mm)	12250,2490,1490/1520
Axlebase/mm	7000+1310+1310
TireSize	11.00R20;11.00-20;10.00-20
Wheelbase/mm	1,830
Leafspring/pcs	7/7/7;8/8/8
Front/rearsuspension(mm)	450/2180
Saddlebearingcapacity/kgs	11,700
Rearaxlebearingcapacity/kgs	23,790

3.Options:
1-20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks
2-flatbed or skeleton chassis type
3-Main beam:500mm height,140mm Q345 or T70 hight strong steel
4-Suspension; Rigid, single point or air suspension
5-material of the main beam: Q345
6-Axles number: 2 3 4 axles.
7-Design type; Straight beam
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
4.OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitiveprices
semitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarket hasstrongtechnicalcapability
tocustomizedcost-effective products. we have more than 60 Designer and engineers as our solid backing.
Among them,our technical adviser has more than 40years'experience in the trailer field.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,
Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarketetc..
4-Two YearsGuaranteeforallthethebeamoftrailers,timelyshipment;
5-Dealing is not only buying or selling,but also a best matching;Not only product but also excellent service;
We will provide high quality service for you anytime and anywhere
6-We put high pmium on your order no matter it is big or small.
5.Some photos of our factory's workshop for the flatbed trailer:


6.Detailed photos for the flatbed container Semi trailer just for your reference.
