Detailed Description

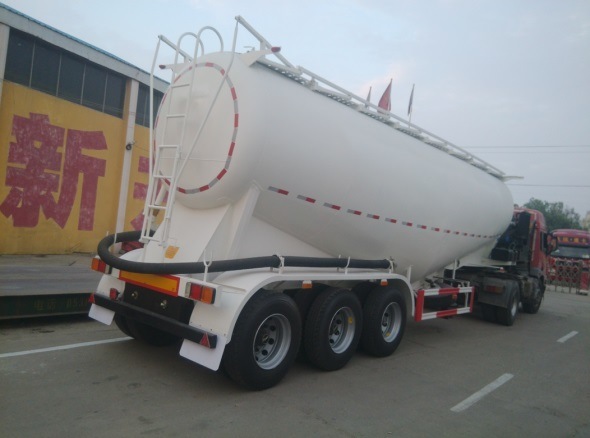

DryBulk (Powder tankers)Semi-trailersresemble big tankers,whichare used for cement, sand,barite, flour, and other dry powder materials.Bulk cement tanker semi trailer for 50cbm
| Type | Cement tanker semi trailer |
| Shipping Terms | Shipping by bulk cargo because its huage body. |
| Delivery time | 15 workdays for one set cement tank semi trailer |
| Weight: | |
| Tare Weight | about 11000kg |
| Tank capapcity | 40m3 for your choose |
| Loading Capacity | 40tons |
| Axle Weight Load | 13T |
| Specification: | |
| Axle number | Three |
| Axle specs. | FUWABrand |
| Suspension | Common mechanical Suspension |
| Wheel | 12.00R22.5 Vacuum tire/Triangle Brand |
| King Pin | JOST 3.5inch traction pin |
| Dimensions
(LxWxH) | 10800*2490*3950mm |
| Support legs | 28tons double speed |
| Rim | 9.00×22.5 Vacuum tireZhengxing Brand |
| Wheelbase | 7200+1310+1310mm |
| Steel Spring | 10 pieces per axles |
| Manhole | 3 pieces(Diameter is 500mm) |
| silo | One silos |
| Air compssor | 12m3 |
| Diesel Engine | Weichai/4100 |
| Electric Engine | Can be choosing freely according to customer requirement. |
| Tire: | |
| Number of Tire | 12 |
| Spare Tire Carriers | 2 pieces |
| frame:(specs. and materials) | |
| The material of
Tanker body | The tanker body made of 5mm steel plate,
the foreside head and back side head made of 6mm steel plate, the shape can be Vform. |
| Brake: | |
| Brake | |
| Brake Chamber | Four double and two single chamber( TKL brand) |
| ABS system | without |
| Electrical: | |
| Voltage | 24V |
| Receptacle | 7 ways(7 wire harness) |
| Light color: | |
| Side marker lamp | Orange |
| Rear lamp | Red |
| Turn signal lamp | Orange |
| Miscellaneous: | |
| Painting | According to the requirement of the buyer |
| Marking | According to the requirement of the buyer |
| Side Guard | According to the requirement of the buyer |
Professio
nal Production Line
Because trust, so cooperation. Sincerely look forward to your arrival.
Different types of semi-trailers
Box orVanSemitrailersare the most common type. Standard lengthsare 28 ft/32 ft/34 ft/36 ft/40 ft/45 ft/48 ft/53 ft/57 ft,etc.FlatbedSemi-trailersconsist of just aload floor and removable side rails and abulkhead in front to protect the tractor in the event of aload shift. They can haul almost anything that can be stacked on and strapped down.CarCarrierSemi-trailerscarry multiple cars, usually new cars from the manufacturer.Sometimes,car carriers often carry used vehicles as well. Similar variants can carry fork lift trucks, light commercial vehicles and agricultural tractors.DumpSemi-trailers (Tippers)are trailers in which one end can be raised to allow the cargo (often building materials or Agricultural produce) to slide out the other end. Commonly, they are hinged at the rear and raised at the front, but side-unloading dump trailers also are used.DryBulk (Powder tankers)Semi-trailersresemble big tankers,whichare used for cement, sand,barite, flour, and other dry powder materials.CurtainSidersSemi-trailersare similar to box trailers except the sides are movable curtains made of reinforced fabric coated with awaterproof coating. The purpose of acurtain sider is to combine the security and weather resistance of abox trailer with the ease of loading of aflatbed.LivestockSemi-trailersare used to haul livestock such as cattle, horses, pigs, sheep, etc. Commonly, they have two levels (or three for hogs) to maximize capacity.Lowboy(Low-loader)Semi-trailersare atype of flatbed in which the load floor is as close to the ground as possible, most commonly used to haul heavy equipment, cranes, bulldozers, etc.RefrigeratorBox Semi-trailersare box trailers with aheating/cooling unit (reefer) attached, used for hauling produce, frozen foods, meat, flowers, etc.Refrigerator tankSemi-trailersare well insulated or refrigerated to haul bulk liquid foods, such as liquid sugar, water, wine, milk or juices.SidelifterSemi-trailershave hydraulic cranes mounted at both ends of the chassis allowing for the loading and unloading of shipping containers without the need of aforklift or other container-handling equipment.Tank chassisSemi-trailersare used for hauling liquids such asgasolineandalcohol. some are designed with alowered centre of gravity to ensure greater stability. Generally bottom loaded with the ability to recover any waste vapor for safety reasons.
Payment Terms:
Payment Conditions:30% down payment by T/T and the balance payment should be T/T or irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.
