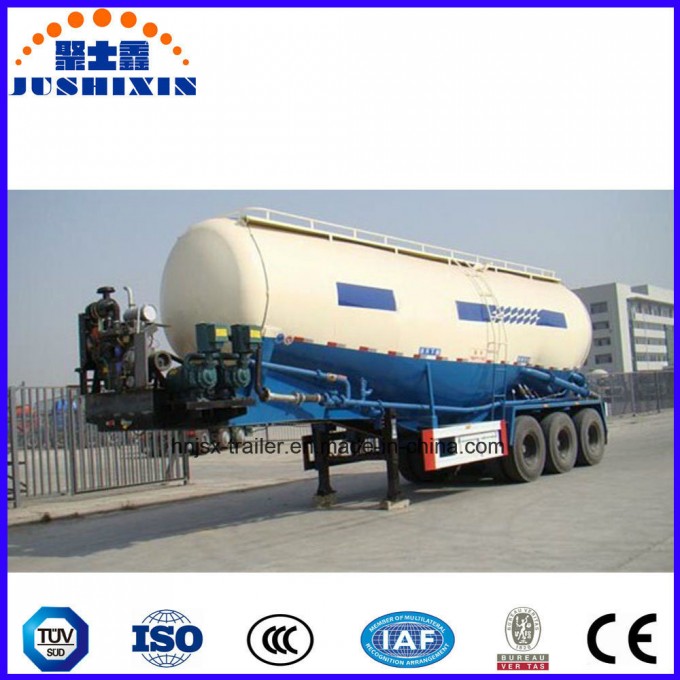

Factory Direct Sale 3Axles Bulk Cement Tanker Truck Semi-Trailer
Application:
3 axles bulk cement tanker truck semi-trailer is used to transport bulk cement.
It also can transport other bulk powder which is smaller than 1mm. such as flyash etc.
Advantage:
3 axles bulk cement tanker truck semi-trailer is able to delivery more cement by one trip,
and save packaging cost for user.
Parameter:| Dimension | 10700*2500*3950mm (L*W*H)
(It can be adjusted according to the tractor specification.) |
| Tare weight: | Approx. 9,800kg |
| frame &Structure: |
| Main beam: | Heavy duty and extra durability designed Ibeam;opting for high tensile steel Q345,
welded by automatic submerged-Aac processes.
Top flange 14mm;Middle Flange 8mm;bottom flange16mm. |
| Kingpin: | 2'' JOST bolt-in king pin |
| Welding standard: | All welding are to be done by qualified welder per applicable national standard |
| Painting: | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat.
Total DFT not less than 100um |
| Spray Wax | Anti-rust Wax Sprayed before Shipment |
| Running gear: |
| Suspension: | Mechanical suspension 60#,Leaf spring 90x16mm 10 pcs |
| Axle: | Axle 3pcs*13 ton Fuwa capacity, China |
| Brake system: | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .24V |
| Emergency relay valve: | WABCO relay valve |
| Tire: | 12R22.5 Triangle TIRE13pcs |
| Rim: | 9.0-22.5, 13 pcs. China |
| Landing gear: | JOST C200T |
| Tank: |
| Tank Shape | V-type |
| Thickness of the body | 5MM |
| Thickness of the Cover | 6MM |
| Air Compssor | Bohai 12CBM |
| Power | Weichai 4102 |
| Butterfly valve | 4inch |
| Manhole | 3pcs of500mm Diameter |
| Length for Discharge Hose | 6Meter 1pc |
| Electrical System: |
| Voltage: | 24 Volt |
| Receptacle: | 7 ways(7wire harness)and quick change type |
| Front marker lamp: | White |
| Side marker lamp: | White &Red |
| Rear lamp: | Red |
| Turn signal lamp: | Amber |
| Reflector: | Per customer requirement |
| Accessories: |
| Mud guard: | Assembled |
| Spare wheel carriers: | 1 pc |
| Tool box: | 1 piece |
| Tools for trailer | Head wrech ;spare wheel crank ;one fire extinguisher; Operation Manual |
Factory View:
