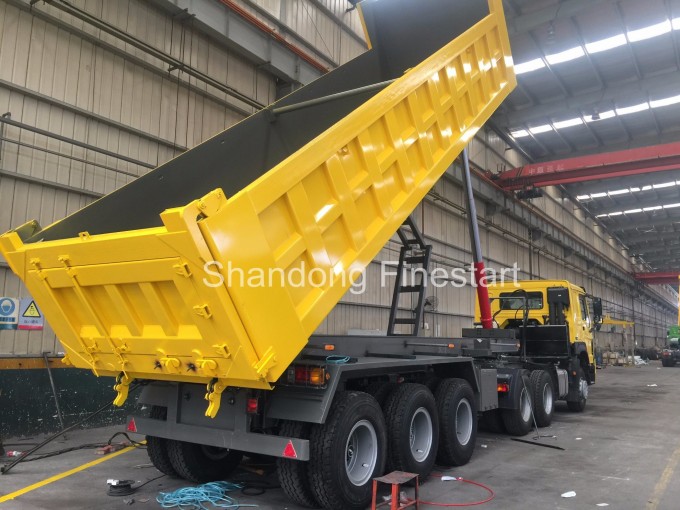

Rear Dump Semi-trailer 40TonDump Semi-trailers (Tippers)are trailers in which one end can be raised to allow the cargo (often building materials or Agricultural produce) to slide out the other end. Commonly, they are hinged at the rear and raised at the front, but side-unloading dump trailers also are used.

Rear Dump Semi-trailer 40Ton
Tipper Semi-Trailer (40T)
Tare Weight	11000kgs
Pay Load	29000kgs
Total Weight	40000Kgs
Overall Length	9300mm
Overall Width	2465mm
Overall Height	3726mm
Wheel track	1840mm
Wheelbase	4680mm+1310mm+1310mm
DUMPER BODY
Volume	23m3
Inner dimensions (L xW xH):	8400mmx2300mmx1160mm
Floor	8mm thickness
Side wall	6mm thickness
Front wall	8mm thickness
SPECIFICATION
Main frame	Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height, Top Flange 16mm,width 140mm; Middle Flange 8mm ;Bottom Flange 20mm,width 140mm
Hydraulic system	One set of HYVA FC191-5-06180 cylinder
Axle	Three Units of BPW 12Ton axle (optional for BPW copy or American style)
Suspension	A couple of FUWA (brand) mechanical tri-axle suspension, optional for air suspension
Leaf Spring	Six sets of reliable local brand, 8-piece leaf spring,16x90mm
King Pin	One unit of 90# standard kingpin
Landing Gear	Two-speed ,manual operation, heavy duty landing gear
Wheel Rim	13 units of 8.25R22.5 rims
Tyre	13 units of 11R22.5 tubeless tyre
Pneumatic Braking System	Two unit of WABCO RE 6relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber ,two unit of reliable local brand 40L air tank ;two units of reliable local brand standard coppery air-connector.
Electrical System	One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of 6-core standard Cable.
Painting	Sand blasting before painting; one coats of primer, anti corrosion; two coat of finish painting; color advised by client
Accessory	One box with aset of standard trailer tool

Different types of our semi-trailers,bring you into different world, where you can get different market!


Detailsdeterminesuccessorfailure!


Professional transportation service could guarantee accurate shippment and voyage.



It is such a delight tohavefriendscomingfromafar!
Sincerely look forward to your cooperation !

Payment Terms:
Payment Conditions:30% down payment by T/T and the balance payment should be T/T or irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.
