Detailed Description

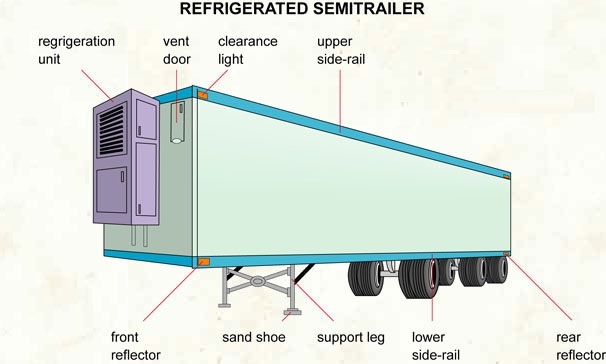

The refrigerated semi-trailer of 45ft
(1) Refrigerator semi trailer.
(2) 3Axle
(3) The Landing gear adopts brand JOST, and the King pin also adopts JOST.
(4) Leaf-spring suspension or Air suspension.
(5) Certification: ISO9001 CCC,SGS
| DIMENSIONS |
| Overall Dimensions | 15300*2280*3550 mm |
| Volume | 75 cbm |
| Photo for reference. Final products can be made according to exact requirements |
| SPECIFICATION |
| Chassis | Heavy duty and extra durability designed Ibeam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,height 500mm; Bottom Flange 16mm,width 140mm. |
| Axle | 4 axles of Germany design 12ton, 13 ton, 14 ton axle optional upon choice |
| Brand Name: BPW, L1 or FUWA-optional upon choice |
| Suspension | Germany design heavy duty mechanical suspension or air suspension optional upon choice |
| Floor | 3mm checker plate |
| Leaf Spring | Doll type Leaf spring |
| King Pin | JOST 2" Bolt-in King Pin |
| Landing Gear | JOST Two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 8.25-20 ,9.0-20, 8.25R22.5, 9.0R22.5, 11.75R22.5 steel wheel rim optional upon choice |
| Tyre | 11.00R20 ,12.00R20, 11R22.5,12R22.5 tire with one spare tire optional upon choice |
| Twist Lock | 12 nos. of ISO twist locks for 1x20ft, 2x20ft and 1x40ft container |
| Spare Tire | One set of spare tire including acarrier |
| Braking System | WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
| Painting | Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint |
| Accessories | One standard tool box with basic tools for trailer |
| Tare Weight | about 8.3T |
| Dimension | 13000mm*2490mm*3600mm (Outerside) |
| Loading Capacity (T) | ≤40 T |
| Axle | 13 T/, FUWAorHuajing Brand |
| Rim | 9.00-22.5 |
| Tire | 12.00R22.5 |
| Suspension | Mechanical suspension (Germany Type or America Type) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer |
| King pin | JOST brand 2.0inch bolts type |
| Support leg | JOST brand C200T |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,
down plate is 16mm ;Material is Q345B Steel . |
| Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
| Side Wall | Height: 2m, the material tope beam lead rail is aluminum alloy, the material of both side wall is cord fabric, the top cross beam moving with the cord fabric, there are four pieces vertical beam each side ,there is one layer of aluminum alloy plate between two beam. The logo can be choose freely . |
| Brake chamber | WABCO RE 6relay valve; T30/30+T30 Spring brake chamber(TKL brand); One piece of 45L air tank |
| Front and Back wall | Flat steel |
| Twist locks | 4 pieces |
| ABS | Optional |
| Valve | WABCO valve |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1unit Tire spanner,1 unit gudgeon sleeve and 1unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container.(if want shipping by containers ,the length should less than 12500mm ) |
Detailsdeterminesuccessorfailure!
Payment Terms:
Payment Conditions:30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.
