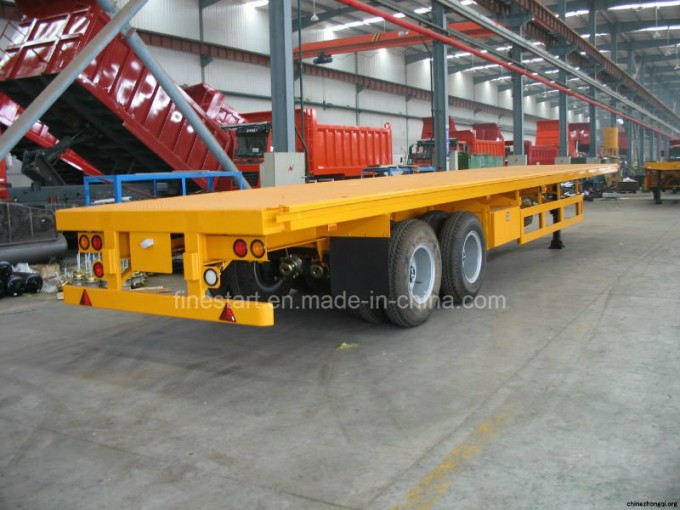

Chinese Container Semi-Trailer for container tranporting

Weight:
	loading capacity	40T
	Axle weight load	13T
Specification:
	Axle number	2-4
	Axle brand	FUWA/BPW/OPTIONAL
	Suspension	Common mechanical
	king pin	2''or 3.5'' traction pin
	Dimension(L*W*H)	13000*300*1650
	Support legs	28T
	Wheel rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
	Wheel base	6680+1310+1310
	Steel Spring	10/10/10 pieces per axle
	Twist Lock	8-12 sets of ISO twist lock for 1*20ft,2*20ft,1*40ft container
	Landing gear	Manualoperating, Heavy duty landing gear (Brand Optionalupon chioce)
	Floor	3-5Diamond plate
	Tool box	1 set
	Light	Tail lamp with turn signal, brake light & reflector,side lamp etc.
	Painting	1coat of anticorrosive prime,twice coats of final paint
Tire:
	Tire spec.	12R22.5Vacuum tire/11.00R20
	Number of tire	8 or 12 or 16 pieces
	Spare tire	2 pieces
frame:
	Main beam	The height of the beam is 500-550mm; Upper plate:16-22mm;Down plate is 18-25mm;Middle plate is 10-16mm.
	Side beam	20-25 channel or H steel
Brake:
	Brake brand	Optional upon choice
	Brake chamber	Six big chamber( Brand Optional upon choice )
	Brake system	Dual Line Brake system (ABS Optional upon choice)

Bulk Cargo Shippment
Details of our semi trailers

Different types of semi-trailersBox orVanSemitrailersare the most common type. Standard lengthsare 28 ft/32 ft/34 ft/36 ft/40 ft/45 ft/48 ft/53 ft/57 ft,etc.FlatbedSemi-trailersconsist of just aload floor and removable side rails and abulkhead in front to protect the tractor in the event of aload shift. They can haul almost anything that can be stacked on and strapped down.CarCarrierSemi-trailerscarry multiple cars, usually new cars from the manufacturer.Sometimes,car carriers often carry used vehicles as well. Similar variants can carry fork lift trucks, light commercial vehicles and agricultural tractors.DumpSemi-trailers (Tippers)are trailers in which one end can be raised to allow the cargo (often building materials or Agricultural produce) to slide out the other end. Commonly, they are hinged at the rear and raised at the front, but side-unloading dump trailers also are used.DryBulk (Powder tankers)Semi-trailersresemble big tankers,whichare used for cement, sand,barite, flour, and other dry powder materials.CurtainSidersSemi-trailersare similar to box trailers except the sides are movable curtains made of reinforced fabric coated with awaterproof coating. The purpose of acurtain sider is to combine the security and weather resistance of abox trailer with the ease of loading of aflatbed.LivestockSemi-trailersare used to haul livestock such as cattle, horses, pigs, sheep, etc. Commonly, they have two levels (or three for hogs) to maximize capacity.Lowboy(Low-loader)Semi-trailersare atype of flatbed in which the load floor is as close to the ground as possible, most commonly used to haul heavy equipment, cranes, bulldozers, etc.RefrigeratorBox Semi-trailersare box trailers with aheating/cooling unit (reefer) attached, used for hauling produce, frozen foods, meat, flowers, etc.Refrigerator tankSemi-trailersare well insulated or refrigerated to haul bulk liquid foods, such as liquid sugar, water, wine, milk or juices.SidelifterSemi-trailershave hydraulic cranes mounted at both ends of the chassis allowing for the loading and unloading of shipping containers without the need of aforklift or other container-handling equipment.Tank chassisSemi-trailersare used for hauling liquids such asgasolineandalcohol. some are designed with alowered centre of gravity to ensure greater stability. Generally bottom loaded with the ability to recover any waste vapor for safety reasons.Sincerely look forward to your cooperation !

Payment Terms:
Payment Conditions:30% down payment by T/T and the balance payment should be T/T or irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.
