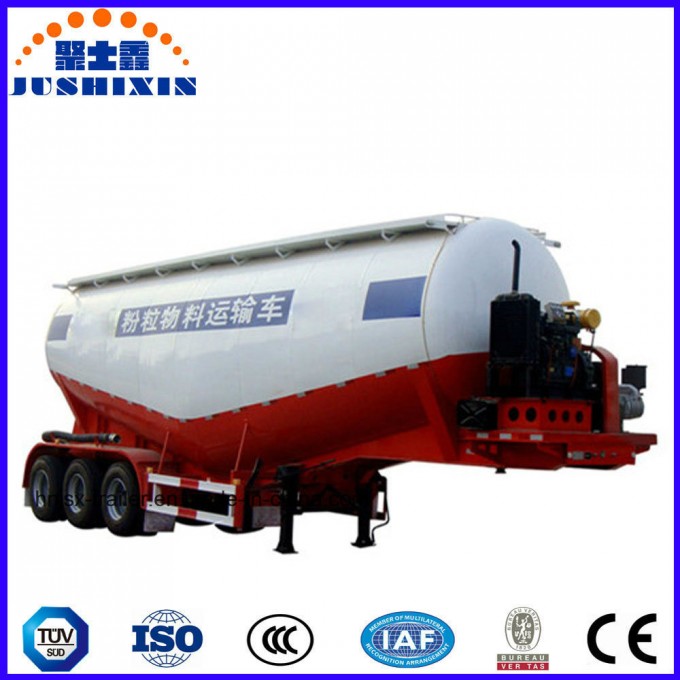

3axle 45m3 Bulk Cargo/Cement/Utility Powder Tanker/Tank Truck Tractor Semi Trailer

3Axle 45m3 Bulk Cargo/Cement/Utility Powder Tanker/Tank Truck Tractor Semi Trailer

1.The related Specification for this 45CBM Bulk Cement tanker semi trailer:

Dimension:
	Length:	9610
	Width:	2,500mm
	Height:	3,995mm
	Axle spacer:	4,800mm+1,310mm+1,310mm
(The above dimension will be adjusted according to the tractor specification.)
Weight:
	Payload:	38CBM
	Tare weight:	Approx. 8,200kg
	G.V.W.R.:	Approx. 54,200kg
Chassis & Tank body:
	Main beam:	T700, design for bulk cement tank trailer
	Dish ends:	Q345B, thickness=4mm
	Tank Shell:	620JJ, thickness=3mm
	Kingpin:	LUXING3.5" Kingpin, bolted type
	Discharge pipe & hose:	4" X 6M hose steel wire reinforcement, 1 pc
	Manhole:	2 sets standard manholes, 500 mm diameter
	Working pssure:	0.2Mpa

	Test pssure:	0.3Mpa
	Welding standard:	All welding are to be done by qualified welder per applicable national standard
	Painting:	Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um
Running gear:
	Suspension:	Mechanical suspension with equaliser, leaf spring 13mmx90mm, China
	Axle:	FUWA 150x150 square beam axle, 3pcs*13 ton capacity
	Brake system:	Dual line pneumatic brake, with hose and connector
	Brake chamber:	T30/30 spring brake system on 2axles, T30 spring brake system on 1axle
	ABS:	XIHE
	Air tank:	50L, 2 pcs, China
	Emergency relay valve:	Made in China
	Tire:	Chinabrand, 12R22.5, 12pcs.
	Rim:	9.00*22.5 steel disc wheel, 10 holes ISO, 12pcs.
	Landing gear:	28Ttwo speed telescopic manual landing gear
Electrical System:
	Voltage:	24 Volt
	Receptacle:	7 way socket standard, China
	Light:	Standard, LED type
	Reflector:	Per customer requirement
	Wiring:	Electric cable protected by PVC conduit on main frame
Accessories:
	Diesel engine:	Weichai (Huafeng):4102P, China
	Air compssor:	BOHAI:12m³, double cylinder, China
	Ladder:	Equipped
	Water tank:	None
	Mud guard:	Steel mud guard
	Spare wheel carriers:	2 pcs
	Tool box:	1 pc

2.Optional parts for the tanker semi trailer:
Axle quantity: 2 axle 3axle 4axle
Axle brand: FUWA /BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Volume: 10 cube meters to 70 cube meters
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.

3.More styles of the Bulk Cement Tanker Trailer

4.Our advantages:
***With well experienced semi trailer production company to offer high quality and competitive prices semi trailer to our worldwide valuable customers.
***An professional team which is experienced with international market has strong technical capability to customized cost effective.
***Sell well in the international markets, such as African market (Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market.
***2 years guarantee for all the beam of trailers, timely shipment
Cutting,Forming:



Welding:

Polishing,Panting:

5.Detailed photos for the Bulk Cement tanker truck semi trailer:

6.Guarrantee for the parts of the tanker traielr:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

7.Some photos of our customers' visiting:

8.Buying Guides
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
