Production notes:

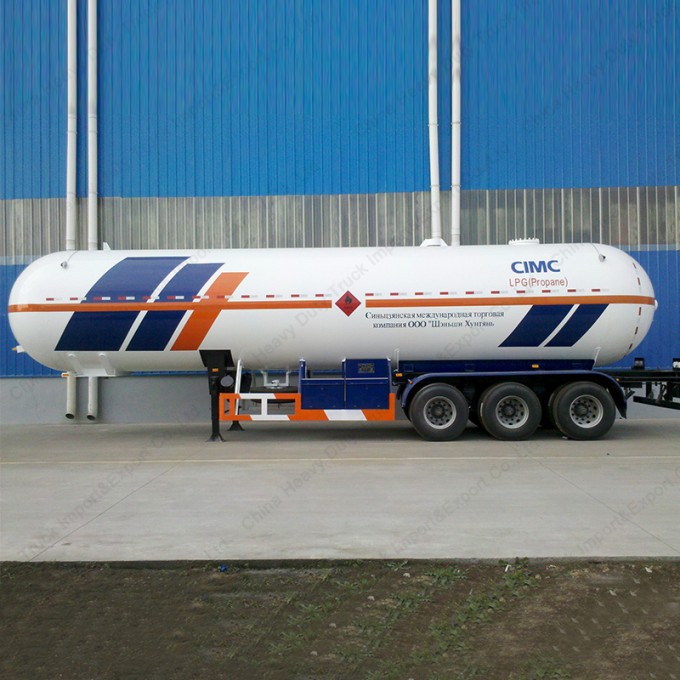

1, certificate ISO9001,3C standard 3axle LPG tanker semi-trailer
2 High quality, low price.
3 Loading LPG tank volume 58.5m3
4 Fuwa, L1 or BPW 3axles.
5,Very Safety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
Tare Weight | 11500KGS | |
Pay Load | 25000KGS | |
Overall Length | 11400mm | |
Overall Width | 2480mm | |
Photo for reference,More product information please consultthe product manager. | ||
Tank | ||
Transporting Media | Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane | |
Shape | Round Shape | |
Total Volume(m3) | 56CBM | |
Tanker Body Steel Sheet | Q235A/14mm | |
End plate | Q235A14mm, by punching | |
Parts for Tank | ||
Manhole cover | 3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve | |
Unloading valve | 2-3sets of DN80 fixed at button of Tank | |
Pipeline at button of tank | 4"seamless steel tube/Q235 | |
Labeling system | Oil Type Indication | |
Anti-static electricity system | pulling, wire carrier, sheet copper (6sheet-standard layout) | |
Other Parts | ||
Ladder | 1 unit at front of Tank | |
Guard on top of Tank | Zinc galvanized -guard-net | |
Oil hose box | Circular single hole tube, 1unit on each side | |
Oil hose | 2 unit, 3" x6m size in black rubber | |
Side guard | cross bar-structure | |
Rear button guard | Fixed type | |
Work tank deck | Box type | |
Fire extinguisher box | 2 unit at the back of each side | |
Mud guard | Steel structure in trapezoid form | |
Lights and wire | 24V, 7coils with lights for parking, reverse, instruction, head lamp and end lamp | |
Chassis | ||
Main Beams | Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes | |
Axle | 3axle | |
BPWbrandFUWA brand | ||
Landing Gear | JOSTTwo-speed, manual operating, heavy duty landing gear | |
King Pin | JOST2"standard bolt-in king pin | |
Suspension | German design mechanical suspension | |
Pneumatic Braking System | WABCO RE 6relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | |
Wheel rim | 8.25R22.5wheel rim | |
Tire | 11R22.5 tubeless tire with one spare tire | |
Painting | Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint | |
| Q1: Iwant the front two tires are bias tires and the rear 9tires are radial tires, is it ok ? |
| A: We can make the tires as your requirement to suit your country's need. |
| Q2: What about your products quality ? |
| A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning! |
| Q 3: Can ihave samples of this type of flatbed semi trailer to test the quality ? |
| A: Yes, you can buy any samples to test the quality,our MOQ is 1unit. |
| Q 4: What others we can do ? |
| A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security. |
| Q 5: How to guarantee customers get the goods smoothly after they pay ? |
| A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in awhile, and we will help you to book the latest ship. |
| Q 6: What's the delivery time ? |
| A: The delivery time is within 15 working days after receiving your advance payment. |
| Q 7: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc. |
| Q 8:Do you have any used truck and semi trailer for sale ? |
| A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll show you our stock if you need. |
| Q 9:Which INCOTERMS 2010 TERMS can we work ? |
| MAOWO is aprofessional and sophisticated international player, can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, CIP, EXW. |
| Q 10:What logistics ways we can work for shipment? |
| A: We can ship construction machinery by various transportation tools. (1) For 80% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment. (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laosetc.,we can ship construction machinery by road or railway. (3) For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex. |
