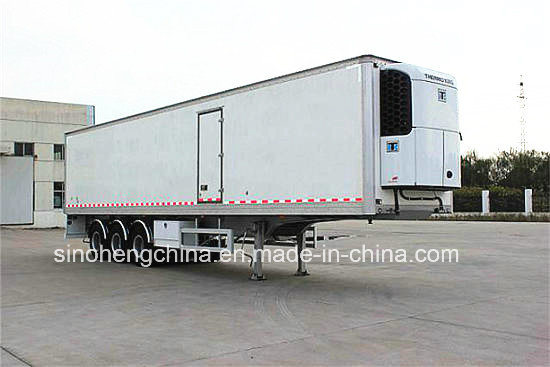

45FT 3 Axles Refrigerator Semi Trailer/Freeze Truck Trailer

45FT 3 Axles Refrigerator Semi Trailer/Freeze Truck Trailer
We are dealer of China top brand and top selling semi trailers , this cargo semi trailers factory can customize as customer's requirements. Like side wall semi trailer, fence semi trailer, trailer for transport cattle,stake semi trailer, drop side semi trialer, side trailer, fence trailer, trailer for cattle,utility trailer siding,cargo semi trailer,trailer for cargo,trailer,semi trailer,trailer for goods,semi trailer for goods,container semi trailer etc.

Type	45 FT 3 axles refrigerator semi-trailer
CHASSIS
Curb Weight	8 tons
Outer side dimension(mm)	12500mm*2500mm*1600mm
Loading Capacity (Ton)	40 ton
AXLES	FUWA BRAND 13 T /PER , 3 AXLES
Tire	11.00R20,12pieces
Suspension	Mechanical spring suspension
Spring leaf	10 pieces or intensify
King pin	50/90mm
Support leg	28T
Main beam	Height: 500mm, upper plate is 16mm, middle plate is 8mm, down plate is 16mm side beam is 16#
Platform	4mm steel platform
Side wall	Height:600mm, Thickness:1.5mm
Brake chamber	2 line pneumatic chambers,WABCO brand brake system
Light	brake light,back and side light,Reflector and marking at side and rear
Voltage	24V electric system
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m*0.5m*0.5m
Spare wheel carrier	2 pieces
REFRIGOR BODY
Cooling machine brand	USA THEREMO
Model	SLXE400
Cooling machine descriptions	ARI standard,environment temperature 37.8°C,ETV
Temperature	2°C-- -18°C
Engine model	TK486V,23.5kw
Compssor machine	X430CS,492ml displacement
Cryogen	R-404A,5kg
Body inside capacity	73m³
Body descriptions	Floor and top thickness:105mm,side:83mm
Doors	Rear :double doors,side:simple single door
Others	40 mm aluminum railway on floor

Tank Trailer Details :

Our Semi Trailers :

Packaging &Delivery:
Packaging Details: Naked, maxed before shippment
Delivery Detail: 25 days after diposit
Our tanker trailers production line :

Payment terms:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished.
2. L/C at sight .
After-sales Service:
1. Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .
Shipment pictures for your reference:
1. Two units flat bed semi trailer put into one 40HQ container , the trailer part connecting by the bolts with the trailer body
2. or shipping by bulk cargo ship or roro ship

We could offer you good quality and best price semi trailers , you have any things that need us to help , please feel free to consult with us .
