13m Tri-Axle Heavy Duty Cargo Transport Truck Trailer

Product Description:
1, We have well experienced in reseaching and developing different trailers: Container trailer, low bed trailer, side wall semi trailer, stake semi trailer, tank trailer and heavy duty trailer etc.
2, High tensile strength steel Q345B for I-beam
3, Axle: German or American style from 12 tons to 20 tons
4, Suspension: Mechanical suspension, air suspension or bogiesuspension.
5, Tyre: 10.00R20, 10R22.5, 11.00R20, 11R22.5, 12.00R20 or 12R22.5 (Other size is optional)
6, King pin: Optional for 2" or 3.5" Kingpin
7, Landing gear: "Jost" landing gear

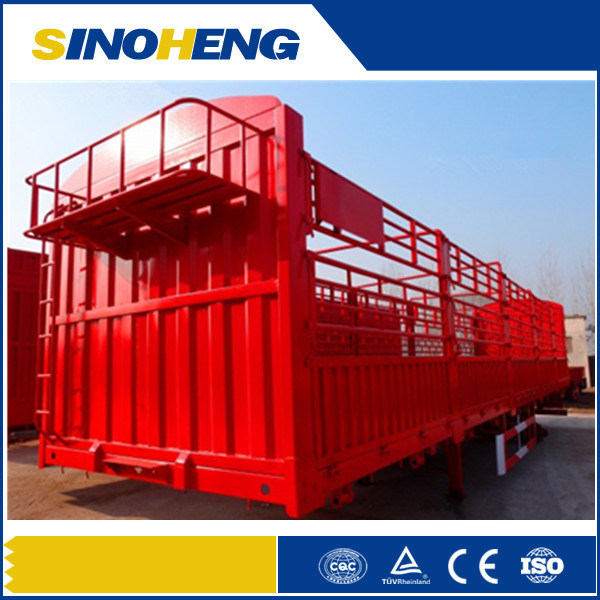

Side Wall Semi Trailer
Assembly	Composition	Specification	Optional
Dimensions	Size(LxWxH)	12450x2500x2180mm
	Curb weight	7500kg
	Loading weight	60000kg
Chassis	Main beam	Q345 Steel; The height of the beam is 500mm; Upper plate is 14mm; Middle plate is 8mm; Downplate is 16mm.
	Cross beam	16# channel steel
	Side beam	25# channel steel
	King pin	2'' or 3.5'' traction pin	Optional JOST
	Floor	3mm diamond steel plate
	Fence	1.5m steel plate 600mm height, fence 500mm+200mm
	Support leg	China brand 28Tons (Double speed)
Suspension	Type	Common mechanical	Optional Air suspension
	Steel spring	90(W)mm*13(Thick)mm*10 Layer
Axle	Brand	Fuwa(13000kgx3)	Optional BPW
	Wheel rim	9.0-22.5 steel wheel rim
	Tire	12.00R22.5(12 pcs)	Optional 12.00-20
Brake system	Brake chamber	WEBCO, 6 big chamber
	Brake valve	KTL/WEBCO
	Brake syste	Dual line brake system	Optional ABS
Other	Light	Tail lamp with tum signal, brake light & reflector, side lamp etc.
	Landing gear	28 Ton manual operating, heavy duty landing gear.	Optional JOST
	Tool box	1 set standard tool box
	Spare tire carrier	2 pcs
	Painting	1 coat of anticorrosive prime, 2 coats of final paint.

ank Trailer Details :

Our Semi Trailers :Packaging &Delivery:
Packaging Details: Naked, maxed before shippment
Delivery Detail: 25 days after diposit
Our tanker trailers production line :
Payment terms:
1. 30% contract value as the deposit by T/T,70% contract value payoff before delivery time after production finished and inspection .( you can sent one technical person come to test our semi trailer after production finished.
2. L/C at sight .
After-sales Service:
1. Out grantee term is 6 months. We will sent the engineer for mending the semi trailer for free within the six month , but you should pay the air-ticket fees go and back , and supply the food and room in your country .
Shipment pictures for your reference:
1. Two units flat bed semi trailer put into one 40HQ container , the trailer part connecting by the bolts with the trailer body
2. or shipping by bulk cargo ship or roro ship

We could offer you good quality and best price semi trailers , you have any things that need us to help , please feel free to consult with us .
