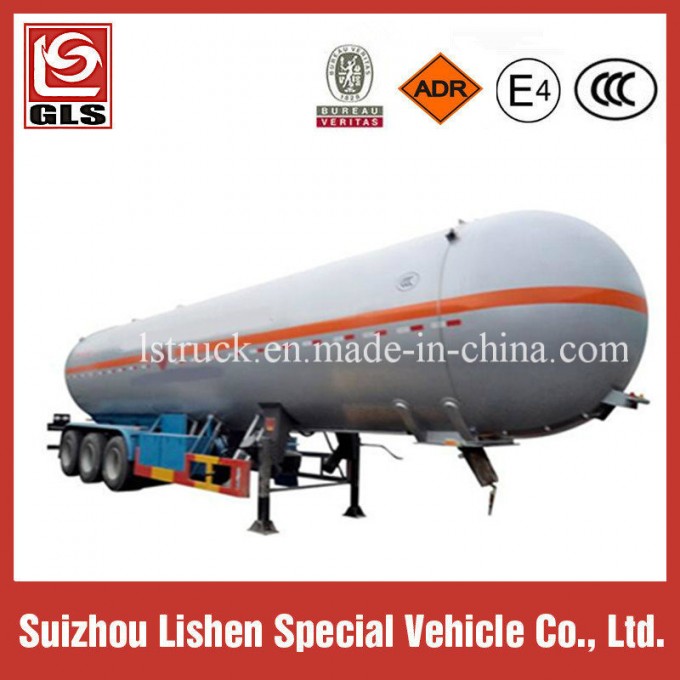

LPG truck is one of pssure vessels. It's used to transport liquid petroleum gas. It also called LPG tank truck, LPG transport truck.It's used for transporting liquefied gas such as propane, propylene, dimethyl ether, liquid ammonia, methylamine, acetaldehyde, etc.
Liquefied gas tanker, according to loadingmaterials can be divided into,propane transport truck, propylene transport truck, dimethyl ether truck, liquid ammonia transport truck, methylamine transport truck, acetaldehyde transport trucks and etc.
According to thedifferentprocess and load capacity can be divided into,liquefied gas transport truck, liquefied gas semi trailer, liquefied gas storage tank. The liquefied gas storage tank can be dividedinto: underground storage tanks and above ground storage tanks.
Item | Unit | Parameter | ||
Product name | 3 axle semi-trailer | |||
Practical capacity | M3 | 45.3 | ||
Gross weight | kg | 40000 | ||
Curb weight | 16440 | |||
rated loading capacity | 23560 | |||
Overall dimension | mm | 11360*2490*3980 | ||
Axle | 3 | |||
Wheelbase | 5100+1320+1320 | |||
Tread | Front tread | - | ||
Rear tread | 1840/1840/1840 | |||
Front/rear suspension | mm | -/1745 | ||
Leaf spring | -7/7/7 | |||
Fifth wheel max loading | kg | 16000 | ||
Tyre specification | 12.00-20 | |||
Exclusive configuration | Tank material | Q345R | ||
Standard configuration | 12T BPW axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pssure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppssion bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield. | |||
Other | Filling Medium:liquid ammonia:design pssure 2.16Mpa,design temperature 50°C,filling ratio:0.52t/m3,corrosion allowance:1mm:dimension of tank:10924*2426mm . | |||
Standard configuration | GB150-1998<Steel pssure vessels>,Supervision regulation on safety technology for pssure vessel,Supervision regulation on safety technology for Liquefy gas tank truck | |||
