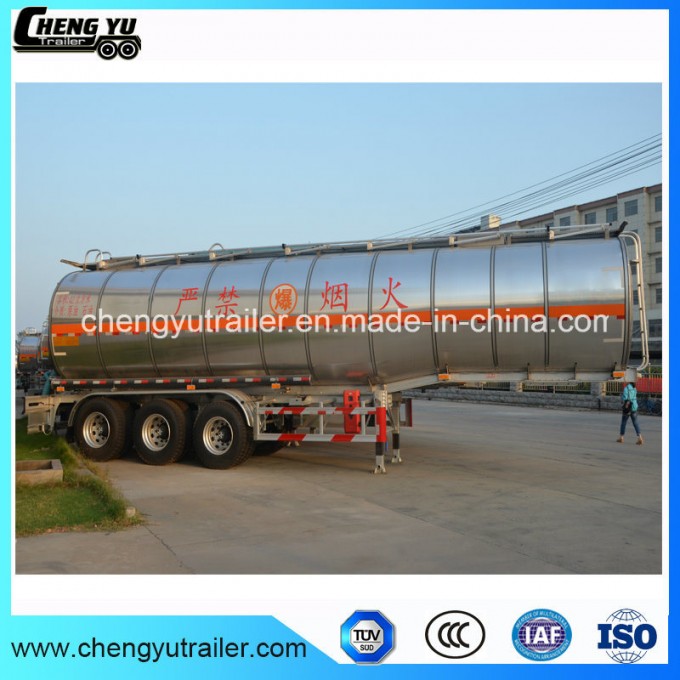

3 Axles 46m3 Petrol Diesel Oil truck trailer Fuel Tank Semi Trailer
Specifications
| Tank body |
| Model Nunber | SKW9400GYYA |
| Shape | Roundor Suare(Optional) |
| Dimension | 12000*2500*3900mm(Exact size depends on the final design) |
| Tare Weight | about9300kgs |
| Capacity | 46,000 liters |
| The tank body material | 5mmQ235 Carbon steel plate. |
| The foreside and back side head | 5mmQ235 Carbon steel plate |
| Bottom Valve | AluminumBottom Valve,1set |
| Discharging Valve | Diameter is 3or 4inch |
| Compartments | Optional |
| Discharging Pipe | 4"Rubber tube ,2pieces ,6m/each |
| Chassis |
| Main Beams | CarbonsteelQ345 |
| Axle | 3 axlesFUWA/BPW/HUAJINGbrand |
| King Pin | JOST2.00or 3.5inch bolt-in king pin |
| Suspension | MechanicalSuspensions/Germany or America type/air suspension |
| Leaf Spring | 90(W),,*13(Thickness)mm*10 Layer or 100mm*12mm*12/without |
| Braking System | WABCORE6replay vavle;Spring brake chamber(TKL Brand);2 pieces of 45Lair tanks |
| Rim | 9.0-22.5 |
| Tire | 12R22.5Brandcan be Optional |
| ABS | 4S/2M |
| Fire extinguisher | Two pieces8KG |
| Spare Tire Carrier | 2 pieces |
| Side,rear safty guard | With |
| Painting | Complete Chassis sand blasting to clean rust,I coat ofanticorrosiveprome,2 coats of final paint |
| Accessories | One standard tool box |
| LED Light | One set |
Packing
Nude and waxed by bulk cargo ship or Ro-Ro ship or flet deck, and Containers..
We use best transportation solution to save your sea freight cost.
The photos of the Production process for the 3 Axles 46m3 Petrol Diesel Oil truck trailer Fuel Tank Semi Trailer
Our Factory
Chengyu Trailer belo
ngs to Chengyu Group which is one of the biggest manufacturers for all kinds of trucks, especially for the semi trailers and parts in shandong. located in the famous "Water Margin" hometown -- The "China Special Vehicle Production ba
se".Chengyu Group has more than500 Staffs, including one 20 Years'experienced engineering technicians team. With an annual output production capacity of 20,000 sets of special purpose vehicles, 100,000 pieces of semi trailer axles50,000 sets suspensions.
As aleader of China special vehicle industry, Chengyu got the recognition and support by vast number customers and friends during the past 20 years development, Chengyu is willing to cooperate with customers and friends all over the world to create abrilliant tomorrow.
Product Des
cription
Chengyu Trailer is the special vehicle manufacturer, we specialized in many kinds of trailers, special vehicle and various truck parts, such as tank trailer, flatbed semi trailer, skeleton semi trailer, low bed semi trailer, dumping semi trailer, oil tanker semi trailer, bulk cement semi trailer and so on."Chengyu" brand axle, air Suspension, landing gear and other parts are also popular used by all over the world customers. Also we can customized production for our customers.
Chengyu relies on the world first-class production line, professio
nal R&D, technical team and skilled workers has won the IS09001: 2000, ISO/TS16949:2009 and won the title of Brand-Name Products In Shandong Province and USA DOT Certificates.
FAQ
1. Can Ihave samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1unit.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 30 workdays after we received your ppayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can you supply some quick-wear trailer parts?
Yes, we can supplythe trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc
4. What's the payment method?
30% TT before produce and 70% TT before shipment .
