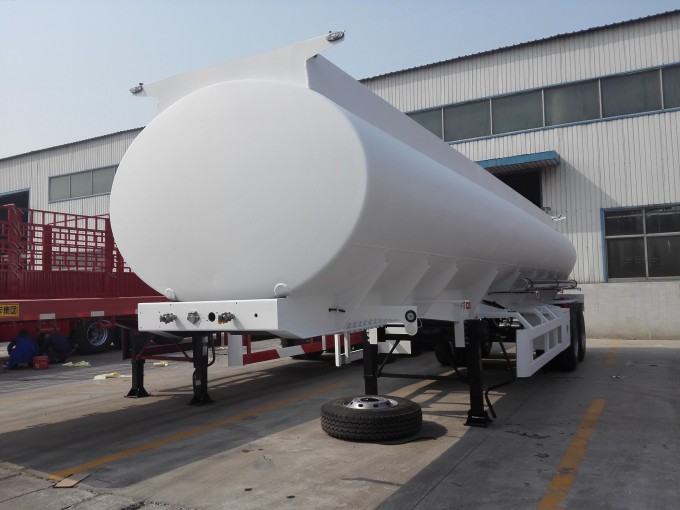

50 Tons Fuel Tanker/ Truck 50000 Liters Tank Truck Semitrailer

1.SPECIFICATION
GENERAL

LENGTH xWIDTH xHEIGHTAccording to axle number and volume requirement
TANK INSIDE VOLUME32 -60 CBM
PAY LOAD30 -60 tons

RUNNING GEAR

SUSPENSION Air suspension or Mechanical (multi leaf spring) Suspension with equalizer beam
DRUMS Outboard mounted, hub piloted cast steel
HUBS Cast steel 8or 10 studs
WHEELS Steel disc
TIRES Nylon, radial or tubeless tires, famous brand, include 1spare tire
AXLES 2, 3or 4axle, BPW, SAF, FUWA, LT or ANQIAO brand, 12 -20 tons payload per axle
BRAKES Dual line brake system, non-asbestos, includes automatic slack adjusters
ABS SYSTEM Available upon request
VALVE WABCO or SEALAND emergency relay valve
BRAKE CHAMBER TGL or FUWA 30/30 chamber, air-actuated

UNDERframe

MAIN BEAM Ishape, Mild Alloy (Q345B, tensile strength 34.5kg/mm^2) by Automatic submerged arc welding. Top Flange 16mm, Button Flange 16mm;Middle Flange 6mm thickness
CROSS BEAM Ushape, Mild Alloy Q345B, tensile strength 34.5kg/m^2
KING PIN JOST or FUWA brand, 2", 2.5" or 3.5",welded or bolted in type
LANDING GEAR JOST, FUWA, Baohua Holland brand, Static capacity 25 Tons
MUD FLAPS Anti-sail, mounted on sliding tandem
BUMPER Heavy duty bumper at the end
APPENDIX 1toolbox
2 Spare tyre carriers
2 Units of Manhole Seal
2" flexible hose
TANK BODY
MATERIAL Q235A Plate or stainless sheet
SHAPE Vshape, elliptic shape or cylinder shape structure
MANHOLE 2sets, compact by rotating
END PLATE Q235A Plate or stainless sheet, ball shape

AIR COMPACT SYSTEM (FOR OPTION)
AIR COMPRESSORChinese famous brand
DISEL ENGINE Chinese famous brand
FILTRATION AND PRESSUE ConTROLAt output of air compssor
AIR ROUTE SYSTEMMain hole, check valve, safe valve, gauge

Guard System
GUARD ON TOP OF TANKChequered plate
SIDE GUARD Cross bar structure
REAR BUTTON GUARDFixed type

Discharge System
DISCHARGE MEANSSeamless steel tube at button of funnel and through top of axle
QUADRATIC BLOWSame direction as discharge tube, with ball valve and check valve DISCHARGE VALVEDisc valve fixed inside middle of rear guard
PIPELINE CLEANING EQUIPMENTAt beginning of discharge tube
TANK CLEANING EQUIPMENTRubber flexible hose

ELECTRICAL &PAINT

LIGHTS, REFLECTORSRear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
WIRING 24V, 6lines
AIR/ELEC. ConNECTORISO standard air connector,
24V 7-pin plug socket
PAINT Sand blasting before painting
1 coat of anticorrosive primer
2 coats of finish urethane paint
Color as per request
