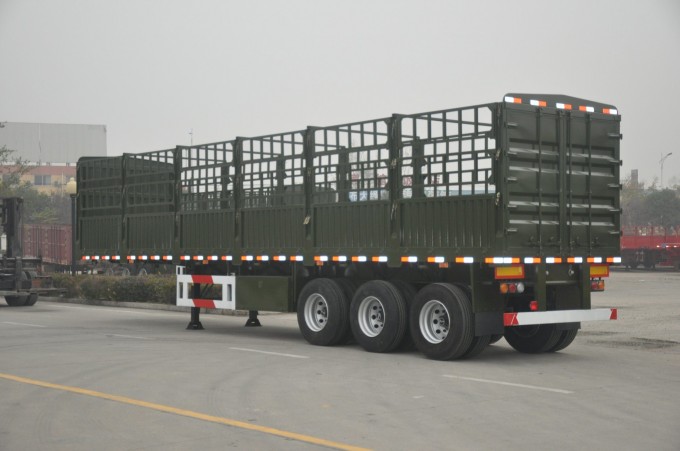

Wallside Truck Semi Trailer/Carbon Steel Wall Side Semitrailer

1.SPECIFICATION
GENERAL

LENGTH xWIDTH xHEIGHT12500 x2500 x3000mm
PAY LOAD30 -60 tons

RUNNING GEAR

SUSPENSION Air suspension or Mechanical (multi leaf spring) Suspension with equalizer beam
DRUMS Outboard mounted, hub piloted cast steel
HUBS Cast steel 8or 10 studs
WHEELS Steel disc
TIRES Nylon, radial or tubeless tires, famous brand, include 1spare tire
AXLES 2, 3or 4axle, BPW, SAF, FUWA, LT or ANQIAO brand, 12 -20 tons payload per axle
BRAKES Dual line brake system, non-asbestos, includes automatic slack adjusters
ABS SYSTEM Available upon request
VALVE WABCO or SEALAND emergency relay valve
BRAKE CHAMBER TGL or FUWA 30/30 chamber, air-actuated

UNDERframe

MAIN BEAM Ishape, Mild Alloy (Q345B, tensile strength 34.5kg/mm^2) by Automatic submerged arc welding.
CROSS BEAM Ushape, Mild Alloy Q345B, tensile strength 34.5kg/m^2
PLATFORM3mm thickness checkered sheet as floor. U-profile beams with reasonable interval as supporting beam, longitudinal cross member made of Uchannel. Width of platform is suitable for standard container. Side pillars are available upon request.
SIDE WALLHeight 1500mm(600mm closed, 900mm mesh) made of 1.5mm corrugated sheet with 4nos ratchets each side
KING PIN JOST or FUWA brand, 2", 2.5" or 3.5",welded or bolted in type
LANDING GEAR JOST, FUWA, Baohua Holland brand, Static capacity 25 Tons
MUD FLAPS Anti-sail, mounted on sliding tandem
BUMPER Heavy duty bumper at the end
APPENDIX 1toolbox
2 Spare tyre carriers

ELECTRICAL &PAINT

LIGHTS, REFLECTORSRear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
WIRING 24V, 6lines
AIR/ELEC. ConNECTORISO standard air connector,
24V 7-pin plug socket
PAINT Sand blasting before painting
2 coat of anticorrosive primer
2 coats of finish urethane paint
Color as per request
