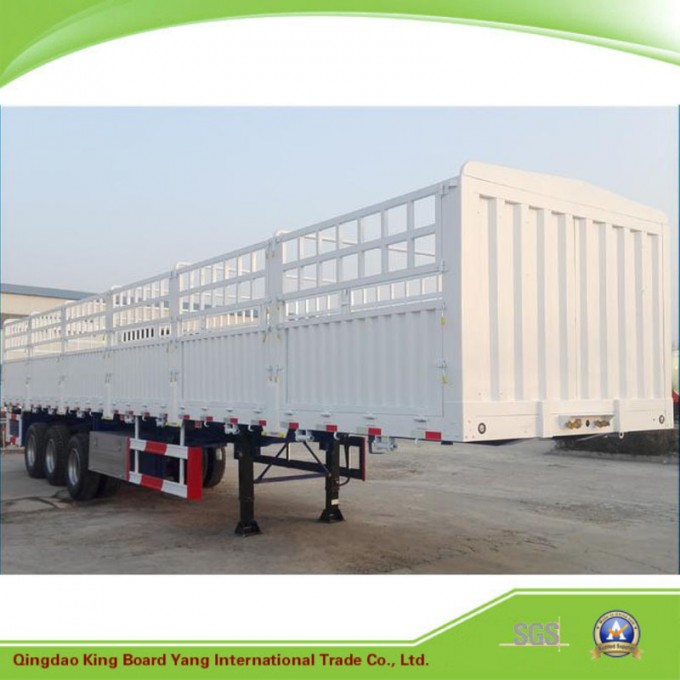

| 3 AXLE STAKESEMI TRAILER | |
| DIMENSIONS | |
| Tare weight | 8000kg |
| Size | 12700mm*2600mm*3100mm |
| Payload | 40Ton |
| Main beam | Heavy duty and extra durability designed Ibeam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height500mm;bottom flange16mm,width 140mm |
| Side beam | 16# channel steel(Q235) |
| Cross member | 10# channel steel(Q235) |
| Floor | 3mm checkered plate |
| Side wall | 800mm side wall+700mm fence |
| Front board | Height 1500mm |
| Axle | 3 axle FUWA brand 13T |
| Suspension | Mechanical suspension American type local brand |
| Leaf spring | Leaf spring 10pcs*90*13mm |
| Tire | 1200R20 *12pcs |
| Wheel rim | 8.5-20 *12PCS |
| Kingpin | JOST brand 2"/3.5"bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Twist lock | 12sets for 1x40FT,2X20FT,1X20FT. |
| Electrical system | Voltage 24V, Receptacle 7 ways (7 wire harness), Use high-grade LED lights. One set 6-core standard Cable. |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint, |
| Accessories | One tool box,one spare tire carrier,one crank,one shaft headwrench, |
| Date of delivery | 20 workdays |
| FAQ: |
| 1. Q:Can I have samples of this type of trailer to test the quality? A:Yes, you can buy any samples to test the quality,our MOQ is 1 set. 2. Q:How long do you need to finish a trailer? A:It usually takes round 10 days to finish the common low bed trailer, container trailer, skeleton trailers after confirming the order. Oil tanker trailr , bulk cement trailer and special trailer needs round 20 days. 3. Q:How about your after-sale service? A: We provide trailers and truck parts, technical support, etc for your all life once we have reached the deal and placed order from us. 4. Q:What's the payment method? A:TT 30% as Deposit, Balance Before shipment by TT or L/C at sight 5. Q:Canyousatisfymyspecialrequirement? A:Definitely!Wecandiscuss thepracticableplanandproduceitasyourrequest. 6. Q:What'syour warranty? A:Allofourtrailers are producedstrictwithISOstandard,youneedn'tworryaboutit. Certainly,ifyourtrailerpartswearout,wecanprovidesuitablepartsforyou. |
