3 Axle LPG Gas Tank Truck Semi Trailer

3 axle lpg gas tank truck semi trailer



Specifications

Items					Data	Items					Data
	Gross Vehicles Weight (GVW)				40000 Kg		Design temperature				≤50ºC
	Payload				25000Kg		Filling medium				LPG(LiquidPropane)
	Tankcapacity				50m3		Tank material				Q370R
	Pressure of leak test				1.61Mpa		Corrosion allowance				1.0mm
	External Dimensions				13000×2500×3990mm		Heat treatment method				PWHT
							Curb weight				15000Kg
							Hydraulic test pssure				2.74Mpa
	Full load		Fifth wheel load		16000Kg		TankDimensions(Inner diameter×wall thickness×length)				2475×11.5×12837 mm
			Rear axle load		24800Kg
	Max. vehicle roll angle				>350
	Design the limited velocity		Straight road		80 Km/h		Vessel's sort				The third kind
			Turning		20 Km/h		Service Years				Ten years
U. V	Type	QGJ43F-2.5 Or FISHER internal valve C427-16-25 C427-24-50				S . V	Type	A412F-2.5 Or FISHER Relief valve H732-275
	Nominal pssure				PN2.5Mpa		Model				Inner full lift
	Nominal diameter		Gas phase		DN 25mm		Nominal pssure				PN2.5 MPa
			Liquid phase		DN 50mm		Nominal diameter				DN80mm
	Operation way				Manual		Opening pssure				1.92~2.01 MPa
	Closing time				10 Sec		Closing pssure				>1.54 MPa
	Melting switch temperature				70±5ºC		Complete opening pssure				<2.19 MPa
I. L	Type				YWJ-2.5A RN1200	L.U. S	Valve type				Q41F-2.5P /CQA41F-25P
	Model				Rotary type		Model				Quick tie-in
	Nominal pssure				PN2.5Mpa		Nominal Diameter		Gas phase		DN25mm
	Surveying range				0~2400mm				Liquid phase		DN50mm
	Precision				2.5 Grade
Wheel base				7230+1310+1310mm			Tire			12R22.5 tubeless tire
Axle				13T FW
Standard configuration				Bilateral loading and unloading, two valve boxes, two toolboxes, safety valve, thermometer, pssure gauge, emergency shut-off valve, ,a spare tire, Jost leg, Jost traction pin, fire extinguisher
Production cycle				40 workingdays

Product Features

1. The vehicle is used to transport liquefied natural gas (LNG) specially.
2. It has been in liquefied petroleum gas transportation research for 20 years.
3. The landing gear use JOST, FUWA, but Chinese brand spare parts is also available.

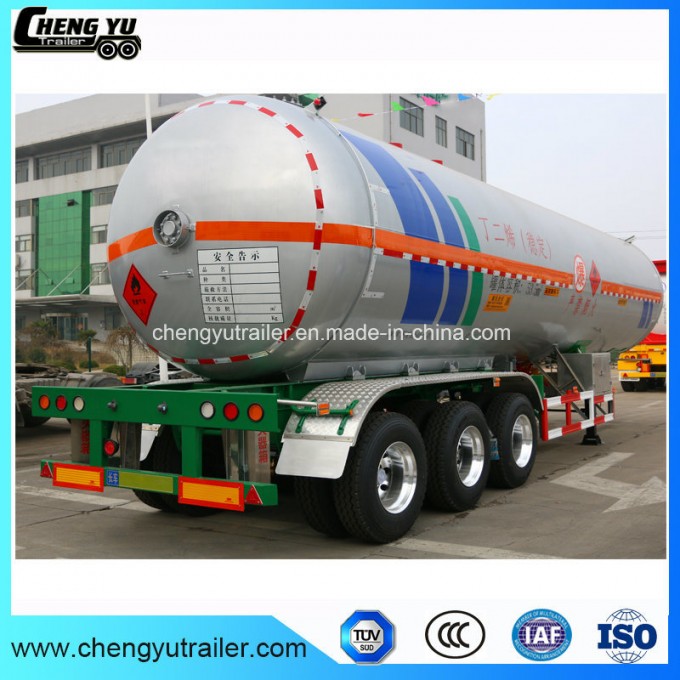

Product Details of 3axle lpg gas tank truck semi trailer



Packing and Shipping

Nude and waxed by bulk cargo ship or Ro-Ro ship or flet deck, and Containers..
We use best transportation solution to save your sea freight cost.



Our Factory

Chengyu Trailer belongs to Chengyu Group which is one of the biggest manufacturers for all kinds of trucks, especially for the semi trailers and parts in shandong. We specialized in many kinds of trailers, special vehicle and various truck parts, such as tank trailer, flatbed semi trailer, skeleton semi trailer, low bed semi trailer, dumping semi trailer, oil tanker semi trailer, bulk cement semi trailer and so on."Chengyu" brand axle, air Suspension, landing gear and other parts are also popular used by all over the world customers. Also we can customized production for our customers.

Chengyu relies on the world first-class production line, professional R&D, technical team and skilled workers has won the IS09001: 2000, ISO/TS16949:2009 and won the title of Brand-Name Products In Shandong Province and USA DOT Certificates.

The photos of the Production process for 3axle lpg gas tank truck semi trailer





FAQ

1. Can Ihave samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1unit.

2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 30 workdays after we received your ppayment. If you have place an order of large quantities, then ,of course, the price can be lowered.

3. Can you supply some quick-wear trailer parts?
Yes, we can supplythe trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc

4. What's the payment method?
30% TT before produce and 70% TT before shipment .
