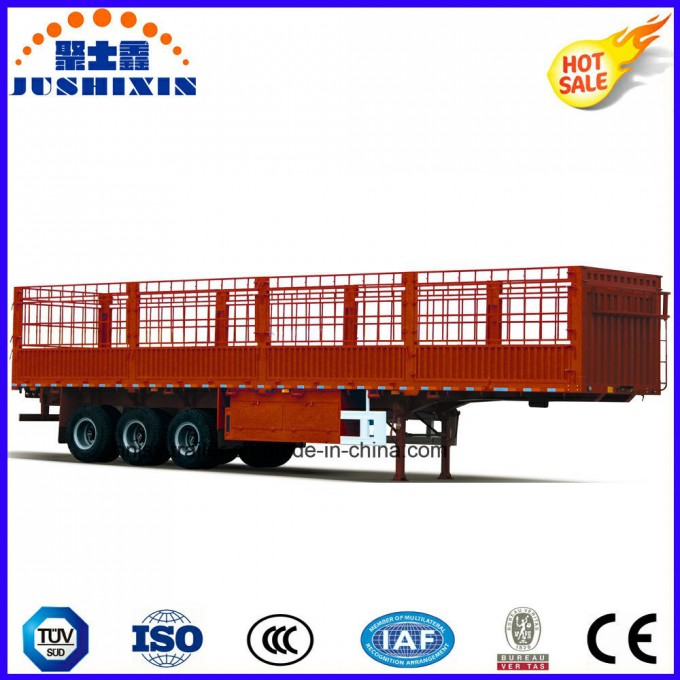

China Gooseneck Heavy Duty 3 Axle Stake/Basket Utility Truck Tractor Semi Trailer

China Gooseneck Heavy Duty 3 Axle Stake/Basket Utility Truck Tractor Semi Trailer




Main Product Specification for the stake sideboard semi trailer:

Dimensions	13000×2490×3750mm(canbecustomized)
LoadingCapacity	60T
Axle	Loadingcapacityof13T/16T,FUWAbrand(BPWandChinabrandforoptions)
No.ofaxles	3
Rim	9.00-22.5(8.0-20orothersasneeded)
No.ofrims	12
Tire	12R22.5(315/80R22.5,11R20orothersasneeded)
No.Oftires	12
Suspension	MechanicalSuspensionwithstampingplaterigidleafsprings
	(GermanyTypeorAmericaType)
	OrAirSuspension(ChinabrandorBPWbrand)
Leafsprings	90mm×13mm×10or100mm×12mm×12
Kingpin	JOSTbrand2.0or3.5inchesboltstypeorWeldingtype
Landinggear	D200TJOSTbrandor28Tons(two-speeded)Chinabrand
Stringer	Height:500mm,upperplateis14mm,middleplateis8mm,downplateis16mm;
	MaterialisQ345carbonsteel.
Sidebeam	16mmor18mmchannelsteel(MaterialisQ235carbonsteel)
Sidepanel	600mm-1500mminheightforyourchoice
Brakechamber	WABCORE6relayvalve;T30/30+T30Springbrakingchambers(TKLbrand);
	Twopiecesof45Lairtanks
ABS	Optional
Containerlocks	Four,EightorTwelvepieces(LiftingtypeorTwistScrewtype)foroptions
Valve	WABCOvalve
Light	LEDlightbyinternationalorEuropeanstandards
Voltage	24V
Receptacle	7ways(7wireharness)
Toolbox	Onepiecewithasetofstandardtoolsbyfactory
Painting	Completechassissandblastingtocleanrust,1coatofanticorrosiveprime,2coatsoffinalpaint
ShippingTerms	Bybulkcargocarrier,ROROor40HQcontainer
Usage	Suitablefortheagricultural,sidelineproductsandotherlightproducts'transportation.Thedesignisconvenientforproducts'unloading,andit'snotonlysatisfytheratedloadalsoreducetheburdenofthecompartments.
OtherDescriptions	Thecargo'scarryingpartofthestaketruckisstorehousebarstyledesigned,thebeamwearsthroughthelongitudinalbeamwhichisweldedasaspaceframestructure,makingtheframestrength,stiffness,flexibilityanequilibrium,astrongcarryingcapacitywithoutpermanentdeformation.
OtherSpecifications	Themaxheightoftherearguardfromgroundis550mm,andthecrosssectionis180mmX70mm.

Other styles of the stake cargo utility truck semi traielrs for your reference:

Maintechnicalparameter	JSX9408CLX
Detailedinstructions	32tons3axlesstaketransportationsemitrailer
G.W./kgs	39780/39980
TareWeight/kgs	7980/7780
Ratedload/kgs	32000
OverallSize(L*W*H/mm)	13000,2500/3780or2920/2720
Sizeoftheinsidebox(L*W*H/mm)	12740*2300*600
Axlebase/mm	6830+1310+1310
TireSize	11.00R20;12.00-20
Wheelbase/mm	1,850
Leafspring/pcs	13,14
Approach/departureangle	/14
Front/rearsuspension(mm)	1100/2450;1400/2150
Saddlebearingcapacity/kgs	15980/15930

Model	Type	Payload/kgs	G.W.	TareWeight/kgs	OverallSize/L*W*H(mm)	Interiordimension/L*W*H(mm)	Axlespace/mm	Tyre	Remark
JSX9402DY	3axlesgooseneckcargostakesemitrailer	33500	40000	6500	13000*2500*2900	12840/12750*2320/2380*600/500/400	6830+1310+1310	11.00R2011.00-2012R22.511R22.5
JSX9400DY	3axlescargostakesemitrailer	34000	40000	6000	13000*2500*2900,2700	12790*2280/2320/2380*600	6830+1310+1310	11.00-2011.00R2012R22.511R22.5
JSX9404CCY	3axlescargosiderfendersemitrailer	33800	40000	6200	11000*2500*3390/3590/3790/3990	10840*2320/2380*600	5300+1310+1310	11.00R2012R22.511R22.5

Advantage for the Stake fence Semi Trailer
Reduce tare weight, reduce costs
***PURPOSE--Mainly applied to transport vegetables,fresh fruits etc. other agricultural-sideline products and light cargoes.
***ADVANTAGE--trailer body structure design process combine with the user transporting cargoes'category,can reduce the vehicle tare weight sufficiently,reducing the investment costs for the user,creating more profit value in the case of meeting the load.
--Axles,tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.
--The vehicle adopt the advanced computer-aided design software to optimize the design,make the frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.
--The quality of this product is reliable, light tare weight, high efficiency space, has become the pferred models of long-distance freight vehicles.

Detailed Photos of the Stake Sidewall Cargo truck semi trailer:





Guarrantee for the parts of the Stake Bulk Cargo Truck Utility Semi-trailer:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

QualityControl for this stake sidewall Truck Semi Trailer
1-ForEachtrailer,wemustdothetestingandinspectthequality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.
2-You wilget theinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- You will get theout-standing quality assurance

Packaging &Shipping for this Cargo Utility Cargo Trailer :
1. Delivery by Container:2 sets put into 40HQ container, need cut down trailer tail,or 45ft container no need to cut down the trailer tail part.
2. Bulk shipment: Wax spray, put on the ship deck.
3. Ro-Ro shipment.

Excellent&PerfectService&Support for this Stake Basket trailer:
1-Wheneverreliability,safetyandeconomicisneeded,thereisaasolution.
2-Withafullrangeoftrailersparepartssupport,sparepartssupplyingwithin3working days.
3-Seriouslyaccording to thecustomer'srequirements,andflexiblecooperatingmode.
4-Offer theprofessional trailer drawingafter confirming the order.
5- Excellent after-sales service & product maintenance.

Buying Guides for this Cargo Trailer
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.Contactinformation
