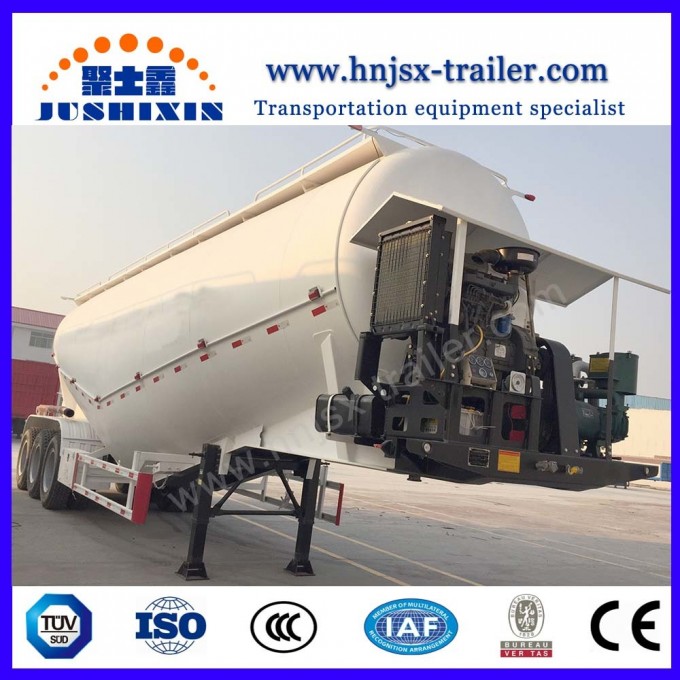

V-Shape Cement Bulker Tank Carriers Utility Truck Tractor Semi Trailer

V-Shape Cement Bulker Tank Carriers Truck Semi Trailer


1. Briefly introduction about JUSHIXIN company:
Henan Jushixin Transportation Equipment Co.,Ltd is the professional manufacturerof tank semi trailer, such as
powder tank semi trailer,liquid tank semi trailer and gas tank semi trailer, with high standard machinery and automatic equipment,
powerfulR&D team and elite sales team,we have built a long business relationship with many world famous enterprises.


2.V-Shape Cement Bulker Tank Carriers Truck Semi Trailer Specifications:
Kindly Note:We can customize differenttank volumeas per your need.

Product Name: V-Shape Cement Bulker Tank Carriers Truck Semi Trailer
Main Dimensions
Overall Length	11800mm
Overall Height	3800mm
Curb Weight	12400kgs
Total Volume	35CBM
Pay Load	40-45tons
Tanker Body
Inner Fluidized Bed	Air bed
Tanker Body Material	Q235A/ 6mm steel sheet
End plate	Q235A/6mm, ball shape
Rated work Pressure	0.2MPa
Compartment	Single
Shape	V type
Chassis
Axles	3 axles, FUWABrand13 ton
Suspension	Mechanical suspension with 8-pcs leaf spring
Braking System	WABCO Emergency Relay Valve; T30/30+T30 air chamber
Rim &Tire	11.00R22.5 tubeless tire with one spare tire with 8.25R22.5 wheel rim,13 pieces
Key Accessories
Air compssor	45KW, 0.2Mpa, 1000r/Min
Engine	Diesel engine
Manhole Cover	500mm manhole cover, 3sets
Air-charging system	2" main hole, 2"check valve, 1.5" safe valve, 0.4Mpa gauge
Discharge Pipe	4" seamless steel tube
Quadratic blow	1" diameter check valve
Discharge valve	4"disc valve
Outlet discharging pipe	4" rubber hose, 6m

3.Customer Visiting for V-Shape Cement Bulker Tank Carriers Truck Semi Trailer:

4.CCC & ISO Certificate:

5.FAQ that customers' are cared:

Q1:Areyouafactoryortradingcompany?

A:Weareafactory.Wemanufacture all kinds ofsemitrailersfor powder, liquid and gas.

Q2:Can you produce according to my specification?

A:WearedirectmanufacturerandhavestrongproducingcapacityandR&Dcapacity!

Q3:Howdoesyourfactorydoregardingqualitycontrol?

A: "Qualityispriority.''Ourinspector willchecksemi trailerineachprocedureandmodifythepartsoncefind anyproblems.wesalesmanalsochecksemi trailer andtakephotosof eachproceduretoconfirmwith client.

Q4:What are your advantages doing tanker semi trailer business?

Creativedesignforyourownspecialtransportationprogram. Hightensilesteelprovidesthestrongestperformanceofsemitrailer. Automaticsubmergedarcwelding&straighteningmachinemakebestmainbeam. Onecoatblastingplustwocoatspolyesterpainting. Standardsemitrailerpartscanbechosenaccordingtocustomers'request.

6.Contact us to Buy V-Shape Cement Bulker Tank Carriers Truck Semi Trailer:
