Detailed Description
China Best Bulk Cement Tank Truck Semi Trailer Manufacturer
Product Description
Factory direct bulk cement tanker semi trailer
1. Reliable manufacturer for 25 years
Over the last 25 years, we have manufactured various types of bulk cement tanker semi trailers. We are experienced enough to meet your diverse demands. Presently we are supplying over 20 nations, including Russia, Kenya, Philippines, and Bolivia.
2. V-shaped tank that allows complete discharge
Unique to our semi trailer is the V-shaped tank that allows complete discharge of the cement, with only less than 1% being left in the tank. Its reliable, fully closed design keeps moisture away from reaching the contents inside the tank.
3. High strength, long-lasting and bright look
The inner surface of the tank is sandblasted to recieve acorrosion -resistant cost. Polyurethane paint forms astrong bond to the tank surface, giving an attractive, long-lasting and bright look.
Specification of bulk cement tank semi trailer
| Shape | Optional (One Silo with Vtype n)V |
| Dimension | 12000mm*2490mm*3990mm (Exact size depends on the final design) |
| Tare weight | about9600KGS |
| Total Volume(m3) | 45 m³ |
| Tanker Body Material | 5mm /Q235 carbon steel |
| End Plate | 6mm /Q235 carbon steel |
| Diesel Engine | WEICHAI ,Tianhe4102 or other brand |
| Compssor | BOHAI 12 m³or other brand |
| Manhole Cover | Carbon steel 500mm |
| Discharging Valve | Diameter is 3or 4inch 34 |
| Discharging Pipe | 3 or 4inch rubber hose, 1pcs,6m/each34,6 |
| Cat Walk | With (Common model or special design) |
| Chassis |
| Main Beams | Weldding Design,Q345 carbon steel |
| Axle | 4axles, /13T, FUWA/HUAJING brand4,13 |
| Landing Gear | JOST (C200T) |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin23.5 |
| Suspension | Mechanical suspensionAmerica type |
| Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer |
| Pneumatic Braking System | WABCO RE 6relay valve; T30/30+T30/T30 Spring brake chamber ;45L air tanks. , |
| Rim | 9.00-22.5China Brand |
| Tire | 12.00R22.5 Brand can be Optional |
| ABS | Optional |
| Painting | Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paint ,, |
| Accessories | One standard tool box |
| Shipping Terms | By Bulk Cargo ,RORO |
Tank Trailer Details :
Our Products Semi Trailers :
Packaging &Delivery:
Packaging Details: Naked, maxed before shippment
Delivery Detail: 25 days after diposit
Our tanker trailers production line :
Contact us :
Looking forward to your any consults !

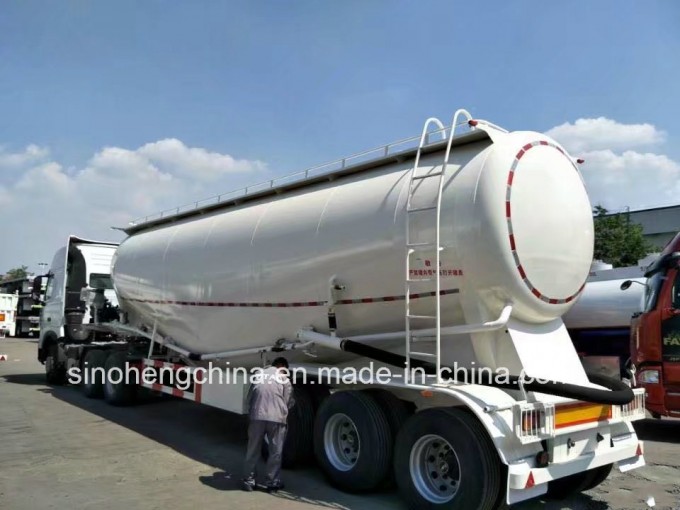

Product Image
