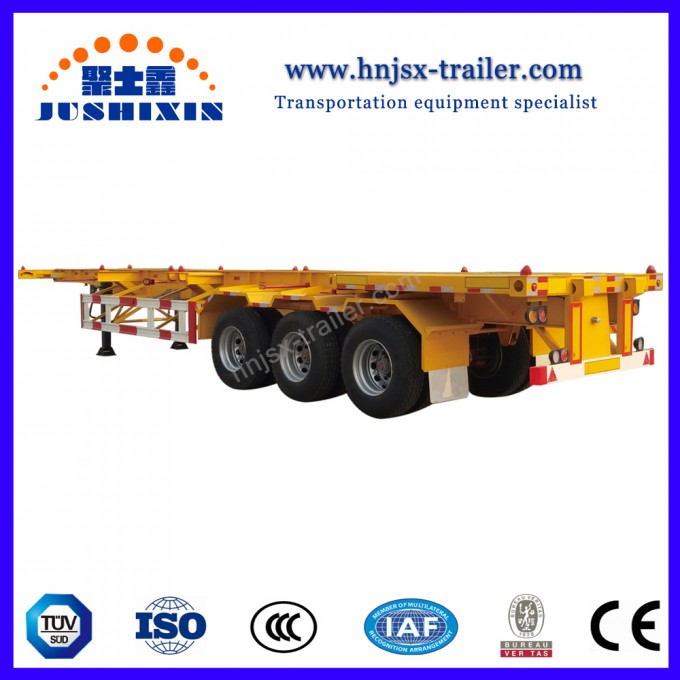

China 40FT 3 Axle Skeleton Truck Semi Trailer/Vietnam Skeletal Container Trailer

China 40ft 3 Axle Skeleton Truck Semi Trailer/Vietnam Skeletal ContainerTrailer

1.Product detailspecification:

vehiclename	3axle40ft Skeleton containersemitrailer
overalldimension(LxWxH)	12450×2480×1410mm
BasicSpecifications
TareWeight	5520kg
Payload	50T
Wheelbase	1310mm
RunningGear
AxleSpecs	3pieces;13TFUWAbrand,BPWoptional
Tirespecs	12pieces;10.00R20/16pr
Rims	12pieces;8.0-20
Suspension	mechanicalsuspensions
LeafSpring	10pcsforeach
Brake	Duallinepneumaticbrakesystem,
	T30/30+T30airchamber;parkingbrake
Underframe	MainBeamisheight500mmQ345B
frameBeam	Upperplateis14mm,lowerplateis16mm
	middleis8mm
CrossBeam	MildAlloyQ235
frameFloor	TheThicknessis3mmflatbed
KingPin	90#(3.5'),50#(2')interchangeable
	Type:boltedonkingpinplate
LandingGear	28toncapacity;Doublesidesoperation
ElectricalSystem	1.Voltage:24v2.Receptacle:7ways(7wireharness)
Lamp	LED
Painting	Anycolorwillbeavailable
Accessory
ContainerTwistLocks	8/12
ToolBox	Twotoolboxwithasetofstandardtrailertools
Sparetyrecarrier	Onepiece
Fender	Plasticfenders

2.Applications and customizations for this Flatbed Trailer:
(1).This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard
containers or ISO tank container.

(2).Skeletal trailers are usually intended to bear the weight of shipping containers, allowing them to be quickly
loaded straight off the ship and then transported to their final destinationSkeletal container semi-trailer,
3axles, is specially designedand widely used for container delivery.

(3).Furnished with 12 twist locks, they could load 2x 20ft, 1x20ft, 1x40ft containers.However,you can also
find skeletal trailers that have been altered to cope with the transport of other more specialised loads, such
as steel coils, canisters and other items with irregular shapes.
--------------
(1). The capacity is for 50tons, we can manufacture it according to your needs.

(2). The axles can be Fuwa /Bpw with different tonnages by your need with price differences.

(3). The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.

(4). The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.

(5). The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring
ladders and hydraulic loading ramps by different needs .
3.Some details you concerned about this Container Skeleton Trailer:


4.The related trailer parts of this Skeletal trailer as below just for your reference:

Guarrantee for the parts of the Containertrailer:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

Quality control for this Skeletal Container SemiTrailer:
1-For eachtrailer,wemustdothetestingandinspectthequality;and we have more than 30 QC&QA people
on the production process and the testing process and warehouse to gurantee the quality of the every details.

2-You wilget theinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyan
independentthirdpartycertificationcompany.

3- You will get theout-standing quality assurance
