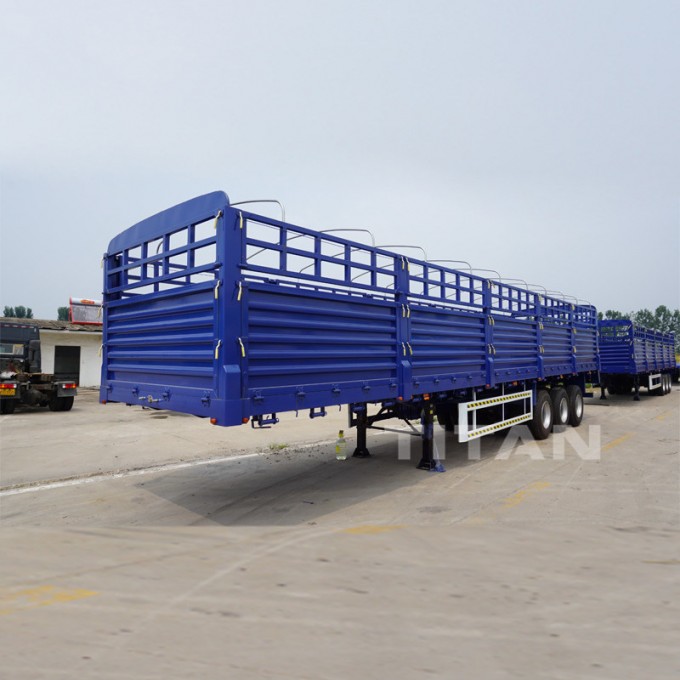

3 axle side wall trailer fence semi-trailer in truck trailer
Product Des
cription:
We are theprofessio
naltrailer manufacturers ,our production of the trailer is highly professional, and the quality can stand the test of time.If you need a beautiful, strong, serviceability trailer, please come to our company.
Customer e
valuation:
Specification:
| Dimension | 13000mm*2490mm*2860mm |
| Loading Capacity (T) | ≤60 T |
| Axle | 13 T/16T, FUWA /BPW |
| Rim | 9.00-22.5 9.75-22.5(special for export market) |
| Tire | 12.00R22.5/ 315 80R22.5(special for export market) |
| Suspension | Mechanical suspension (Germany Type or America Type)
Or Air suspension (China brand or BPW brand )(special for export market) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12
(special for export market) |
| Kingpin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
| Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,
Down plate is 16mm; Material is Q345B Steel. |
| Side beam | 16mm or 18mm channel steel (Material is Q235steel). |
| Bottom Platform | 3mm diamond steel plate |
| Side Wall | 600mm-1500mm,or can be do box type ,for choose |
| Brake chamber | WABCORE6relayvalve;T30/30+T30Springbrakechamber(TKLbrand);One piece of 45Lairtanks |
| ABS | Optional |
| Twist Locks | Four, Eight or Twelve pieces (Lifting type or Twist Screw Type), optional |
| Valve | WABCO valve |
| Light | LED light(special for export market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Toolbox | One piece, 1m×0.5m×0.5m (Size can be chosen freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve, and 1 unit cranking bar) |
| Painting | Complete Chassis sandblasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms: | By bulk cargo carrier, RORO or 40HQ container. |
Customer visiting:
FAQ:
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality?
Our raw material and OEM parts including axle, suspension, tyre, are purchased centralized by us,every node will be inspected strictly. Moreover, advanced equipment rather than o
nly worker is been applied during the whole producing process to ensure the welding quality.
If you are interested, welcome to the inquire or o
nline message! Please fill in your co
ntact information and suggestions! Thank you!
We will meet the acme of perfection to serve and provide more details , price ,catalog,drawing ,video for you !
Orders for ready-made or custom-made trailers are welcome!
