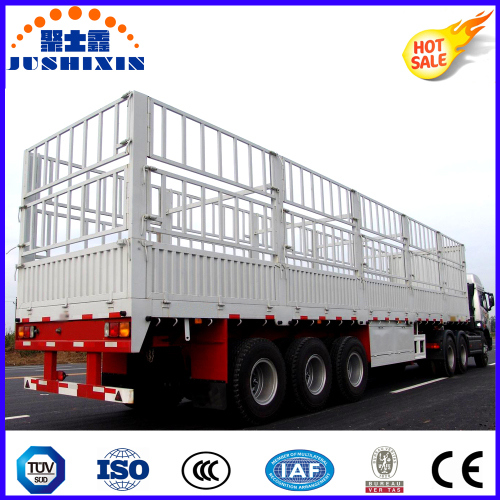

China Direct Factory Price 3 Axle Single or Double Tyre Fence Stake Cargo Utility Truck Trailer for

China Direct Factory Price 3 Axle Single or Double Tyre Fence Stake Cargo Utility Truck Trailer for Sale


Advantage for the Stake fence Semi Trailer
Reduce tare weight, reduce costs
***PURPOSE--Mainly applied to transport vegetables,fresh fruits etc. other agricultural-sideline products and light cargoes.
***ADVANTAGE--trailer body structure design process combine with the user transporting cargoes'category,can reduce the vehicle tare weight sufficiently,reducing the investment costs for the user,creating more profit value in the case of meeting the load.
--Axles,tires and other supporting parts are all well-known products purchased from domestic and foreign manufacturers.
--The vehicle adopt the advanced computer-aided design software to optimize the design,make the frame reasonable offload&scientific design by FEA( Finite Element Analysis) according to requirement of the vehicle carrying quality.
--The quality of this product is reliable, light tare weight, high efficiency space, has become the pferred models of long-distance freight vehicles.


Some photos of our factory's workshop just for your reference:




The related drawings of this Stake cargo Semitrailer as below just for your reference only:


Main Product Specification for the stake sideboard semi trailer:

Dimensions	13000×2490×3750mm(canbecustomized)
LoadingCapacity	60T
Axle	Loadingcapacityof13T/16T,FUWAbrand(BPWandChinabrandforoptions)
No.ofaxles	3
Rim	9.00-22.5(8.0-20orothersasneeded)
No.ofrims	12
Tire	12R22.5(315/80R22.5,11R20orothersasneeded)
No.Oftires	12
Suspension	MechanicalSuspensionwithstampingplaterigidleafsprings
	(GermanyTypeorAmericaType)
	OrAirSuspension(ChinabrandorBPWbrand)
Leafsprings	90mm×13mm×10or100mm×12mm×12
Kingpin	JOSTbrand2.0or3.5inchesboltstypeorWeldingtype
Landinggear	D200TJOSTbrandor28Tons(two-speeded)Chinabrand
Stringer	Height:500mm,upperplateis14mm,middleplateis8mm,downplateis16mm;
	MaterialisQ345carbonsteel.
Sidebeam	16mmor18mmchannelsteel(MaterialisQ235carbonsteel)
Sidepanel	600mm-1500mminheightforyourchoice
Brakechamber	WABCORE6relayvalve;T30/30+T30Springbrakingchambers(TKLbrand);
	Twopiecesof45Lairtanks
ABS	Optional
Containerlocks	Four,EightorTwelvepieces(LiftingtypeorTwistScrewtype)foroptions
Valve	WABCOvalve
Light	LEDlightbyinternationalorEuropeanstandards
Voltage	24V
Receptacle	7ways(7wireharness)
Toolbox	Onepiecewithasetofstandardtoolsbyfactory
Painting	Completechassissandblastingtocleanrust,1coatofanticorrosiveprime,2coatsoffinalpaint
ShippingTerms	Bybulkcargocarrier,ROROor40HQcontainer
Usage	Suitablefortheagricultural,sidelineproductsandotherlightproducts'transportation.Thedesignisconvenientforproducts'unloading,andit'snotonlysatisfytheratedloadalsoreducetheburdenofthecompartments.
OtherDescriptions	Thecargo'scarryingpartofthestaketruckisstorehousebarstyledesigned,thebeamwearsthroughthelongitudinalbeamwhichisweldedasaspaceframestructure,makingtheframestrength,stiffness,flexibilityanequilibrium,astrongcarryingcapacitywithoutpermanentdeformation.
OtherSpecifications	Themaxheightoftherearguardfromgroundis550mm,andthecrosssectionis180mmX70mm.

Other styles of the stake cargo utility truck semi traielrs for your reference:

Maintechnicalparameter	JSX9408CLX
Detailedinstructions	32tons3axlesstaketransportationsemitrailer
G.W./kgs	39780/39980
TareWeight/kgs	7980/7780
Ratedload/kgs	32000
OverallSize(L*W*H/mm)	13000,2500/3780or2920/2720
Sizeoftheinsidebox(L*W*H/mm)	12740*2300*600
Axlebase/mm	6830+1310+1310
TireSize	11.00R20;12.00-20
Wheelbase/mm	1,850
Leafspring/pcs	13,14
Approach/departureangle	/14
Front/rearsuspension(mm)	1100/2450;1400/2150
Saddlebearingcapacity/kgs	15980/15930

Model	Type	Payload/kgs	G.W.	TareWeight/kgs	OverallSize/L*W*H(mm)	Interiordimension/L*W*H(mm)	Axlespace/mm	Tyre	Remark
JSX9402DY	3axlesgooseneckcargostakesemitrailer	33500	40000	6500	13000*2500*2900	12840/12750*2320/2380*600/500/400	6830+1310+1310	11.00R2011.00-2012R22.511R22.5
JSX9400DY	3axlescargostakesemitrailer	34000	40000	6000	13000*2500*2900,2700	12790*2280/2320/2380*600	6830+1310+1310	11.00-2011.00R2012R22.511R22.5
JSX9404CCY	3axlescargosiderfendersemitrailer	33800	40000	6200	11000*2500*3390/3590/3790/3990	10840*2320/2380*600	5300+1310+1310	11.00R2012R22.511R22.5

Features of this Stake Utility Cargo Truck Semi Trailer:
***Sophisticated technologies-----The main parts are processed using the advanced equipments,the longitudinal beam is welded by the (imported from)Germany Automatic submerged arc welding machine;Using the assembly machine to realize the axletree assembly;Using the diastimeter to guarantee wheelbase;Using the electric tester to debug the whole vehicle eletric road;Using the shot blasting to processing the vehicle parts which can increase the adhesion of the paint.
***frame-----Using the assembly welded space frame structure which formed by welded-type longitudinal beam (made of 16Mn steel plate) and the whole Run-through cross beam;Reasonable structure,can evenly consider the strength,stiffness and toughness of the frame so that the trailer possess strong carrying capacity and without permanent deformation etc. Characteristic.
***Axle-----Adopting the excellent axle produced by the professional manufactures,strong bearing,difficult to deformation;Meanwhile can opt famous ABS system from domestic and overseas reduce braking distance,effectively pvent the vehicle skidding/flicking etc. phenomenons caused by wheels locking when emergency braking,Improving vehicle safety.
***Suspension-----Using a unique new suspension system,high strength, high impact resistance; each axle load balance,the system draw-bar angle design is reasonable, in the process of running frequent bumps,reduce slippage caused by instant friction between the tires and the ground, reduce tire wear,and meanwhile can adjust the draw-bar to adjust the wheelbase,effectively avoid eccentric wear and eating tire phenomenon; axis card is the whole casting, of which the lower axis card is the patented product.
***Braking system-----Adopting the safe and reliable dual-circuit breathe brake,storage branch cylinder with braking function when parking,using the reliable relay valve.
***Toolbox-----Fabricated large, fully enclosed waterproof toolbox.


Detailed Photos of the Stake Sidewall Cargo truck semi trailer:





Guarrantee for the parts of the Stake Bulk Cargo Truck Utility Semi-trailer:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

OurAdvantage
1-Withwellexperiencedsemitrailerproductioncompanytoofferhighqualityandcompetitivepricessemitrailertoourworldwidevaluablecustomers.
2-Anprofessionalteamwhichisexperiencedwithinternationalmarketandhasstrongtechnicalcapabilitytocustomizedcosteffective,because we have more than 60 Designer and engineers as our solid backing.Among them,our technical adviser has more than 40years'experience in the trailer field.
3-Sellwellintheinternationalmarkets,suchasAfricanmarket(Sudan,Angola,Zimbabwe,Liberia,Djibouti,Congo,Kenya,Ghanaect.),MiddleEast,SouthAsiaandSouth-Americamarketetc..
4-Two YearsGuaranteeforallthethebeamoftrailers,timelyshipment;
5-Dealing is not only buying or selling,but also the good matching;Not only product but also excellent service;Therefore we will be at your service at any time even the midnight in our time.
6-Your order could be a priority in our company whenever your order is small/medium size order or your low price.
7-We would be always grateful whatever you would be a"big fish for a small company or a small potato for a big company".

QualityControl
1-ForEachtrailer,wemustdothetestingandinspectthequality,and we have more than 30 QC&QA people on the production process and the testing process and warehouse to gurantee the quality of the every details.
2-You wilget theinspectioncertificateaccordingtocustomerdemandforeverytrailerwhichgivenbyanindependentthirdpartycertificationcompany.
3- You will get theout-standing quality assurance

Packaging &Shipping :
1. Delivery by Container:2 sets put into 40HQ container, need cut down trailer tail,or 45ft container no need to cut down the trailer tail part.
2. Bulk shipment: Wax spray, put on the ship deck.
3. Ro-Ro shipment.

Excellent&PerfectService&Support
1-Wheneverreliability,safetyandeconomicisneeded,thereisaasolution.
2-Withafullrangeoftrailersparepartssupport,sparepartssupplyingwithin3working days.
3-Seriouslyaccording to thecustomer'srequirements,andflexiblecooperatingmode.
4-Offer theprofessional trailer drawingafter confirming the order.
5- Excellent after-sales service & product maintenance.

Buying Guides
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
