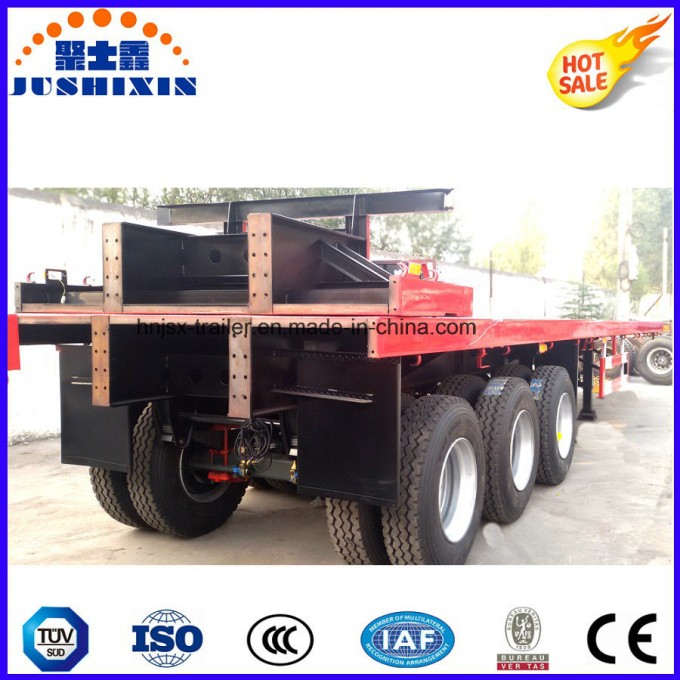

China 40feet 3axles Platform Container Cargo Truck Tractor Semi Trailer

China 40Feet 3Axles Platform Container Cargo Truck Tractor Semi Trailer

1.Product Specification of the Flatbed Container Trailer:

item	unit	quantity	notice
size			12380length*2500width*1600height, detailaccordingtothedrawing
axle	piece	3	13TonFWB
tyre	piece	12	11.00R20-16PR,withoutsparetire
rim	piece	12	8.0-20
leafspring	piece	6	90width*10pieces*13mmthickness
brakingsystem	set		2lineairbrakingsystemwithairtank,emergencyrelayvalve,brakingchambersandmechanicalslackadjusters.
electricalsystem	set	1	24voltelectricalsystem.7pinelectricalconnector.parking.stop,reverse,numberplateandindicatorlights. rearlightsconformtoEuropeanstandard,rearfrontandsidereflectors
suspension	set	3	CIMCtype,thehighqualityQ345steel
relayvalve	wholevehicle	1	WABCO
landinggear	pair	1	JOSTC200,leftsideoperation,
kingpin2"	piece	1	BAOHUA50#Welded
tie-in	piece	2	haldex
chamber	piece	2	storedchamber2unitsT30/30
Sidewall			14/16mm,width146mm,usingthehighlyqualityQ345steel,
upperandlowerwingplates		12	canload1*40',2*20'or1*20'containers
mainbeam			height:500mmwebplate:6mm;usingthehighlyqualityQ345steel
sidebeam			16#channelsteel
floor			3mmcheckeredplate
crossbeam			80*40squaretube,
reflectors			Redtrianglereflectorsattherearofthetrailerandonside
Shotblastingandpaint			ChassisiscomletelyshorblastedtoSA2.5grade,andpaintedwithfirstlayerofinternationalZinc Epoxyprimer(30MicronsDEF),secondlayerinternationalhighbuiltpolyurethaneundercoat(40micronsDFT), THIRDANDFORTHLAYERSINTERNATIONALalkydFINISHTOPcoat.total80-100microns.Waxed
sparetyrecarrier		2	standard
color			accordingtorequiredRALcolorcode
paymentterms			30%TTinadvance,thebalanceshouldbepaid10dayspriortothedeliverytime
deliverydate			15workingdaysafterthedepositandthe/confirm/iationofthedrawing.

2.Application and theTechnical Highlights for the flatbed Container Semi trailer:
---This series container semi trailers are mainly suitable for the MID/Long distance transportation of Standard containers or ISO tank container,this series container semi trailer divides the flatbed.skeleton type etc.
---Carrying for dry cargos, 1*40FT,2*20FT,1*20FT or 1*45FT etc. containers
--- High Quality Body
--- BPW, FUWA or Certificated Chinese Axles
---ABS brake system
---JOST or Chinese brand parking leg and king pin
---Air and Mechanical Suspension
---Strengthen the Chassis Instructure

3.OPTIONS for the Flatbed Container Semitrailer:
1-20ft,30ft,40ft,45ft,48ft,50ft,53ft container transporting optional with twist locks
2-flatbed or skeleton chassis type
3-Main beam:500mm height,140mm Q345 or T70 hight strong steel
4-Suspension; Rigid, single point or air suspension
5-material of the main beam: Q345
6-Axles number: 2 3 4 axles.
7-Design type; Straight beam
8-Jost landing gear, FUWA axles and Tri-angle tires
9-extendable or sliding type optional
4.More styles for the flatbed container Semi-Trailers:

20ft-52ft/30-65TonSCONTAINERLOADSEMITRAILER(FLATBED)
Dimension	Model	Axles/Tires		RatedCapacity
20ft	JSX9200GYY	2axles/8tires	3axles/12tires	30T-45T
30ft	JSX9201GYY	2axles/8tires	3axles/12tires	30T-45T
40ft	JSX9202GYY	2axles/8tires	3axles/12tires	45T-60T
45ft	JSX9303GYY	2axles/8tires	3axles/12tires	40T-65T
48ft	JSX9304GYY	2axles/8tires	3axles/12tires	40T-65T
52ft	JSX9305GYY	2axles/8tires	3axles/12tires	40T-65T

5.Some photos of our workshop for your reference:



6.More detailed photos of the flatbed trailers:
7.Delivery photos for Flatbed container semi trailer for your options:

8.Guarrantee for the parts of the Flatbed trailer:

ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
MAINframe	frame		1YEAR	RUNNINGGEAR	AXLE	6MONTHS
	SUSPENSION		6MONTHS		AXLEBEARING	3MONTHS
	KINGPIN		1YEAR		WHEELHUB	3MONTHS
	BALANCEARM		3MONTHS		TIRE	6MONTHS
ITEMNAME			WARRANTY	ITEMNAME		WARRANTY
BRAKINGDEVICE		BRAKEDRUM	3MONTHS	SUPPORTDEVICE	LANDINGGEAR	6MONTHS
		BRKECHAMBER	3MONTHS		SPAREWHEELCARRIER	6MONTHS
		AIRRESERVOIR	6MONTHS
ITEMNAME					WARRANTY
OTHERS		LEAFSPRING			3MONTHS
		BRAKECHAMBERDIAPHRAGM			3MONTHS
		EMERGENCYRELAYVALVE			3MONTHS
		BRAKESHOE			3MONTHS
		RELAYVALVE			3MONTHS

9.Buying Guides for this Container Flatbed Trailer
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
