| Tare weight | 9000kg | Volume | 50000 liters | |
| Size | 12,500mm x 2500mm x 4000mm |
| SPECIFICATION |

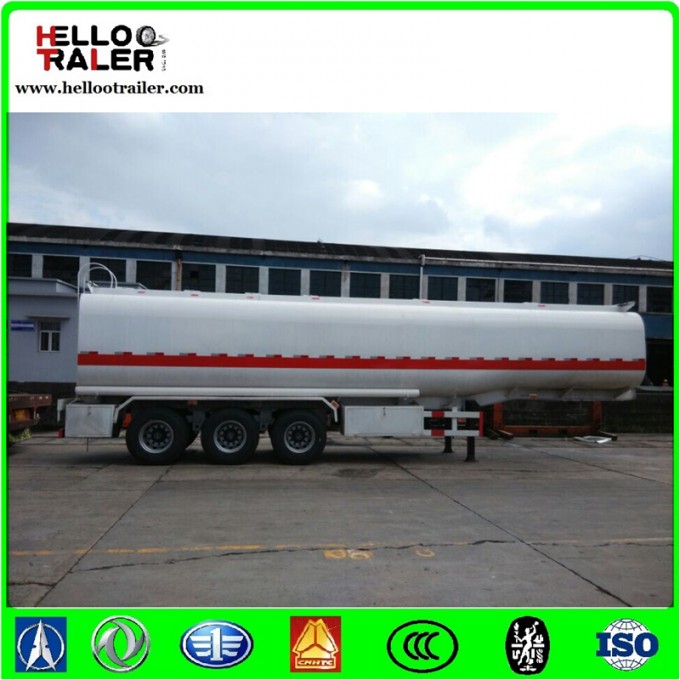

| TANKER SPECIFICATION |
| Tank body | Q235/5mm steel |
| End plate | Q235/6mm steel sheet |
| Discharge valve | 3disc valve |
| Dischargepipe | 3seamless steel tube |
| Manhole cover | 500mm manhole cover . 5 sets with 5 breather valve. |
| Compartment | 5 pieces, 10000+10000+10000+10000+10000L, paint the inside with epicoat |
Emergency valve | 5 pieces |
| TRAILER CHASSIS SPECIFICATION |
| Axle | 3 axles, FUWA brand axles 13 ton |
| Leaf spring | Leaf spring 10 pieces |
| Kingpin | 50mm or removable (90mm freely) |
| Landing gear | Two-speed, manual operating ,heavy duty landing gear |
| Tire | Triangle brand 12R22.5 12 Pieces |
| Rim | 9.0-22.5 12 Pieces |
| Suspension | Mechanical suspension |
| Leaf spring | 10/10/1090mm width and 13mm thickness |
| BrakeChamber | Six doublebig brake chamber |
| Sparetirecarrier | 2 units |
| Emergency valve | WABCO Brand, RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
| Tail lights | LED type |
| Voltage | 24V |
| Receptacle | 7ways (7 wire harness) |
| Fender | 2 pieces, light steel, left+right |
| Tool box | 1 piece, 1m x 0.5m x 0.5m,with some small gadgets |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
