Detailed Description
· 7ft. x 5ft. tipping trailer
· Fully Welded & Hot dipped galvanized surface treatment
· 2.5mmChequer Plate Floor,1.5mm Gate & Sides
· Tie-Down Rail & Mudguard Step on both sides
Features & Standards:
| Surface finish | hot dipped galvanized |
| frame steel | chassis & draw bar (70x50mm); axle (50x50mm) |
| Floor | 2.5mm checker plate |
| Tie-Down rail& Mudguard Step | Built on both sides |
| Tire | 165/70R13" with white painted 5 studs wheel |
| Springs | 5 leaf springs |
| Light & reflectors | E-mark/ DOT certification LED light |
| Coupler | 1-7/8, 2" or 50mm according to buyer's local standards |
Options:
| Spare tires | 165/70R13 (tire with rim) ;165/70R14; |
| Jockey wheel | 750 or 1000lbs top swing style |
| Deck | 1.5mm Ribbed zinc plate deck |
| Cage | 600/900mm high cage |
| Spare wheel mounting | 2 bolts and 2 holes on drawbar ,cross member ppared |
Size Options.
| Size | Model No. | Inner Box Size | GVW | Tare Weight |
| 6x4ft. | YM-64BTW | 1830x1220x300mm | 750KG | 295KG |
| 7x4ft. | YM-74BTW | 2135x1200x300mm | 750KG | 345KG |
| 7x5ft. | YM-75BTW | 2135x1525x300mm | 750KG | 400KG |
| 8x5ft. | YM-85BTW | 2440x1525x300mm | 750KG | 450KG |

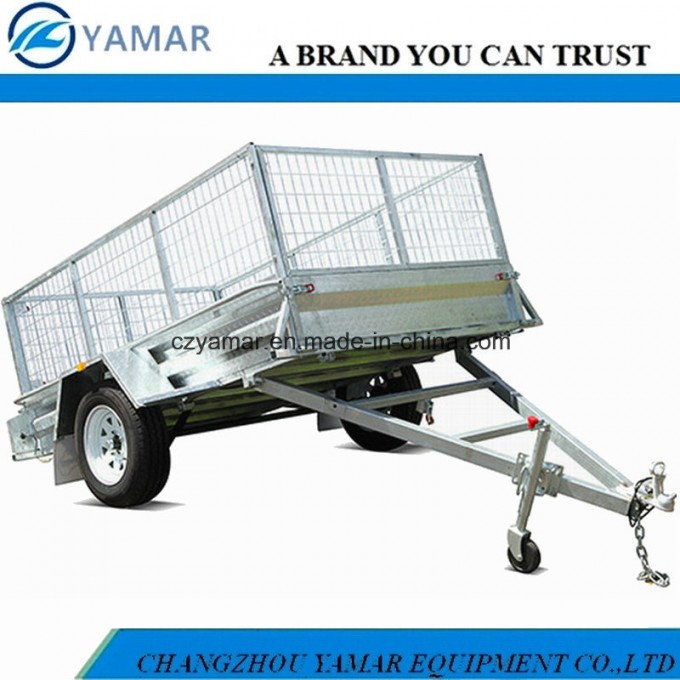

Product Image
