Detailed Description
Features:

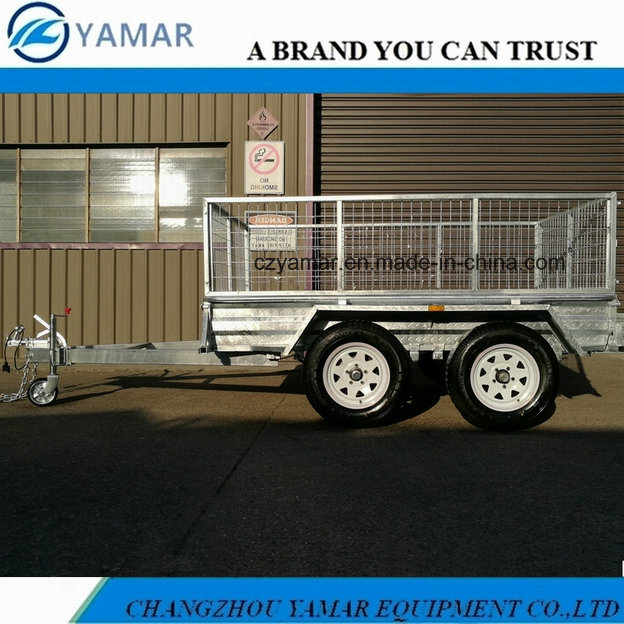

·Hot dipped galvanized 8X5Ft.DualAxleCargo Trailer
·Box Side Panel:Ribbed Plate ,300mm Height
·Mesh Cage :600mm or900MM (Optional)
·Drawbar : 100x50x3mm
·Chassis: 70x50x2.5mm
·Cross bar: 50x50x2mm
· Loading Weight:2000Kg
· 20mm RoundTie down Rail and mudguard step On Both Sides
Size Options
| Size | Model No. | Box Inner Size | Loading Weight | Tare Weight |
| 8x5ft. | YM-85TAC | 2440x1525x300mm | 2000KG | 495KG |
| 9x5ft. | YM-95TAC | 2745x1525x300mm | 2000KG | 535KG |
| 10x5ft. | YM-105TAC | 3000x1525x300mm | 2000KG | 585KG |
| 10x6ft. | YM-106TAC | 3000x1800x300mm | 2000KG | 610KG |
| 12x6ft. | YM-126TAC | 3600x1800x300mm | 2000KG | 650KG |
Key Specs.
| Model No. | YM-85TAC |
| Floor&Side Panle | 2.5mm Chequer Plate Floor ;1.2mm Side walls & Doors |
| Axles | 2 x Heavy Duty solid Axles (50mmx 50mm solid square) |
| Spring | 5 Leaf Springs (Rocker System) |
| Wheels | 4 x Brand New 185/80/R14 Tyres on Powder Coated Steel Rims |
| Jockey Wheel | 2000lbs double wheel Side & Top Swing |
| Coupler | 50mm Australia Standard Coupling,1 7/8 New Zealand Standard coupling,EU Standard Coupling |
| Lights | Front LED Clearance Lights and Rear LED Brake & Indicator Lights |
| Warranty | 18months |
