Detailed Description

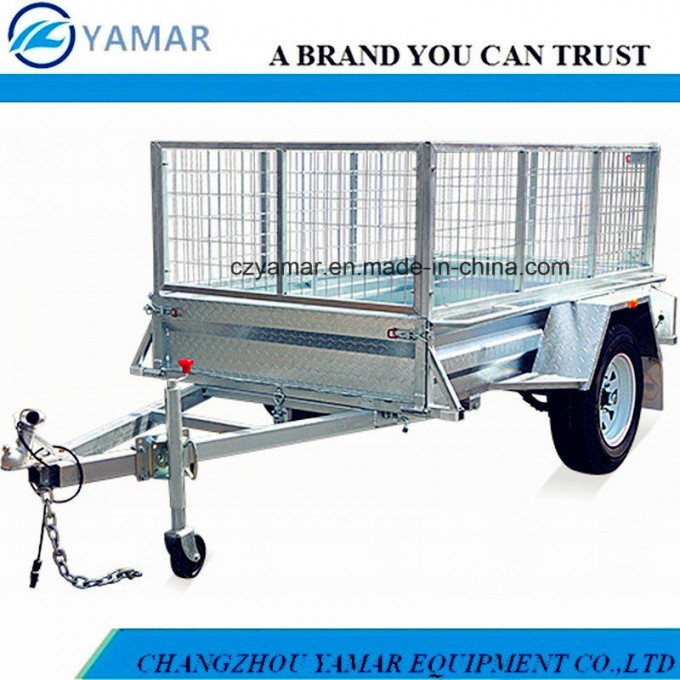

Hot Dip Galvanized Cage trailer,Single Axle
Features & Standards:
| Load Capacity | 750KG |
| frame steel | chassis & draw bar (100x70x2.5mm); axle (50 x 50 mm solid axle) |
| Draw | A-1500mm |
| Floor | 2.5mm checquer plate deck |
| Tie-Down rail& Mudguard Step | on both sides |
| Tire | 165/70R13 with white painted 5 studs wheel |
| Springs | 5 leaf springs |
| Light & reflectors | LED light |
| Coupler | 1-7/8, 2" or 50mm according to buyer's local standards |
| Jockey Wheel | 6" top swing |
| Cage | 600mm |
Size Options.
| Size | Chassis | Inner Box Size | GVW |
| 6x4 | 1880x1235mm | 1800x1235x300mm | 750KG |
| 7x4 | 2180x1235mm | 2100x1235x300mm | 750KG |
| 7x5 | 2180x1535mm | 2100x1535x300mm | 750KG |
| 8x5 | 2480x1535mm | 2400x1535x300mm | 750KG |
A BRAND YOU CAN TRUST
We Promise:
1. 24 hours o
nline service surport
2. Punctual Delivery
3. Best After-sales Service
4. Extra Assembly drawing and Compo
nents list can be provided at any time
FAQ
1. Q:Are you factory?
A: Yes, We have our own factory located in Changzhou city,wher
e is very close to Shanghai!
2. Q: How long has your factory been?
A: More than 10 years now
3.Q:Can we mix our goods in 20ft container?
A: Yes, Surly.
4. Q: Can we use our own brand and logo on the products?
A: Yes. OEM&ODM are acceptable.
5.Q: How a
bout the lead time?
A: Usually 30-35days after we receive the deposit.
6.Q: Can I have a visit to your factory ?
A: Yes, Welcome to visit us at anytime!
Product Image
