Farm Trailer, 3t Hydraulic Trailer, Tractor Trailer

Farm Trailer/used for transportation of farming materials and crops in the field

1. Product Introduction

Series of 7C trailers manufactured by Yucheng Yili Machinery Co., Ltd. meet the national standard. It is mainly used for transportation of farming materials and crops in the field.

It consists of two series, automatic unloading and non-automatic unloading and automatic unloading consists of side unloading and back unloading. The quality is reliable and loading capacity is big. It is easy to be operated and maintained

2.Main Specifications,

Model	(mm) Carriage dimension	(mm) Overall dimension	(kg) Rated loads	(kg) Structure weight	Type of tyre	Brake	Unloading way
7C-1.5	2000*1000*450	3000*1500*1500	1500	320	6.50-16	Select	Manual
7CX-1.5	2000*1000*450	3000*1500*1600	1500	380	6.50-16	Select	Hydraulic

Model	Matchedpower(Hp)	Unloadway	Brake	Tyre	Upload(kg)	Structureweight(kg)	Carriagesize(Mm)	Overalldimension(mm)
7C-3T	25~30	Manual	2wheelsAirbrake	7.50-16	3000	550	3000*1600*500	4000*1600*2000
7Cx-3T	25~30	Hydraulic	2wheelsRearairbrake	7.50-16	3000	700	3000*1600*500	4000*1600*2100
7C-3T	25~30	Manual	4wheelsRearairbrake	7.00-16	3000	900	3400*1700*450	4700*1800*2100
7Cx-3T	25~30	Hydraulicdump	4wheelsRearairbrake	7.00-16	3000	1100	3400*1700*450	4700*1800*2200
7c-4T	25-50	Manual	4wheelsRearairbrake	750-16	4000	1200	3700*1800*500	5100*1800*2300
7cx-4	25-50	Hydraulicdump	4wheelsRearairbrake	750-16	4000	1500	3700*1800*500	5100*1800*2400

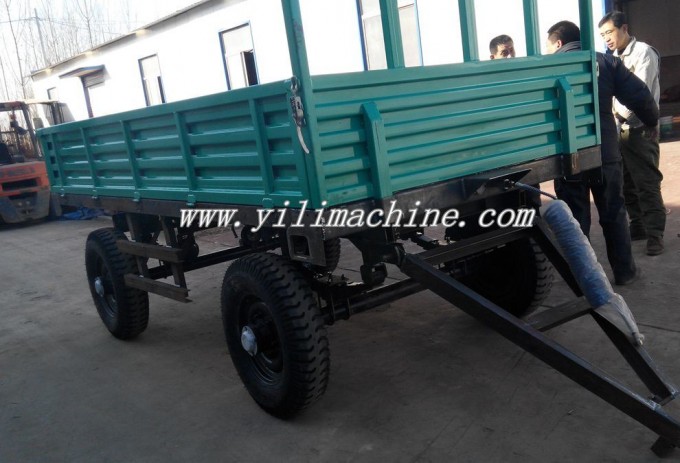

3. Product Picture :

our services:

1.Professional:6yearsmanufacturingexperienceof Agriculture machines. (disc plough,disc harrow,mower, rotarycultivator ....)

2.SuperService:Allcustomersareourgoodfriends

3.GoodQuality:Wehavestrictqualitycontrolsystem&team.Highreputationinthemarket.

4.FastDeliveryTime&CheapFreight:Wehavebigdiscountfromourownforwarder

5.QuickandSafeDelivery

6.ExperiencedServiceTeam

7.24hoursOnLineCustomerService

8.HighreputationinMoreThan30Countries

9.Fullrangeproductsforchoice(disc plough,disc harrow,mower, rotary cultivator ....)

10.CompetitivePrice,AttractiveDesign,Bestperformance,HighGoodQuality

HowToOrder

1.Pleasetellusthemodelwithquantityandotherrequirementwhichyouneeded.

2.WeissuetheProformaInvoicetoyouafter/confirm/iedthepriceandotherdetails.

3.Wearrangetheorderproductionuponreceiptof/confirm/iedPIandyourdepositorT/T.

4.Afterthegoodsisreadytoship,wewillinformyoutheshipmentdateandotherinformationsbyemailatthesametime.

5.Wewillhelptotrackyourgoodsuntilyoureceivethemsafely

If you are interest in this model, pls feel free to contact me!

Name: Amy Liu

Fax: 86-0534-7282230

Tel: 0086-15753433701

Looking forward to your enquiry
