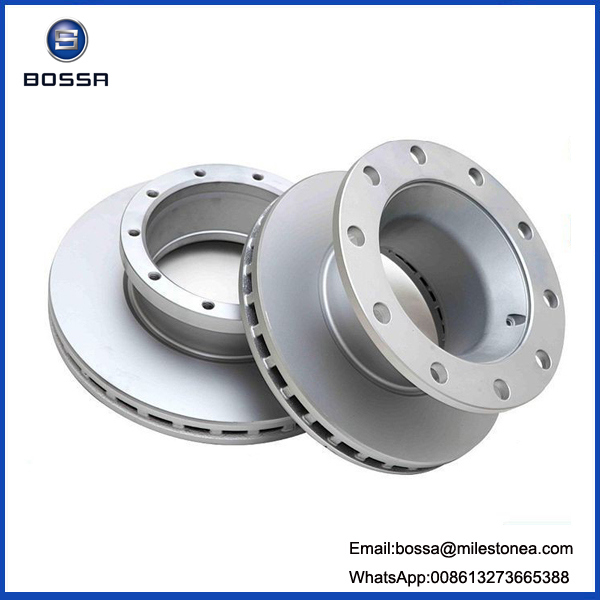

Iveco Trucks Spare Parts 42470842 Trailer Parts Brake Disc

Iveco trucks spare parts 42470842 trailer parts brake disc

For our factroy could produce various of Brake disc for cars and trucks.
Material:
1. Must meet Grade HT250 GG20 for gray iron castings
2. Chemical Composition (Percent)
* Total Carbon: 3.0 - 3.50%
* Silicon: 1.90 - 2.30%
* Manganese: 0.60 - 0.90%
* Phosphorus: 0.12% Max.
* Sulfur: 0.10% Max.
3. Microstructure:
Graphite Structure: Predominantly type A, size 3-5.
Matrix: Pearlistic with max.15 ferrite. Free from chill
4. Physical Properties
Tensile Strength: Min. 200 N/mm
Brinell Hardness: 190-200
Part of Trucks brake disc OEM NO:

Unit: mm
Reference No.	A	B	C	D	E	Holes	Application
308834040	377	45	290	160	335	10x23	BPW
308834020	377	45	290	160	335	10x23	BPW
308834080	377	45	290	170	335	10x23	BPW
308834100	377	45	n/a	160	335	10x23	BPW
308835050	430	45	n/a	160	335	10x23	BPW
85103803(V)	434	45	220	45	n/a	n/a	VOLVO
85103804	410	45	220	45	n/a	n/a	VOLVO
3092710(S)	434	45	223	45	n/a	n/a	VOLVO
1386686	430	45	208	131	237	10xM16	SCANIA
4079000500	430	45	131	130	168	12x19	SAF
4079000700	375	45	131	139.5	168	12x19	SAF
21227349	378	45	225	150	250	10xM16	ROR
21224263	378	45	225	150	275	8x24	ROR
5010216437	438	45	131	97	165	10x17	RENAULT
1387439	432	37-45	258	45	n/a	n/a	DAF
2992470	436	45	210	139	240	12xM16	IVECO
81508030023	432	45	131	130	168	12x19	MAN
81508030021	432	45	208	135	235	10xM16	MAN
9424212112	430	45	211	132	238	10xM14	MERCEDES
9434210312	430	45	130	145	170	10x21, 2xM10	MERCEDES
9754230312	377	45	176	139	201	8xM14	MERCEDES

(1)Features:
1.Material: Gray iron HT250, Meet the American Standard G3000, Also offer ductile cast iron.
2.Hardness: 170- 240HB (for ours between 190-200 HB)
3.Stable coefficient friction
4.Low noise, no dust
5.Long service life

(2)Machining and manufacturing:
CNC maching center. One kind is normal turning, second is grinding,third is slotted and drilled. Many years of production experience. Passed 100% dimension inspection, crack detection and dynamic balance inspection.

(3)Certification: ISO9001: 2000, TS16949.SGS

(4)The brake disc we can make for: BPW, MAN, VOLVO,BENZ, SCANIA , SCANIA , DURAmetaL , IVECO , NISSAN , RENAULT ,HINO, HYUNDAI,etc.


Mainly Casting products: Brake shoe , Brake drum, brake disc, wheel hub, casing, Axle casing, and Axle,
Gear box casing, various of casting covers for trucks , tractors, exacavators etc, such as , Benz, Scanian,Mann, Ievco, Dafa,Hino Nissan, Mistsubish, Hyundai, , Cat, Komatsu, Terex etc.

Note: All the cast iorn products we could produce according to OEM NO samples or drawings.

MOQ	50-100PCS
Delivery time	Usually 15-20 days
Payment items	T/T etc L/C at sight, west union are acceptable
Packing	Standard exported packing Pallet or wood cartons
Certificate	SGS ISO etc

Material in our factory below:

Country	Gray iron
China	-	HT350	HT300	HT250	HT200	HT150	HT100
Japan	-	FC350	FC300	FC250	FC200	FC150	FC100
America	NO.60	NO.50	NO.45	NO.35	NO.30	NO.20	-
Russia	C40	C35	C30	C25	C20	C15	C10
Germany	GG40	GG35	GG30	GG25	GG20	GG15	-
Italy	-	G35	G30	G25	G20	G15	G10
France	FGL400	FGL350	FGL300	FGL250	FGL200	FGL150	-
England	-	350	300	250	200	150	100
Poland	Z140	Z135	Z130	Z125	Z120	Z115	-
India	FG400	FG350	FG300	FG260	FG200	FG150	-
Romania	FC400	FC350	FC300	FC250	FC200	FC150	-
Spain	-	FG35	FG30	FG25	FG20	FG15	-
Bulgaria	FGG40	FGG35	FGG30	FGG25	FGG20	FGG15	FGG10
Australia	T400	T350	T300	T260	T220	T150	-
Sweden	O140	O135	O130	O125	O120	O115	O110
Hungary	OV40	OV35	OV30	OV25	OV20	OV15	-
Bulgaria	-	Vch35	Vch30	Vch25	Vch20	Vch15	-
(ISO)	-	350	300	250	200	150	100
(COPANT)	FG400	FG350	FG300	FG250	FG200	FG150	FG100
Netherland	-	GG35	GG30	GG25	GG20	GG15	-
Luxembourg	FGG40	FGG35	FGG30	FGG25	FGG20	FGG15	-
Austria	-	GG35	GG30	GG25	GG20	GG15	-
Country	Nodular cast iron
China	QT400-18	QT450-10	QT500-7	QT600-3	QT700-2	QT800-2	QT900-2
Japan	FCD400	FCD450	FCD500	FCD600	FCD700	FCD800	-
America	60-40-18	65-45-12	70-50-05	80-60-03	100-70-03	120-90-02	-
Russia	B40	B45	B50	B60	B70	B80	B100
Germany	GGG40	-	GGG50	GGG60	GGG70	GGG80	-
Italy	GS370-17	GS400-12	GS500-7	GS600-2	GS700-2	GS800-2	-
France	FGS370-17	FGS400-12	FGS500-7	FGS600-2	FGS700-2	FGS800-2	-
England	400/17	420/12	500/7	600/7	700/2	800/2	900/2
Poland	ZS3817	ZS4012	ZS4505	ZS6002	ZS7002	ZS8002	ZS9002
			5002
India	SG370/17	SG400/12	SG500/7	SG600/3	SG700/2	SG800/2	-
Romania	-	-	-	-	FGN70-3	-	-
Spain	FGE38-17	FGE42-12	FGE50-7	FGE60-2	FGE70-2	FGE80-2	-
Belgium	FNG38-17	FNG42-12	FNG50-7	FNG60-2	FNG70-2	FNG80-2	-
Australia	300-17	400-12	500-7	600-3	700-2	800-2	-
Sweden	0717-02	-	0727-02	0732-03	0737-01	0864-03	-
Hungary	GV38	GV40	GV50	GV60	GV70	-	-
Bulgaria	380-17	400-12	450-5	600-2	700-2	800-2	900-2
			500-2
(ISO)	400-18	450-10	500-7	600-3	700-2	800-2	900-2
(COPANT)	-	FMNP45007	FMNP55005	FMNP65003	FMNP70002	-	-
Finland	GRP400	-	GRP500	GRP600	GRP700	GRP800	-
Netherland	GN38	GN42	GN50	GN60	GN70	-	-
Luxembourg	FNG38-17	FNG42-12	FNG50-7	FNG60-2	FNG70-2	FNG80-2	-
Austria	SG38	SG42	SG50	SG60	SG70	-	-

Company details:
Xingtai Bossa Machinery Manufacturing Co., Ltd locat in Xingtai high-tech development zone, is a manufacturer that specializes in supplying OEM and ODM casting spare parts for customers since 1991. It covers an area of over 40000 square meters

Our foundry, machining workshop and export department:
Sand casting since 8th May, 1991
Precoated sand casting since 8th May 1996
Lost foam casting since 8th Apr 1999
Mould opening since1999
CNC machining since 8th Sep 2001.
Aluminum die-casting since 2009
Bossa international import & export department since 2012.

Our branches filters factory from years 2000. Produce various of filters for cars and trucks.

FAQ:
1.Are you factory?
Yes, Our factory located in Xingtai High-tech development Zone.
2.What is it your mainly products?
We mainly produce Brake shoe , Brake drum, brake disc, wheel hub, casing, Axle casing, and Axle,Gear box casing, various of casting covers , supports.

All kinds of engine filters..
3.Can you produce others products?
Yes, All the cast iron products just have sample or drawings we could produce.
From 0.5kg-500kg, all the cast iron we could produce. Each year, 70000 tons cast iron products leave our factory and different city of China and overseas.
4.Do you just produce the cast iron material?
No, we could produce cast iron, alunimium, steel etc.
5.Do you have your own casting factory?
Yes, we have, that is why our price so competive in the market.
6.Do you have strictly test and inspection for the products before leave the factory?
Yes, before the products leave factory, For our quality control deparment will inspect the products.
7.How many workers in your facotry?
90 workers in our factory. 17 technicist, 2 engineer. 1 senior engineer.


Welcome inqury, We will provide 24 hours service for you.
