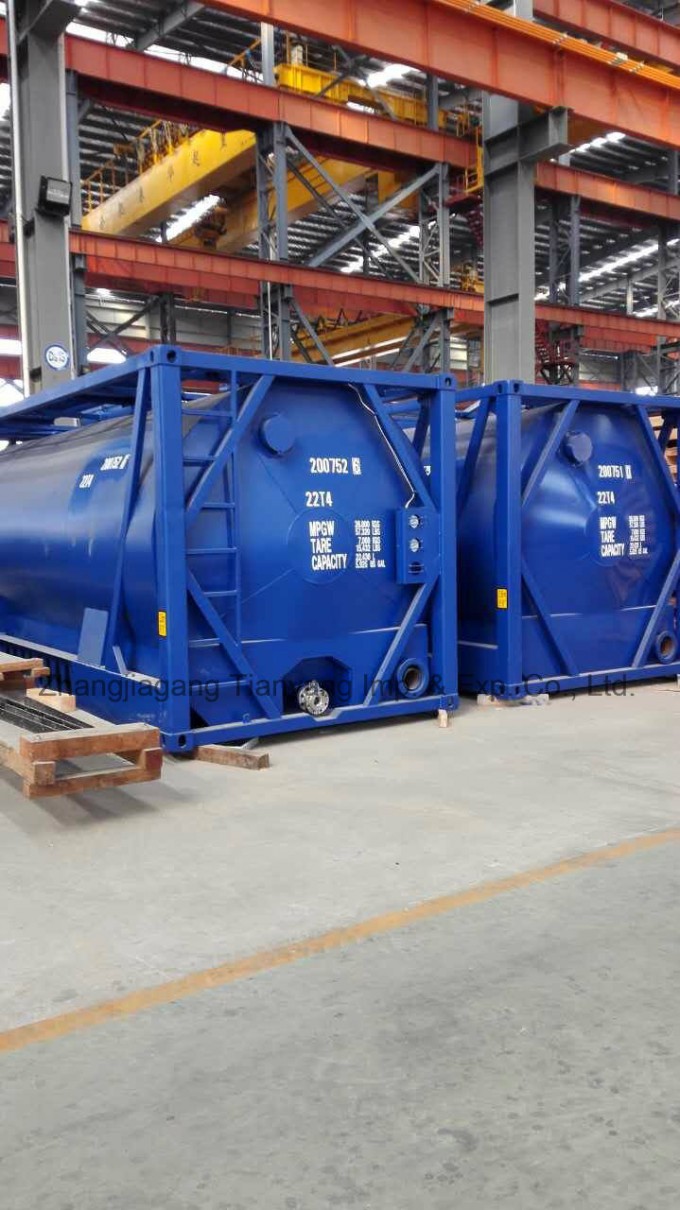

| Designation | 20' THB (TANK ConTAINER FOR BULK BITUMEN) | |
| Designed Working Temp | -20~200ºC |  |
| Dimensions | Length: 20'-0" / 6.058 m Width: 8'-0" / 2.438 m Height: 8'-6" / 2.591 m | |
| Steel Thickness | Cylinder: 8mm Head: 8mm | |
| HeatingPipe | Inside the tank (8" pipes) | |
| Max Capacity | 22'430 liters | |
| Full weight | 26'000 KGS | |
| Empty weight | 7'000 KGS | |
| Manhole | 500 mm | |
| Discharge Valve | 3"stainless steel ball valve | |
| Heating Time | 8 hours | |
| Discharge Temperature | 180ºC | |
| Others | Fully framed unit with corner twist locks and twist lock damage reinforcing plates ISO 1496 Part 3 - Type 70 Classification High Performance factory fitted heating tubes Ideal for Sea, Road & Rail Transportation Loading hole ( front 168mm, middle 500mm, rear 168mm) |
| Ratings | Max Gross Weight: 26'000 Kgs Payload 19'000 Kgs Tare Weight 7'000 Kgs |
| Optional (not included): | BURNERS: Each storage tank requires 2 burners for normal operations. We recommend theuse of Riello G10 Gas Burners or FS10 Fuel Oil Burners or Diesel Burners. The Burners are not included in this offer and may be purchased separatelyTHERMOSTAT & ConTROL SYSTEMTEMPERATURE GAUGE & THERMOMETERPRESURE RELIEF VALVE INSTALLATIonFLEXIBLE & FIXED DISCHARGE PIPES/ HOSESLOADING & DISCHARGE SKID MOUNTED PUMPING MODULEOTHER SOLUTIONS AT CLIENTS REQUEST |
